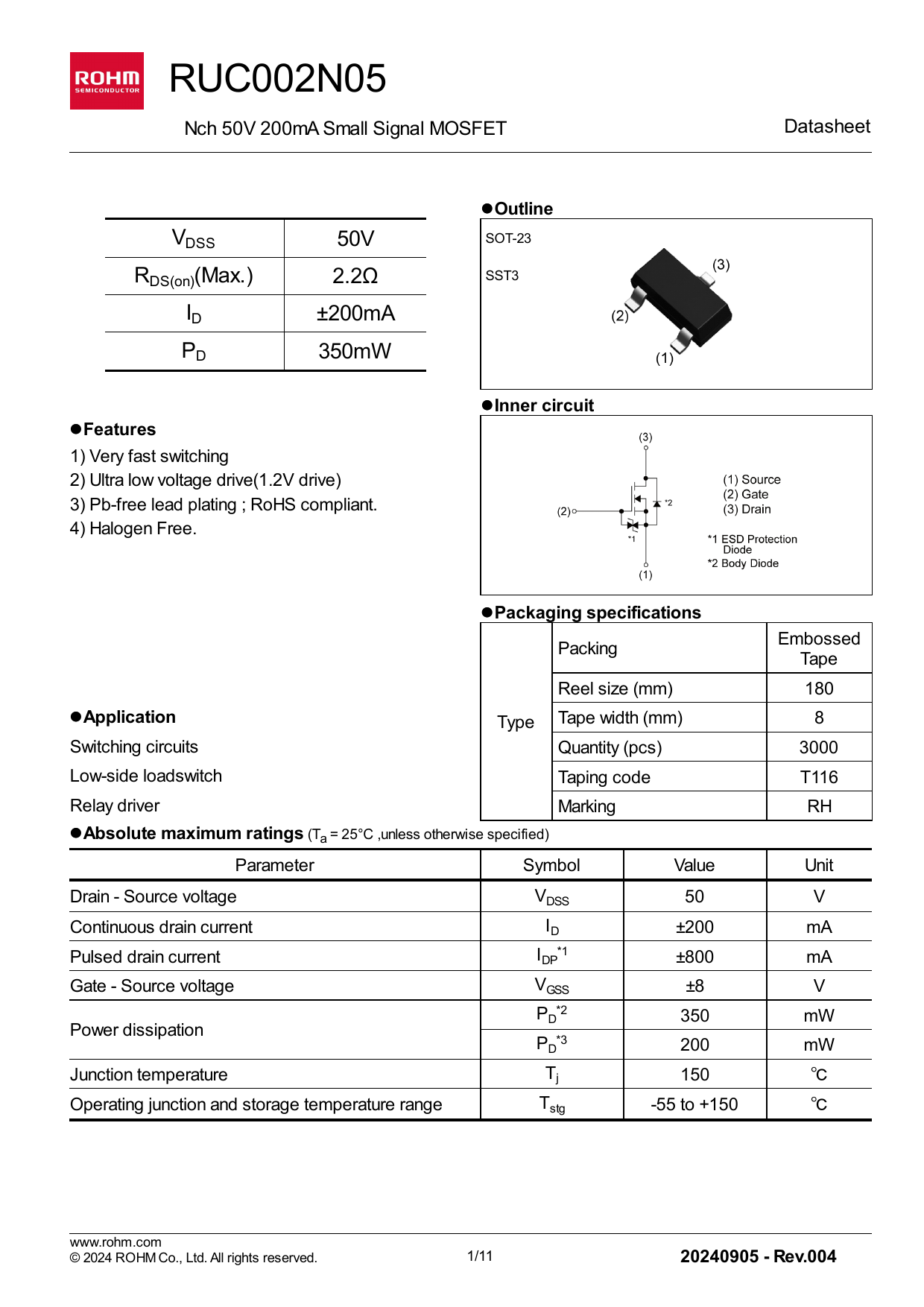

RUC002N05 Nch 50V 200mA Smal Signal MOSFET Datasheet l
Outline
VDSS 50V SOT-23 RDS(on)(Max.) 2.2Ω SST3 ID ±200mA PD 350mW l
Inner circuit
l
Features
1) Very fast switching 2) Ultra low voltage drive(1.2V drive) 3) Pb-free lead plating ; RoHS compliant. 4) Halogen Free. l
Packaging specifications
Embossed Packing Tape Reel size (mm) 180 l
Application
Type Tape width (mm) 8 Switching circuits Quantity (pcs) 3000 Low-side loadswitch Taping code T116 Relay driver Marking RH l
Absolute maximum ratings
(Ta = 25°C ,unless otherwise specified) Parameter Symbol Value Unit Drain - Source voltage VDSS 50 V Continuous drain current ID ±200 mA Pulsed drain current I *1 DP ±800 mA Gate - Source voltage VGSS ±8 V P *2 D 350 mW Power dissipation P *3 D 200 mW Junction temperature Tj 150 ℃ Operating junction and storage temperature range Tstg -55 to +150 ℃ www.rohm.com © 2024 ROHM Co., Ltd. All rights reserved. 1/11
