Datasheet IGB110S101 (Infineon) - 5

Public
CoolGaNT  MTransistor 100 V G3

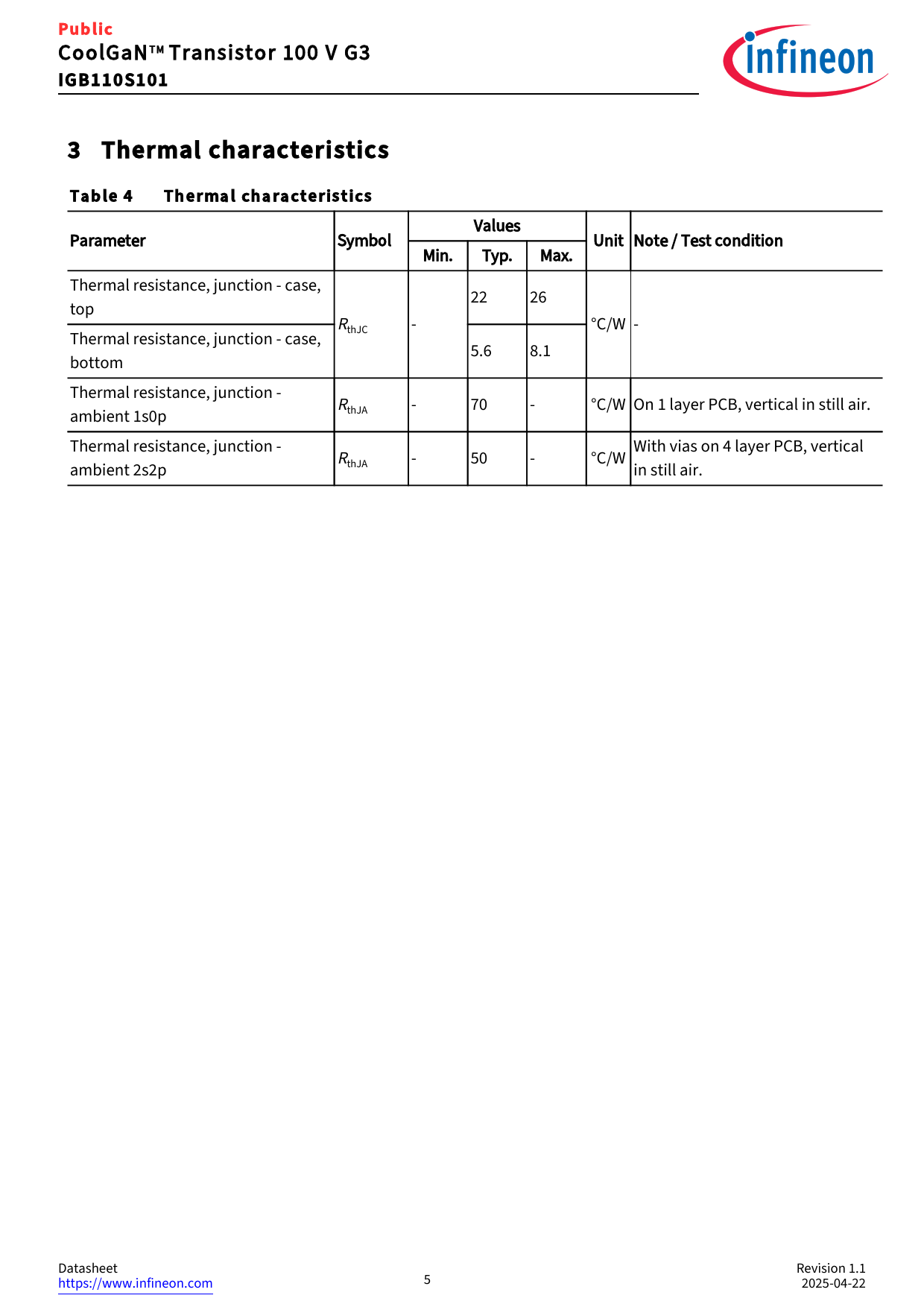

IGB110S101 3   Thermal characteristics Table 4      Thermal characteristics
Values Parameter Symbol Unit Note / Test condition Min. Typ. Max. Thermal resistance, junction ‑ case, top 22 26 RthJC ‑ °C/W ‑ Thermal resistance, junction ‑ case, bottom 5.6 8.1 Thermal resistance, junction ‑  ambient 1s0p RthJA ‑ 70 ‑ °C/W On 1 layer PCB, vertical in still air. Thermal resistance, junction ‑  ambient 2s2p RthJA ‑ 50 ‑ °C/W With vias on 4 layer PCB, vertical  in still air. Datasheet Revision 1.1 https://www.infineon.com 5 2025‑04‑22 Document Outline Description Maximum ratings Recommended operating conditions Thermal characteristics Electrical Characteristics Electrical characteristics diagrams Package outlines Appendix A Revision history Trademarks Disclaimer
