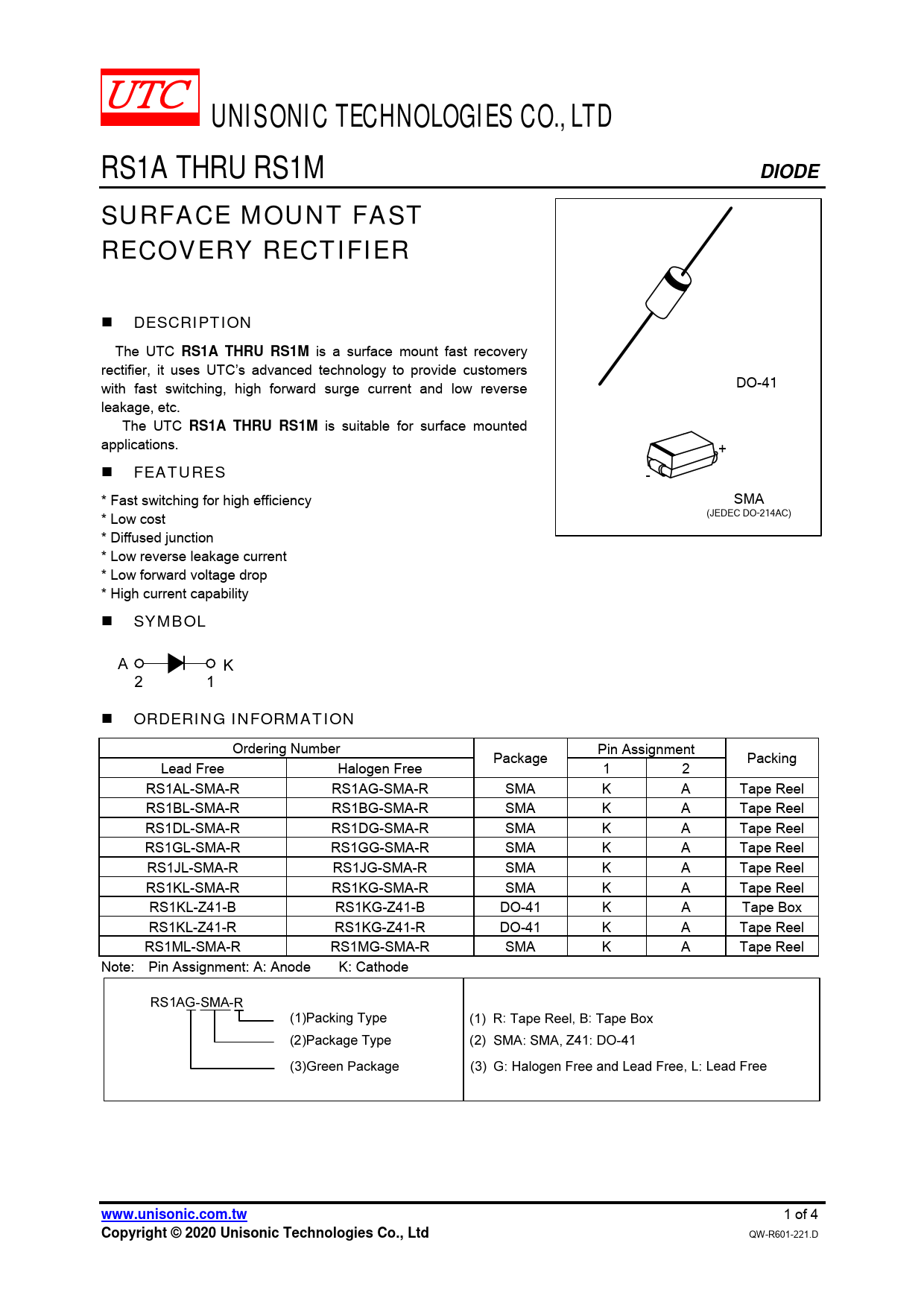

Datasheet RS1A, RS1B, RS1D, RS1G, RS1J, RS1K, RS1M (Unisonic Technologies)

UNISONIC TECHNOLOGIES CO., LTD
RS1A THRU RS1M DIODE SURFACE MOUNT FAST RECOVERY RECTIFIER DESCRIPTION
The UTC
RS1A THRU RS1M
is a surface mount fast recovery rectifier, it uses UTC’s advanced technology to provide customers with fast switching, high forward surge current and low reverse DO-41 leakage, etc. The UTC
RS1A THRU RS1M
is suitable for surface mounted applications. +
FEATURES
- * Fast switching for high efficiency SMA * Low cost (JEDEC DO-214AC) * Diffused junction * Low reverse leakage current * Low forward voltage drop * High current capability
SYMBOL ORDERING INFORMATION
Ordering Number Pin Assignment Package Packing Lead Free Halogen Free 1 2 RS1AL-SMA-R RS1AG-SMA-R SMA K A Tape Reel RS1BL-SMA-R RS1BG-SMA-R SMA K A Tape Reel RS1DL-SMA-R RS1DG-SMA-R SMA K A Tape Reel RS1GL-SMA-R RS1GG-SMA-R SMA K A Tape Reel RS1JL-SMA-R RS1JG-SMA-R SMA K A Tape Reel RS1KL-SMA-R RS1KG-SMA-R SMA K A Tape Reel RS1KL-Z41-B RS1KG-Z41-B DO-41 K A Tape Box RS1KL-Z41-R RS1KG-Z41-R DO-41 K A Tape Reel RS1ML-SMA-R RS1MG-SMA-R SMA K A Tape Reel Note: Pin Assignment: A: Anode K: Cathode
www.unisonic.com.tw
1 of 4
Copyright © 2020 Unisonic Technologies Co., Ltd
QW-R601-221.D
