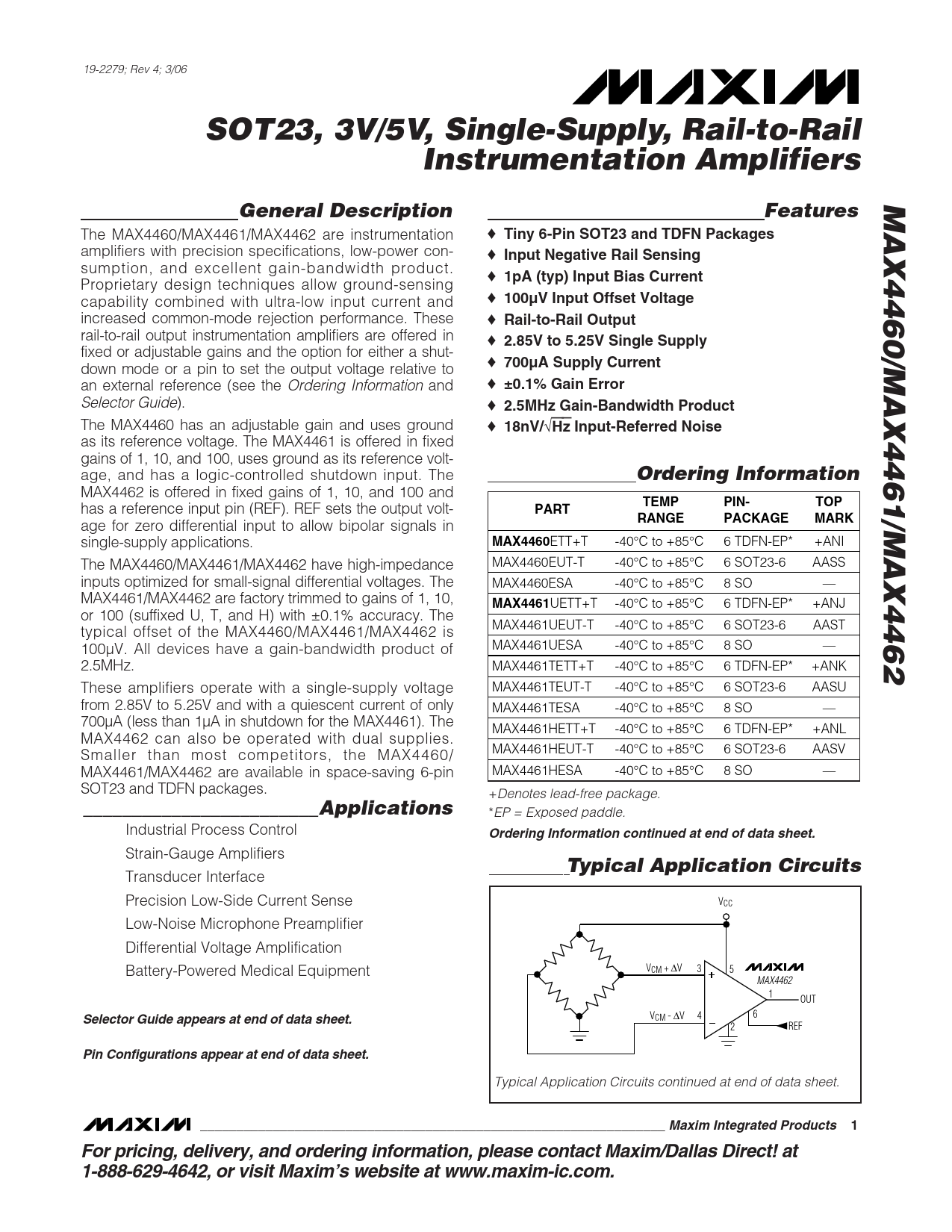

19-2279; Rev 4; 3/06
SOT23, 3V/5V, Single-Supply, Rail-to-Rail Instrumentation Amplifiers MAX4460/MAX4461/MAX4462 General Description Features
The MAX4460/MAX4461/MAX4462 are instrumentation ♦
Tiny 6-Pin SOT23 and TDFN Packages
amplifiers with precision specifications, low-power con- ♦
Input Negative Rail Sensing
sumption, and excellent gain-bandwidth product. ♦
1pA (typ) Input Bias Current
Proprietary design techniques allow ground-sensing capability combined with ultra-low input current and ♦
100µV Input Offset Voltage
increased common-mode rejection performance. These ♦
Rail-to-Rail Output
rail-to-rail output instrumentation amplifiers are offered in ♦
2.85V to 5.25V Single Supply
fixed or adjustable gains and the option for either a shut- ♦ down mode or a pin to set the output voltage relative to
700µA Supply Current
an external reference (see the Ordering Information and ♦
±0.1% Gain Error
Selector Guide). ♦
2.5MHz Gain-Bandwidth Product
The MAX4460 has an adjustable gain and uses ground ♦
18nV/
√Hz
Input-Referred Noise
as its reference voltage. The MAX4461 is offered in fixed gains of 1, 10, and 100, uses ground as its reference volt- age, and has a logic-controlled shutdown input. The
Ordering Information
MAX4462 is offered in fixed gains of 1, 10, and 100 and
TEMP PIN- TOP
has a reference input pin (REF). REF sets the output volt-
PART RANGE PACKAGE MARK
age for zero differential input to allow bipolar signals in single-supply applications.
MAX4460
ETT+T -40°C to +85°C 6 TDFN-EP* +ANI The MAX4460/MAX4461/MAX4462 have high-impedance MAX4460EUT-T -40°C to +85°C 6 SOT23-6 AASS inputs optimized for small-signal differential voltages. The MAX4460ESA -40°C to +85°C 8 SO — MAX4461/MAX4462 are factory trimmed to gains of 1, 10,
MAX4461
UETT+T -40°C to +85°C 6 TDFN-EP* +ANJ or 100 (suffixed U, T, and H) with ±0.1% accuracy. The MAX4461UEUT-T -40°C to +85°C 6 SOT23-6 AAST typical offset of the MAX4460/MAX4461/MAX4462 is 100µV. All devices have a gain-bandwidth product of MAX4461UESA -40°C to +85°C 8 SO — 2.5MHz. MAX4461TETT+T -40°C to +85°C 6 TDFN-EP* +ANK These amplifiers operate with a single-supply voltage MAX4461TEUT-T -40°C to +85°C 6 SOT23-6 AASU from 2.85V to 5.25V and with a quiescent current of only MAX4461TESA -40°C to +85°C 8 SO — 700µA (less than 1µA in shutdown for the MAX4461). The MAX4461HETT+T -40°C to +85°C 6 TDFN-EP* +ANL MAX4462 can also be operated with dual supplies. Smaller than most competitors, the MAX4460/ MAX4461HEUT-T -40°C to +85°C 6 SOT23-6 AASV MAX4461/MAX4462 are available in space-saving 6-pin MAX4461HESA -40°C to +85°C 8 SO — SOT23 and TDFN packages. +Denotes lead-free package.
________________________Applications
*EP = Exposed paddle. Industrial Process Control
Ordering Information continued at end of data sheet.
Strain-Gauge Amplifiers
Typical Application Circuits
Transducer Interface Precision Low-Side Current Sense VCC Low-Noise Microphone Preamplifier Differential Voltage Amplification Battery-Powered Medical Equipment VCM + ∆V 3 5 MAX4462 1 OUT VCM - ∆V 4 6
Selector Guide appears at end of data sheet.
2 REF
Pin Configurations appear at end of data sheet.
Typical Application Circuits continued at end of data sheet.
________________________________________________________________ Maxim Integrated Products 1 For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at 1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.
