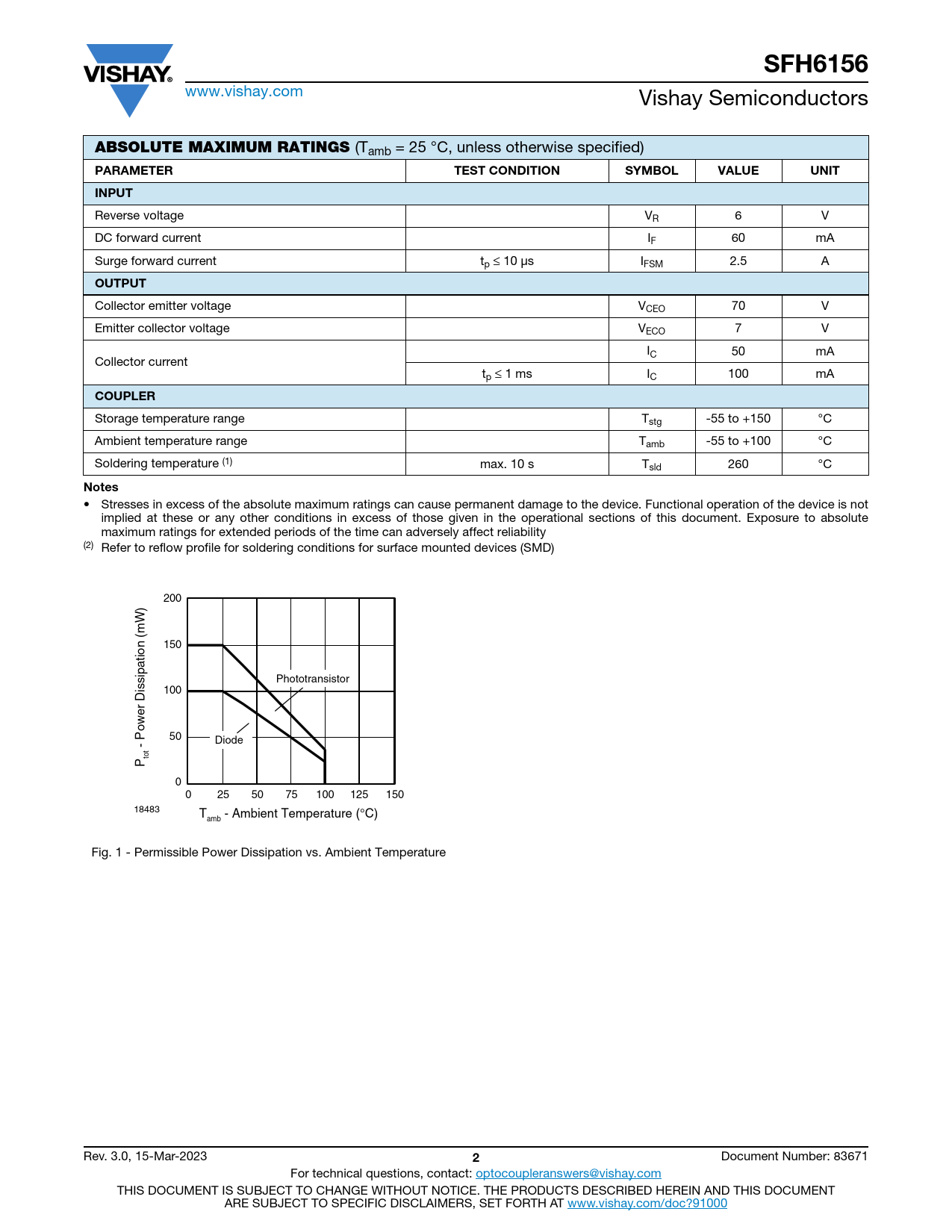

SFH6156 www.vishay.com Vishay Semiconductors ABSOLUTE MAXIMUM RATINGS (Tamb = 25 °C, unless otherwise specified) PARAMETERTEST CONDITIONSYMBOLVALUEUNITINPUT Reverse voltage VR 6 V DC forward current IF 60 mA Surge forward current tp ≤ 10 μs IFSM 2.5 A OUTPUT Collector emitter voltage VCEO 70 V Emitter collector voltage VECO 7 V IC 50 mA Collector current tp ≤ 1 ms IC 100 mA COUPLER Storage temperature range Tstg -55 to +150 °C Ambient temperature range Tamb -55 to +100 °C Soldering temperature (1) max. 10 s Tsld 260 °C Notes • Stresses in excess of the absolute maximum ratings can cause permanent damage to the device. Functional operation of the device is not implied at these or any other conditions in excess of those given in the operational sections of this document. Exposure to absolute maximum ratings for extended periods of the time can adversely affect reliability (2) Refer to reflow profile for soldering conditions for surface mounted devices (SMD) 200 150 Phototransistor 100 50 Diode - Power Dissipation (mW) tot P 0 0 25 50 75 100 125 150 18483 T - Ambient Temperature (°C) amb Fig. 1 - Permissible Power Dissipation vs. Ambient Temperature Rev. 3.0, 15-Mar-2023 2 Document Number: 83671 For technical questions, contact: optocoupleranswers@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
