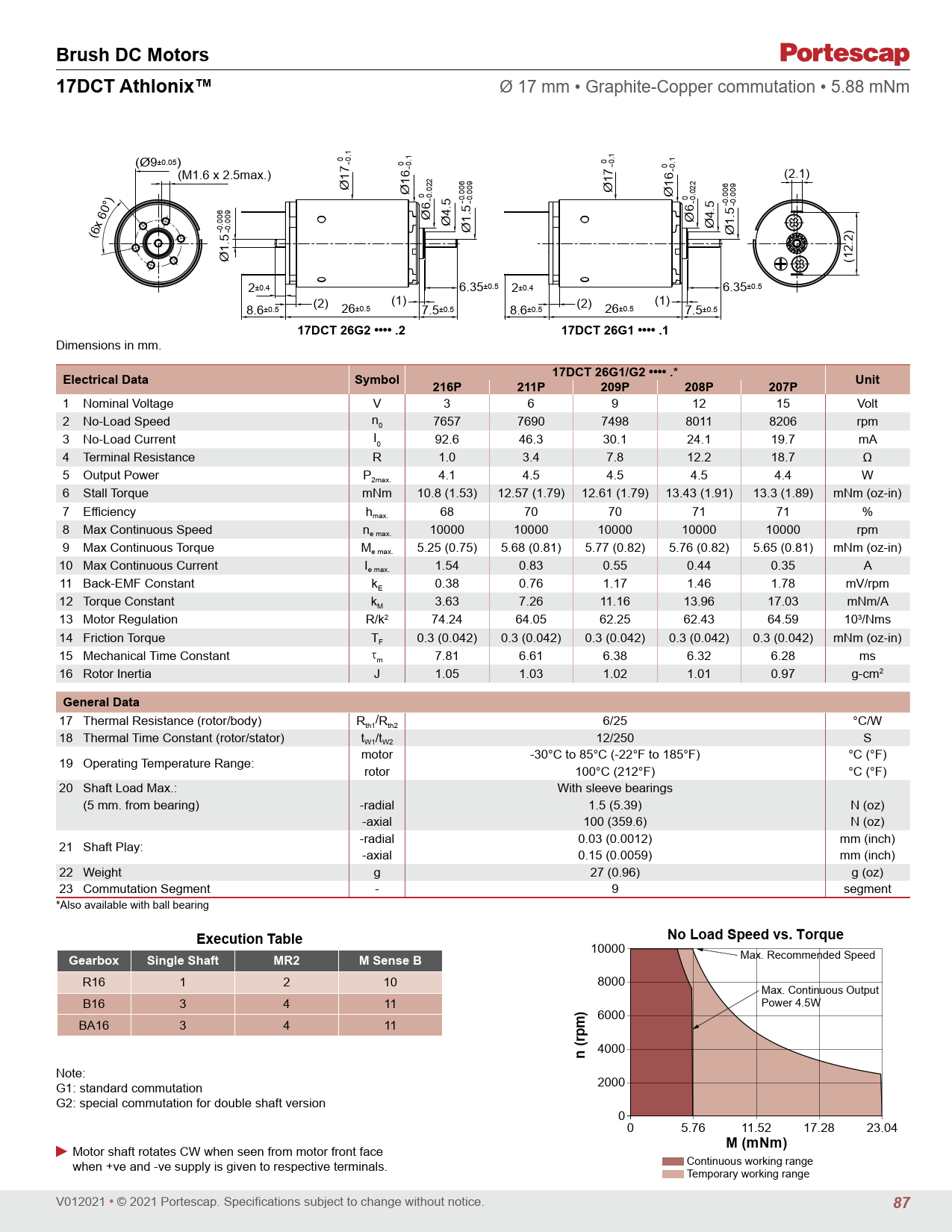

Datasheet 17DCT Athlonix (Portescap)

Brush DC Motors 17DCT Athlonix™
Ø 17 mm • Graphite-Copper commutation • 5.88 mNm 0 -0.1 (Ø9±0.05) 0 -0.1 (M1.6 x 2.5max.) 0 -0.1 17 0 -0.1 (2.1) Ø 16 17 Ø Ø 16 Ø °) 0 -0.022 -0.006 -0.009 6 0 -0.022 -0.006 -0.009 Ø 4.5 6 1.5 Ø Ø 4.5 1.5 Ø (6x 60 -0.006 -0.009 Ø Ø 1.5 Ø (12.2) 6.35±0.5 2±0.4 6.35±0.5 2±0.4 (2) (1) 8.6 (2) (1) ±0.5 26±0.5 7.5±0.5 8.6±0.5 26±0.5 7.5±0.5
17DCT 26G2 •••• .2 17DCT 26G1 •••• .1
Dimensions in mm.
Electrical Data Symbol 17DCT 26G1/G2 •••• .* Unit 216P 211P 209P 208P 207P
1 Nominal Voltage V 3 6 9 12 15 Volt 2 No-Load Speed n0 7657 7690 7498 8011 8206 rpm 3 No-Load Current I0 92.6 46.3 30.1 24.1 19.7 mA 4 Terminal Resistance R 1.0 3.4 7.8 12.2 18.7 Ω 5 Output Power P2max. 4.1 4.5 4.5 4.5 4.4 W 6 Stall Torque mNm 10.8 (1.53) 12.57 (1.79) 12.61 (1.79) 13.43 (1.91) 13.3 (1.89) mNm (oz-in) 7 Efficiency hmax. 68 70 70 71 71 % 8 Max Continuous Speed ne max. 10000 10000 10000 10000 10000 rpm 9 Max Continuous Torque Me max. 5.25 (0.75) 5.68 (0.81) 5.77 (0.82) 5.76 (0.82) 5.65 (0.81) mNm (oz-in) 10 Max Continuous Current Ie max. 1.54 0.83 0.55 0.44 0.35 A 11 Back-EMF Constant kE 0.38 0.76 1.17 1.46 1.78 mV/rpm 12 Torque Constant kM 3.63 7.26 11.16 13.96 17.03 mNm/A 13 Motor Regulation R/k2 74.24 64.05 62.25 62.43 64.59 103/Nms 14 Friction Torque TF 0.3 (0.042) 0.3 (0.042) 0.3 (0.042) 0.3 (0.042) 0.3 (0.042) mNm (oz-in) 15 Mechanical Time Constant τm 7.81 6.61 6.38 6.32 6.28 ms 16 Rotor Inertia J 1.05 1.03 1.02 1.01 0.97 g-cm2
General Data
17 Thermal Resistance (rotor/body) R / th1 Rth2 6/25 °C/W 18 Thermal Time Constant (rotor/stator) tW1/tW2 12/250 S 19 Operating Temperature Range: motor -30°C to 85°C (-22°F to 185°F) °C (°F) rotor 100°C (212°F) °C (°F) 20 Shaft Load Max.: With sleeve bearings (5 mm. from bearing) -radial 1.5 (5.39) N (oz) -axial 100 (359.6) N (oz) 21 Shaft Play: -radial 0.03 (0.0012) mm (inch) -axial 0.15 (0.0059) mm (inch) 22 Weight g 27 (0.96) g (oz) 23 Commutation Segment - 9 segment *Also available with ball bearing
Execution Table No Load Speed vs. Torque
10000
Gearbox Single Shaft MR2 M Sense B
Max. Recommended Speed R16 1 2 10 8000 Max. Continuous Output B16 3 4 11
)
Power 4.5W 6000 BA16 3 4 11
n (rpm
4000 Note: G1: standard commutation 2000 G2: special commutation for double shaft version 0 0 5.76 11.52 17.28 23.04 Motor shaft rotates CW when seen from motor front face
M (mNm)
when +ve and -ve supply is given to respective terminals. Continuous working range Temporary working range V012021
•
© 2021 Portescap. Specifications subject to change without notice.
87
