Datasheet BF240, BF241 (New Jersey Semiconductor)

HerstellerNew Jersey Semiconductor
BeschreibungNPN Silicon Epitaxial Planar Transistors
Seiten / Seite2 / 1 — ,J 20 STERN AVE. SPRINGFIELD, NEW JERSEY 07081. U.S.A. TELEPHONE: (973) …
Dateiformat / GrößePDF / 65 Kb
DokumentenspracheEnglisch

,J 20 STERN AVE. SPRINGFIELD, NEW JERSEY 07081. U.S.A. TELEPHONE: (973) 376-2922. (212)227-6005

Datasheet BF240, BF241 New Jersey Semiconductor

Modelllinie für dieses Datenblatt

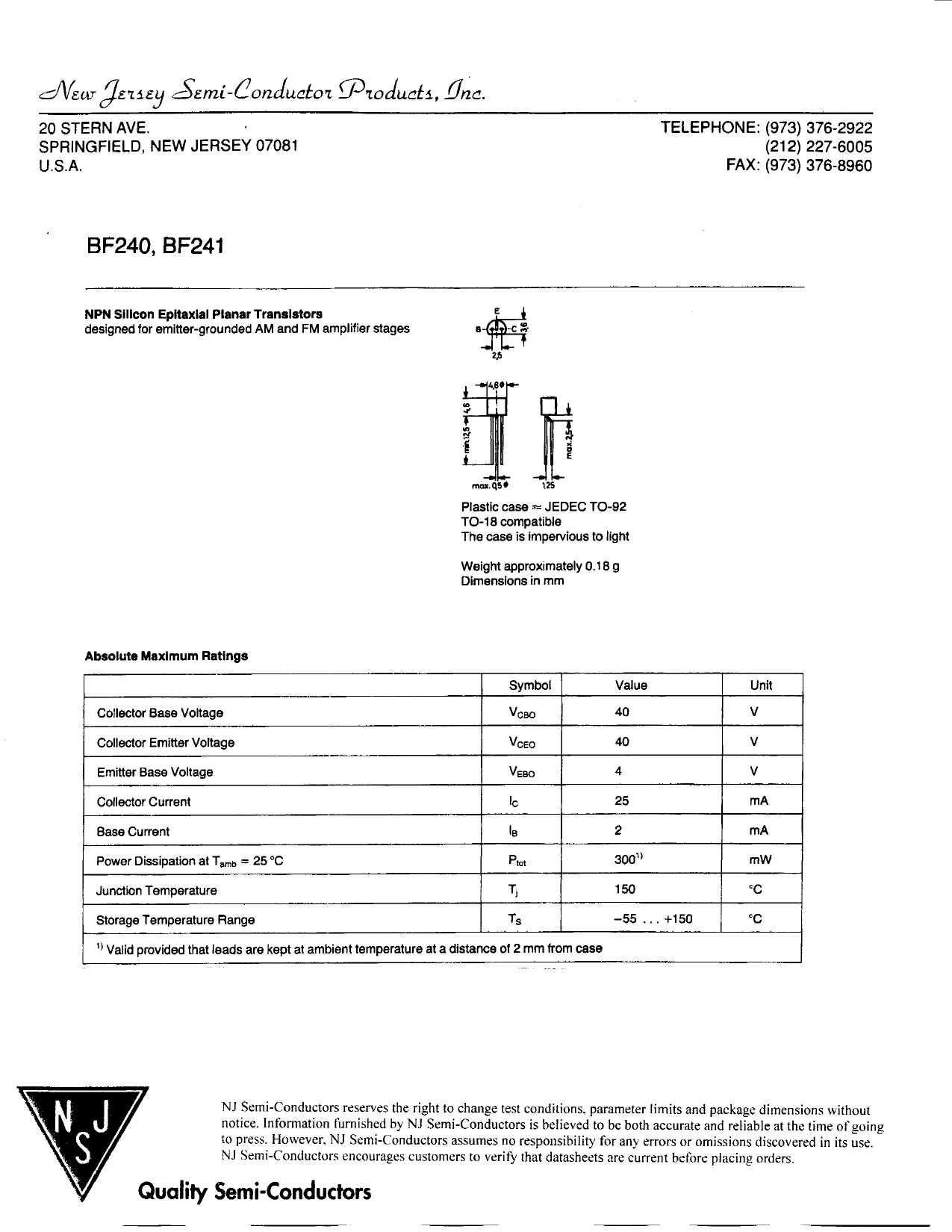

Textversion des Dokuments

,J 20 STERN AVE.
SPRINGFIELD, NEW JERSEY 07081
U.S.A. TELEPHONE: (973) 376-2922
(212)227-6005
FAX: (973) 376-8960 BF240, BF241
NPN Silicon Epitaxial Planar Transistors
designed for emitter-grounded AM and FM amplifier stages I* max. Q5 # Plastic case = JEDEC TO-92
TO-18 compatible
The case is impervious to light
Weight approximately 0.18 g
Dimensions in mm Absolute Maximum Ratings
Symbol Value Unit Collector Base Voltage VCBO 40 V Collector Emitter Voltage VCEO 40 V Emitter Base Voltage VEBO 4 V Collector Current lo 25 mA Base Current IB 2 mA Power Dissipation at Tamb = 25 °C P« 3001' mW Junction Temperature T] 150 CC Storage Temperature Range Ts -55 +150 'C " Valid provided that leads are kept at ambient temperature at a distance ot 2 mm from case NJ Semi-Conductors reserves the right to change test conditions, parameter limits and package dimensions without
notice. Information furnished by NJ Semi-Conductors is believed to be both accurate and reliable at the time of going
to press. However, NJ Semi-Conductors assumes no responsibility for any errors or omissions discovered in its use.
NJ Semi-Conductors encourages customers to verify that datasheets are current before placing orders. Quality Semi-Conductors
