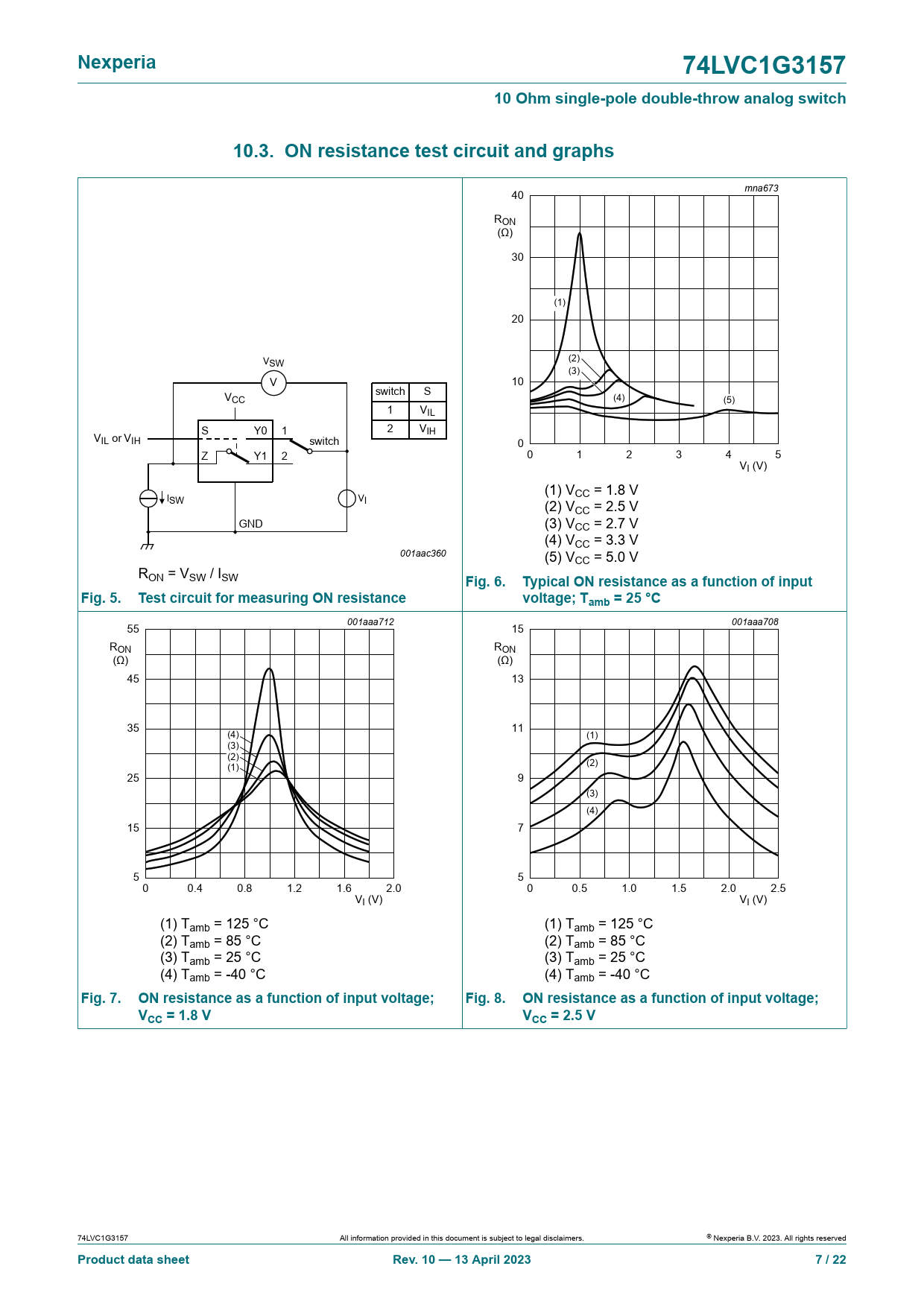

Nexperia. 74LVC1G3157. 10 Ohm single-pole double-throw analog switch. 10.3. ON resistance test circuit and graphs
Modelllinie für dieses Datenblatt
Textversion des Dokuments
Nexperia 74LVC1G3157 10 Ohm single-pole double-throw analog switch 10.3. ON resistance test circuit and graphs
mna673 40 RON (Ω) 30 (1) 20 VSW (2) (3) V 10 V switch S CC (4) (5) 1 VIL S Y0 1 2 VIH VIL or VIH switch 0 Z Y1 2 0 1 2 3 4 5 VI (V) (1) V I CC = 1.8 V SW VI (2) VCC = 2.5 V GND (3) VCC = 2.7 V (4) VCC = 3.3 V 001aac360 (5) VCC = 5.0 V RON = VSW / ISW
Fig. 6. Typical ON resistance as a function of input Fig. 5. Test circuit for measuring ON resistance voltage; Tamb = 25 °C
001aaa712 55 001aaa708 15 RON RON (Ω) (Ω) 45 13 35 11 (4) (1) (3) (2) (1) (2) 25 9 (3) (4) 15 7 5 5 0 0.4 0.8 1.2 1.6 2.0 0 0.5 1.0 1.5 2.0 2.5 VI (V) VI (V) (1) Tamb = 125 °C (1) Tamb = 125 °C (2) Tamb = 85 °C (2) Tamb = 85 °C (3) Tamb = 25 °C (3) Tamb = 25 °C (4) Tamb = -40 °C (4) Tamb = -40 °C
Fig. 7. ON resistance as a function of input voltage; Fig. 8. ON resistance as a function of input voltage; VCC = 1.8 V VCC = 2.5 V
74LVC1G3157 All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2023. Al rights reserved
Product data sheet Rev. 10 — 13 April 2023 7 / 22
