Datasheet PM2E (Prolight) - 8
| Hersteller | Prolight |
| Beschreibung | 3W Power LED |
| Seiten / Seite | 20 / 8 — Dominant Wavelength Bin Structure. Minimum Dominant. Maximum Dominant. … |
| Dateiformat / Größe | PDF / 683 Kb |
| Dokumentensprache | Englisch |

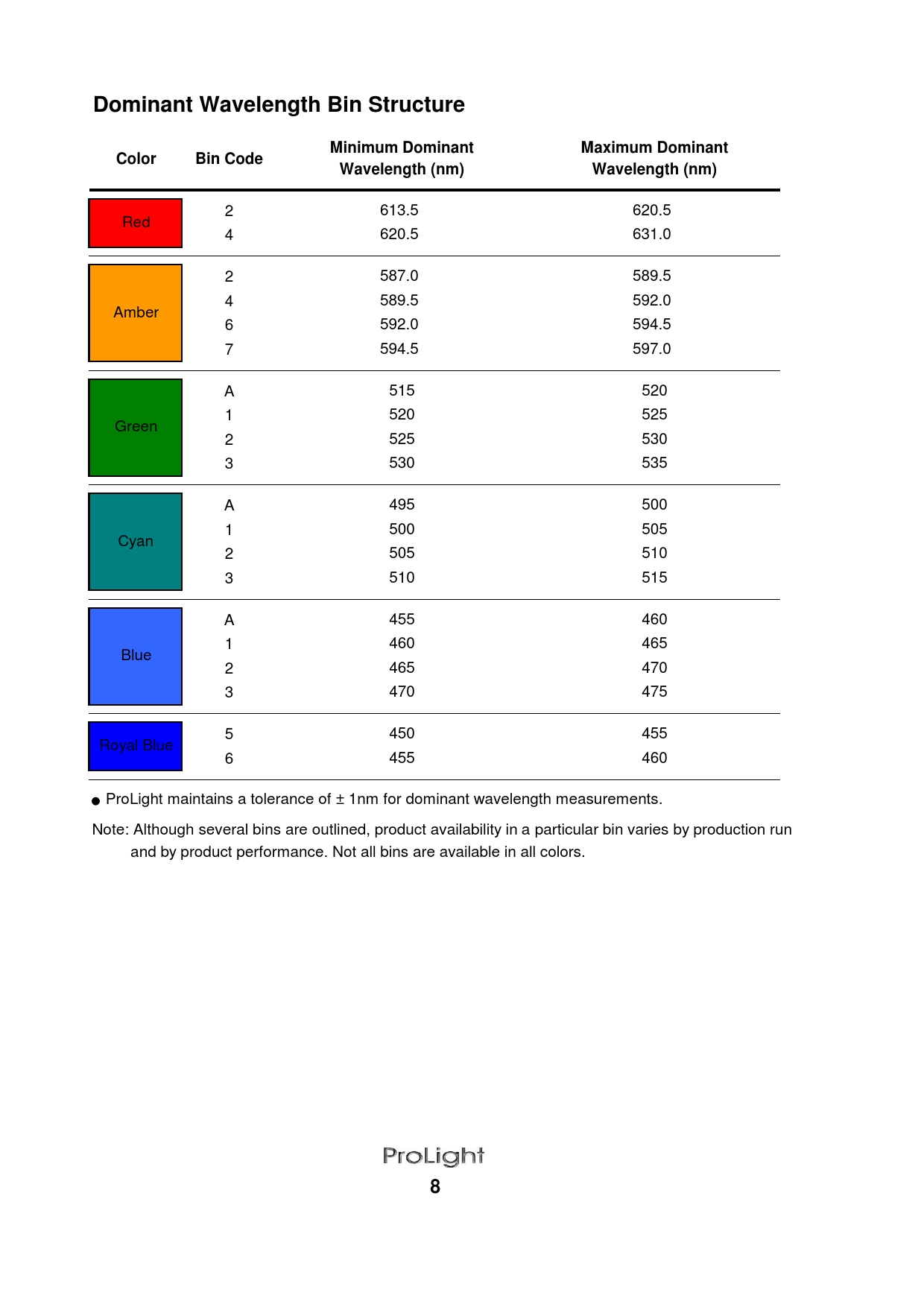

Dominant Wavelength Bin Structure. Minimum Dominant. Maximum Dominant. Color. Bin Code. Wavelength (nm)
Modelllinie für dieses Datenblatt
Textversion des Dokuments
Dominant Wavelength Bin Structure Minimum Dominant Maximum Dominant Color Bin Code Wavelength (nm) Wavelength (nm)
2 613.5 620.5 Red 4 620.5 631.0 2 587.0 589.5 4 589.5 592.0 Amber 6 592.0 594.5 7 594.5 597.0 A 515 520 1 520 525 Green 2 525 530 3 530 535 A 495 500 1 500 505 Cyan 2 505 510 3 510 515 A 455 460 1 460 465 Blue 2 465 470 3 470 475 5 450 455 Royal Blue 6 455 460 ● ProLight maintains a tolerance of ± 1nm for dominant wavelength measurements. Note: Although several bins are outlined, product availability in a particular bin varies by production run and by product performance. Not all bins are available in all colors.
8
