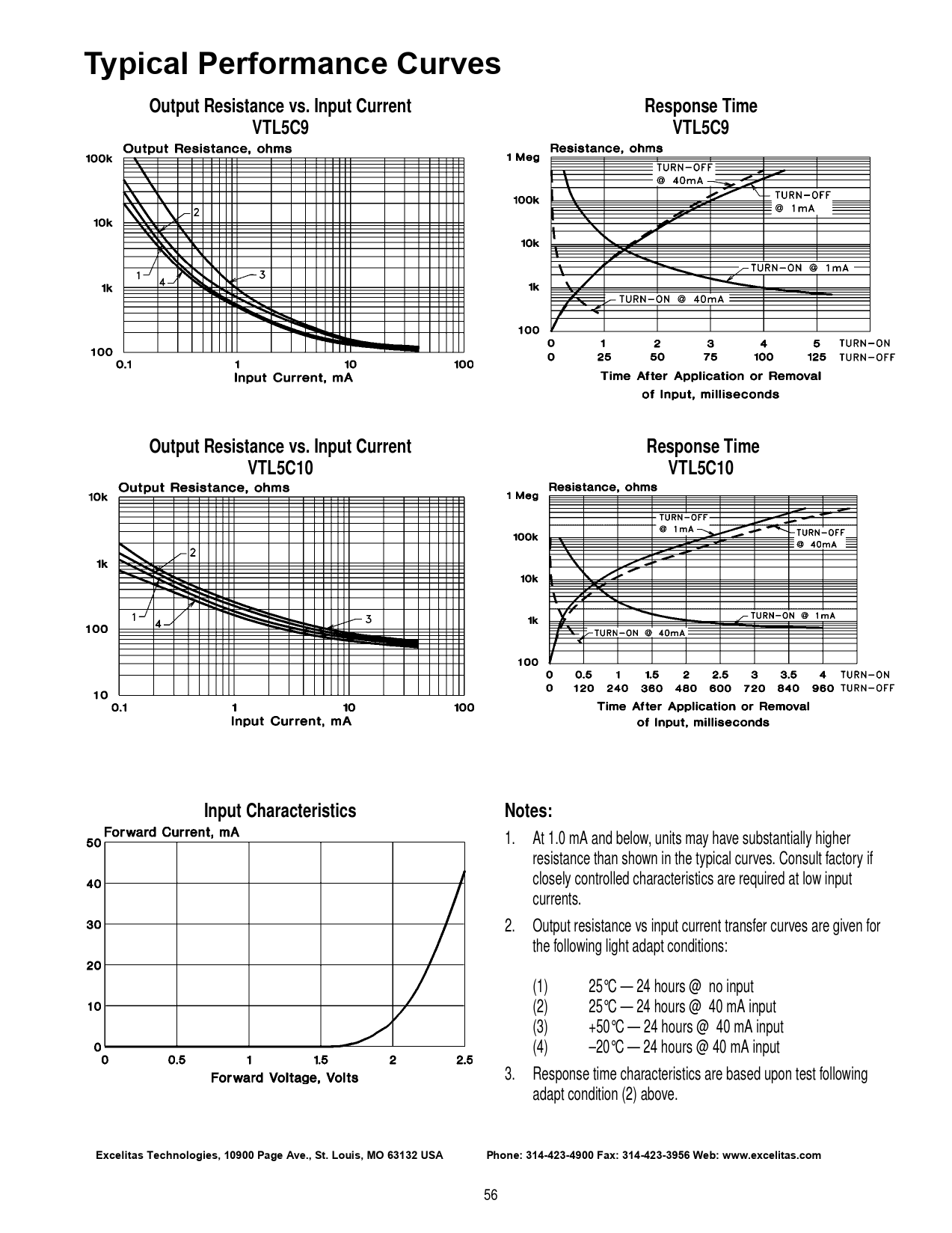

Typical Performance Curves. Output Resistance vs. Input Current. Response Time. VTL5C9. VTL5C10. Input Characteristics. Notes:
Modelllinie für dieses Datenblatt
Textversion des Dokuments
Typical Performance Curves Output Resistance vs. Input Current Response Time VTL5C9 VTL5C9 Output Resistance vs. Input Current Response Time VTL5C10 VTL5C10 Input Characteristics Notes:
1. At 1.0 mA and below, units may have substantially higher resistance than shown in the typical curves. Consult factory if closely control ed characteristics are required at low input currents. 2. Output resistance vs input current transfer curves are given for the following light adapt conditions: (1) 25°C — 24 hours @ no input (2) 25°C — 24 hours @ 40 mA input (3) +50°C — 24 hours @ 40 mA input (4) –20°C — 24 hours @ 40 mA input 3. Response time characteristics are based upon test fol owing adapt condition (2) above.
Excelitas Technologies, 10900 Page Ave., St. Louis, MO 63132 USA Phone: 314-423-4900 Fax: 314-423-3956 Web: www.excelitas.com
56
1. At 1.0 mA and below, units may have substantially higher resistance than shown in the typical curves. Consult factory if closely control ed characteristics are required at low input currents. 2. Output resistance vs input current transfer curves are given for the following light adapt conditions: (1) 25°C — 24 hours @ no input (2) 25°C — 24 hours @ 40 mA input (3) +50°C — 24 hours @ 40 mA input (4) –20°C — 24 hours @ 40 mA input 3. Response time characteristics are based upon test fol owing adapt condition (2) above.
Excelitas Technologies, 10900 Page Ave., St. Louis, MO 63132 USA Phone: 314-423-4900 Fax: 314-423-3956 Web: www.excelitas.com
56
