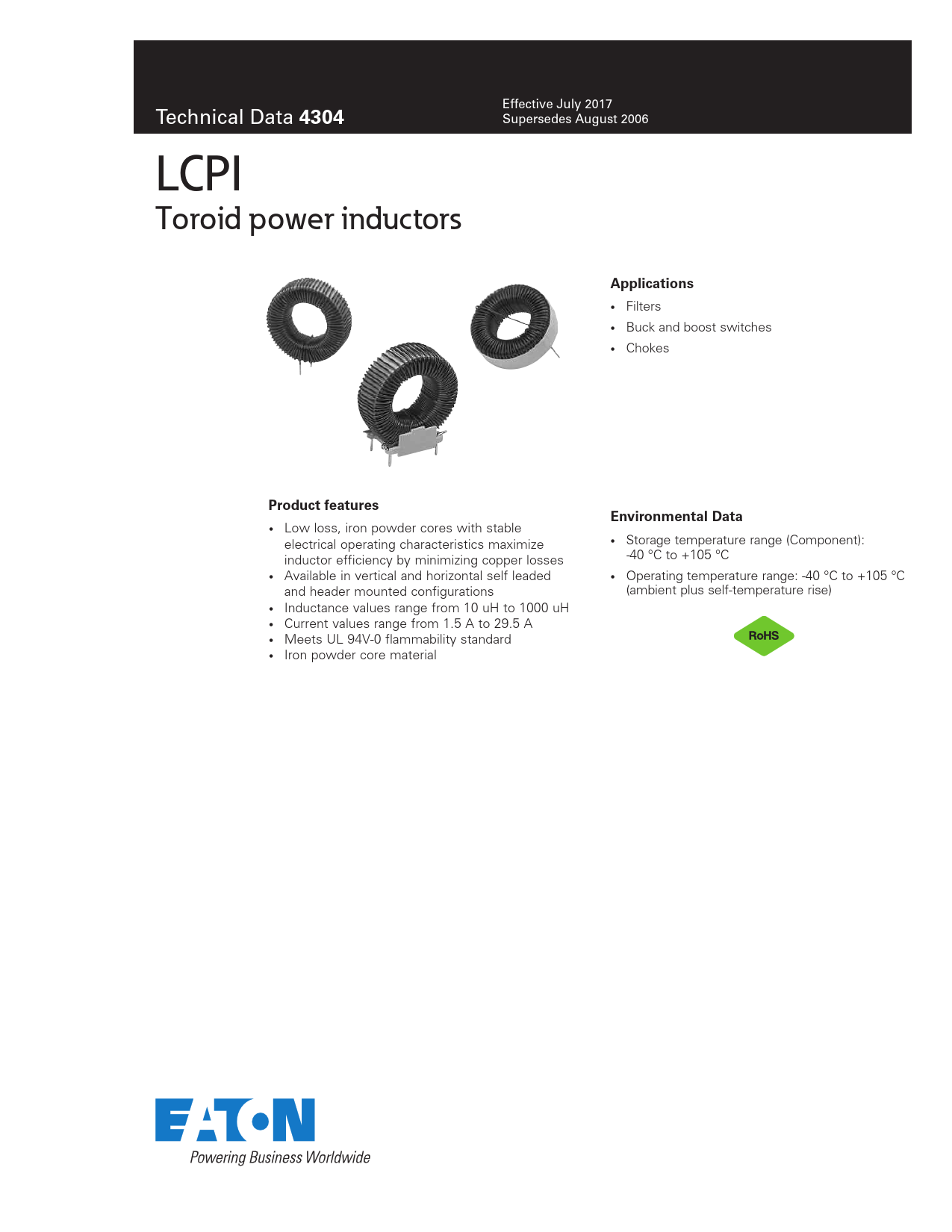

Effective July 2017 Technical Data
4304
Supersedes August 2006 LCPI Toroid power inductors
Applications
• Filters • Buck and boost switches • Chokes
Product features Environmental Data
• Low loss, iron powder cores with stable electrical operating characteristics maximize • Storage temperature range (Component): inductor efficiency by minimizing copper losses -40 °C to +105 °C • Available in vertical and horizontal self leaded • Operating temperature range: -40 °C to +105 °C and header mounted configurations (ambient plus self-temperature rise) • Inductance values range from 10 uH to 1000 uH • Current values range from 1.5 A to 29.5 A • Meets UL 94V-0 flammability standard • Iron powder core material Document Outline Blank Page
