NXP Semiconductors. PEMD12; PUMD12. NPN/PNP resistor-equipped transistors; R1 = 47 k. , R2 = 47 k

NXP Semiconductors PEMD12; PUMD12 NPN/PNP resistor-equipped transistors; R1 = 47 k , R2 = 47 k

Modelllinie für dieses Datenblatt

Textversion des Dokuments

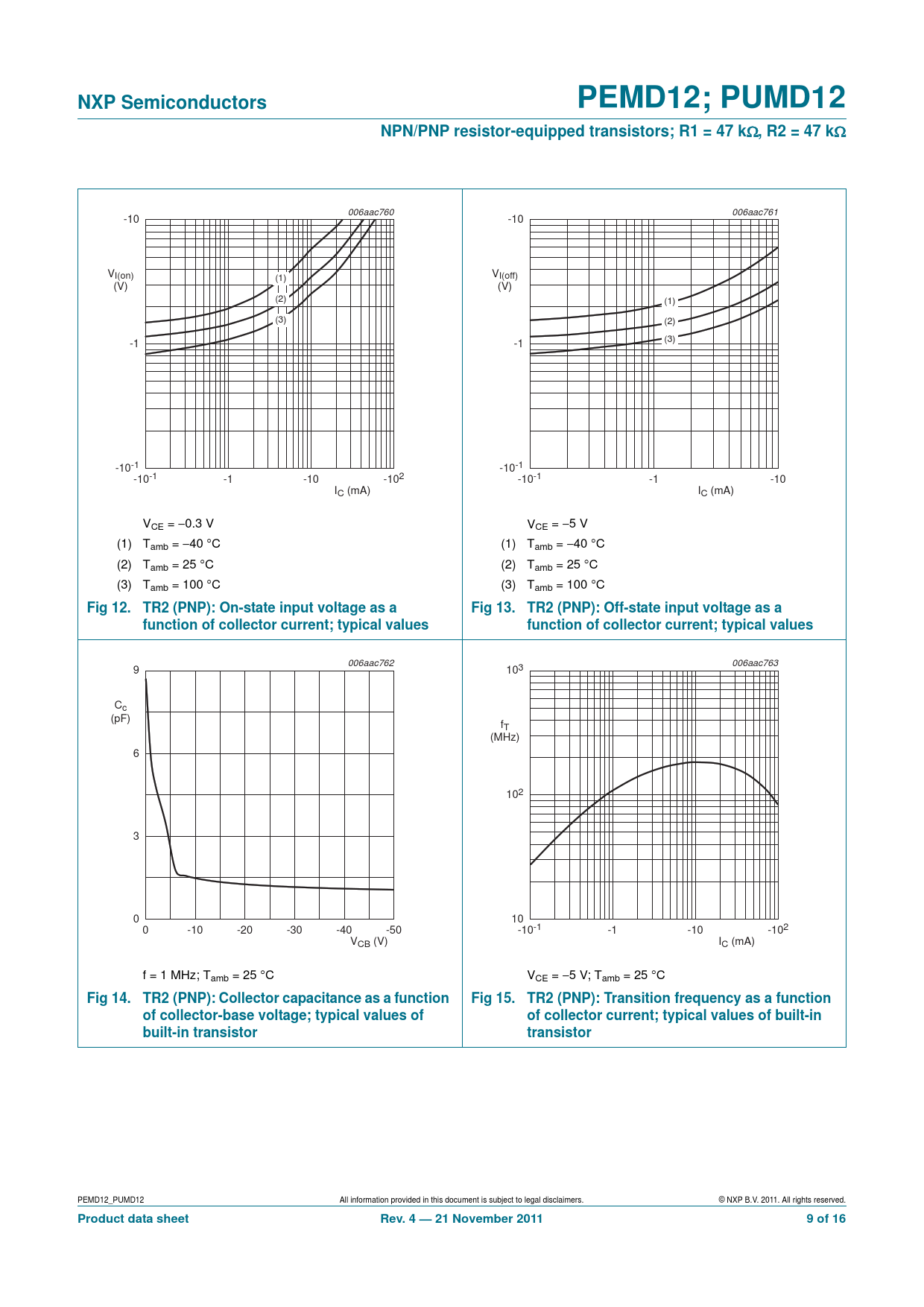

NXP Semiconductors PEMD12; PUMD12 NPN/PNP resistor-equipped transistors; R1 = 47 k , R2 = 47 k
006aac760 006aac761 -10 -10 VI(on) (1) VI(off) (V) (V) (2) (1) (3) (2) -1 -1 (3) -10-1 -10-1 -10-1 -1 -102 -10 -10-1 -1 -10 IC (mA) IC (mA) VCE = 0.3 V VCE = 5 V (1) Tamb = 40 C (1) Tamb = 40 C (2) Tamb = 25 C (2) Tamb = 25 C (3) Tamb = 100 C (3) Tamb = 100 C
Fig 12. TR2 (PNP): On-state input voltage as a Fig 13. TR2 (PNP): Off-state input voltage as a function of collector current; typical values function of collector current; typical values
006aac762 006aac763 9 103 Cc (pF) fT (MHz) 6 102 3 0 10 0 -10 -20 -30 -40 -50 -10-1 -1 -102 -10 VCB (V) IC (mA) f = 1 MHz; Tamb = 25 C VCE = 5 V; Tamb = 25 C
Fig 14. TR2 (PNP): Collector capacitance as a function Fig 15. TR2 (PNP): Transition frequency as a function of collector-base voltage; typical values of of collector current; typical values of built-in built-in transistor transistor
PEMD12_PUMD12 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2011. All rights reserved.
Product data sheet Rev. 4 — 21 November 2011 9 of 16
