SMD Power Inductor

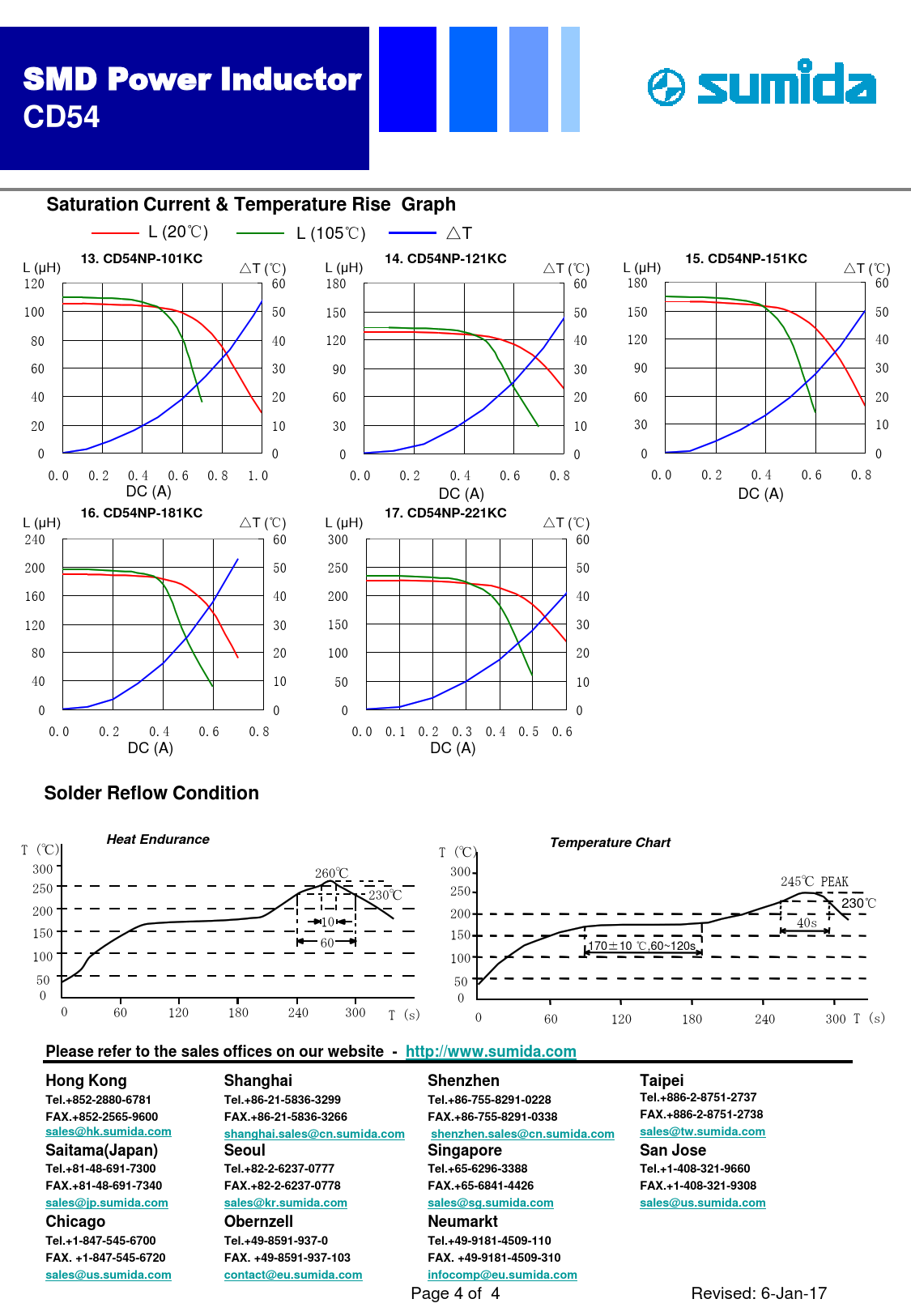

CD54 Saturation Current & Temperature Rise Graph
L (20℃) L (105℃) △T
13. CD54NP-101KC 14. CD54NP-121KC 15. CD54NP-151KC
L (μH) △T (℃) L (μH) △T (℃) L (μH) △T (℃) 120 60 180 60 180 60 100 50 150 50 150 50 80 40 120 40 120 40 60 30 90 30 90 30 40 20 60 20 60 20 20 10 30 10 30 10 0 0 0 0 0 0 0.0 0.2 0.4 0.6 0.8 1.0 0.0 0.2 0.4 0.6 0.8 0.0 0.2 0.4 0.6 0.8 DC (A) DC (A) DC (A)
16. CD54NP-181KC 17. CD54NP-221KC
L (μH) △T (℃) L (μH) △T (℃) 240 60 300 60 200 50 250 50 160 40 200 40 120 30 150 30 80 20 100 20 40 10 50 10 0 0 0 0 0.0 0.2 0.4 0.6 0.8 0.0 0.1 0.2 0.3 0.4 0.5 0.6 DC (A) DC (A)
Solder Reflow Condition Heat Endurance Temperature Chart
T (℃) T (℃) 300 260℃ 300 245℃ PEAK 250 230℃ 250 230℃ 200 200 10 40s 150 150 60 170±10 ℃,60~120s 100 100 50 50 0 0 0 60 120 180 240 300 T (s) 0 60 120 180 240 300 T (s)
