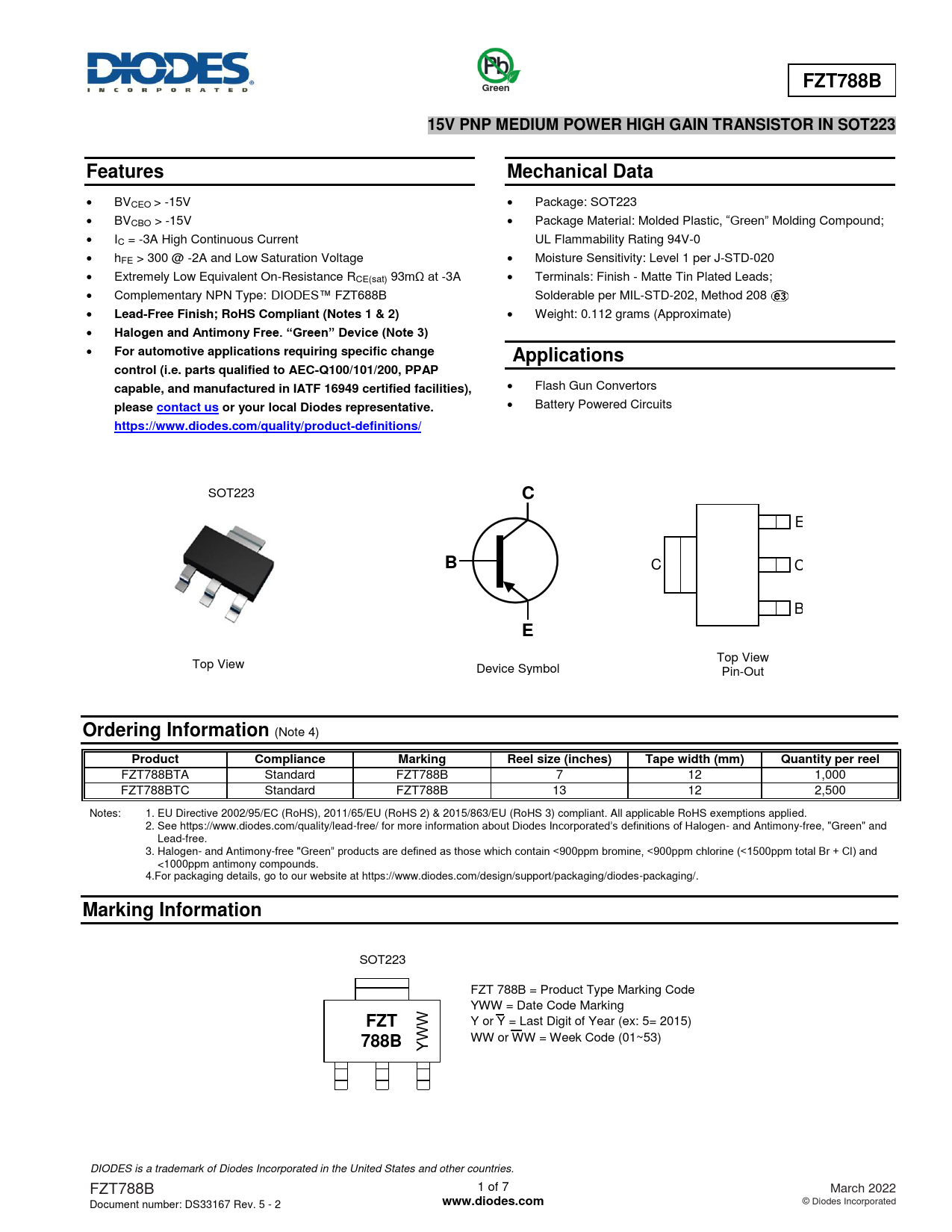

GreenFZT788B15V PNP MEDIUM POWER HIGH GAIN TRANSISTOR IN SOT223FeaturesMechanical Data BVCEO > -15V Package: SOT223 BVCBO > -15V Package Material: Molded Plastic, “Green” Molding Compound; IC = -3A High Continuous Current UL Flammability Rating 94V-0 hFE > 300 @ -2A and Low Saturation Voltage Moisture Sensitivity: Level 1 per J-STD-020 Extremely Low Equivalent On-Resistance RCE(sat) 93mΩ at -3A Terminals: Finish - Matte Tin Plated Leads; Complementary NPN Type: DIODES™ FZT688B Solderable per MIL-STD-202, Method 208 Lead-Free Finish; RoHS Compliant (Notes 1 & 2) Weight: 0.112 grams (Approximate) Halogen and Antimony Free. “Green” Device (Note 3)For automotive applications requiring specific changeApplicationscontrol (i.e. parts qualified to AEC-Q100/101/200, PPAPcapable, and manufactured in IATF 16949 certified facilities), Flash Gun Convertors please contact usor your local Diodes representative. Battery Powered Circuits https://www.diodes.com/quality/product-definitions/ SOT223 C E B C C
B E Top View Top View
Device Symbol Pin-Out Ordering Information (Note 4) ProductComplianceMarkingReel size (inches)Tape width (mm)Quantity per reel FZT788BTA Standard FZT788B 7 12 1,000 FZT788BTC Standard FZT788B 13 12 2,500 Notes: 1. EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. All applicable RoHS exemptions applied. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. 4.For packaging details, go to our website at https://www.diodes.com/design/support/packaging/diodes-packaging/. Marking Information SOT223 FZT 788B = Product Type Marking Code YWW = Date Code Marking FZT Y or Y = Last Digit of Year (ex: 5= 2015) WW or WW = Week Code (01~53) 788B YWW
