TSV782. Electrical characteristics

TSV782 Electrical characteristics

Modelllinie für dieses Datenblatt

Textversion des Dokuments

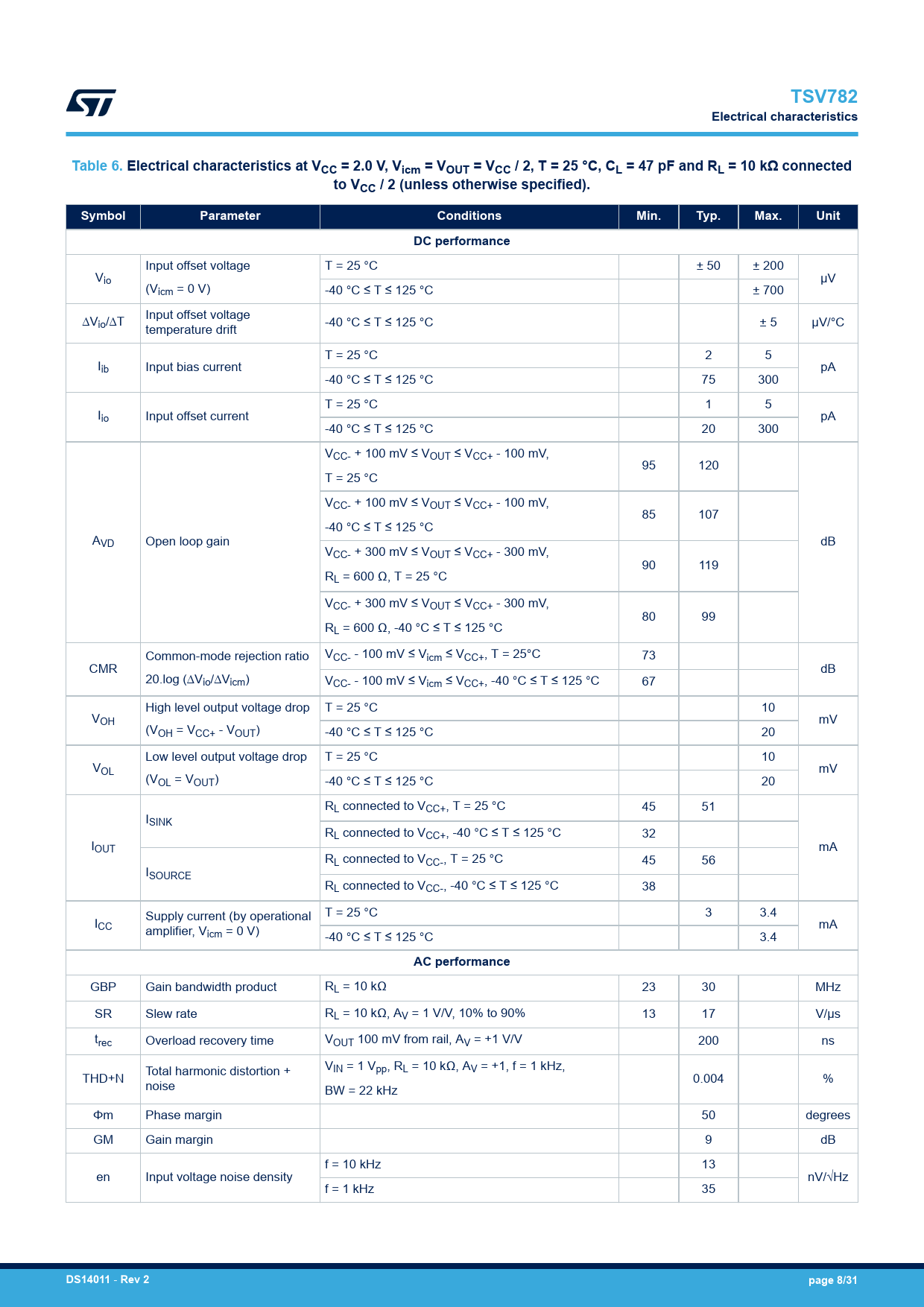

TSV782 Electrical characteristics Table 6. Electrical characteristics at VCC = 2.0 V, Vicm = VOUT = VCC / 2, T = 25 °C, CL = 47 pF and RL = 10 kΩ connected to VCC / 2 (unless otherwise specified). Symbol Parameter Conditions Min. Typ. Max. Unit DC performance
Input offset voltage T = 25 °C ± 50 ± 200 Vio µV (Vicm = 0 V) -40 °C ≤ T ≤ 125 °C ± 700 ∆Vio/∆T Input offset voltage -40 °C ≤ T ≤ 125 °C ± 5 µV/°C temperature drift T = 25 °C 2 5 Iib Input bias current pA -40 °C ≤ T ≤ 125 °C 75 300 T = 25 °C 1 5 Iio Input offset current pA -40 °C ≤ T ≤ 125 °C 20 300 VCC- + 100 mV ≤ VOUT ≤ VCC+ - 100 mV, 95 120 T = 25 °C VCC- + 100 mV ≤ VOUT ≤ VCC+ - 100 mV, 85 107 -40 °C ≤ T ≤ 125 °C AVD Open loop gain dB VCC- + 300 mV ≤ VOUT ≤ VCC+ - 300 mV, 90 119 RL = 600 Ω, T = 25 °C VCC- + 300 mV ≤ VOUT ≤ VCC+ - 300 mV, 80 99 RL = 600 Ω, -40 °C ≤ T ≤ 125 °C Common-mode rejection ratio VCC- - 100 mV ≤ Vicm ≤ VCC+, T = 25°C 73 CMR dB 20.log (∆Vio/∆Vicm) VCC- - 100 mV ≤ Vicm ≤ VCC+, -40 °C ≤ T ≤ 125 °C 67 High level output voltage drop T = 25 °C 10 VOH mV (VOH = VCC+ - VOUT) -40 °C ≤ T ≤ 125 °C 20 Low level output voltage drop T = 25 °C 10 VOL mV (VOL = VOUT) -40 °C ≤ T ≤ 125 °C 20 RL connected to VCC+, T = 25 °C 45 51 ISINK RL connected to VCC+, -40 °C ≤ T ≤ 125 °C 32 IOUT mA RL connected to VCC-, T = 25 °C 45 56 ISOURCE RL connected to VCC-, -40 °C ≤ T ≤ 125 °C 38 Supply current (by operational T = 25 °C 3 3.4 ICC amplifier, V mA icm = 0 V) -40 °C ≤ T ≤ 125 °C 3.4
AC performance
GBP Gain bandwidth product RL = 10 kΩ 23 30 MHz SR Slew rate RL = 10 kΩ, AV = 1 V/V, 10% to 90% 13 17 V/µs trec Overload recovery time VOUT 100 mV from rail, AV = +1 V/V 200 ns Total harmonic distortion + VIN = 1 Vpp, RL = 10 kΩ, AV = +1, f = 1 kHz, THD+N 0.004 % noise BW = 22 kHz Φm Phase margin 50 degrees GM Gain margin 9 dB f = 10 kHz 13 en Input voltage noise density nV/√Hz f = 1 kHz 35
DS14011
-
Rev 2 page 8/31
