TSV782. Electrical characteristics

TSV782 Electrical characteristics

Modelllinie für dieses Datenblatt

Textversion des Dokuments

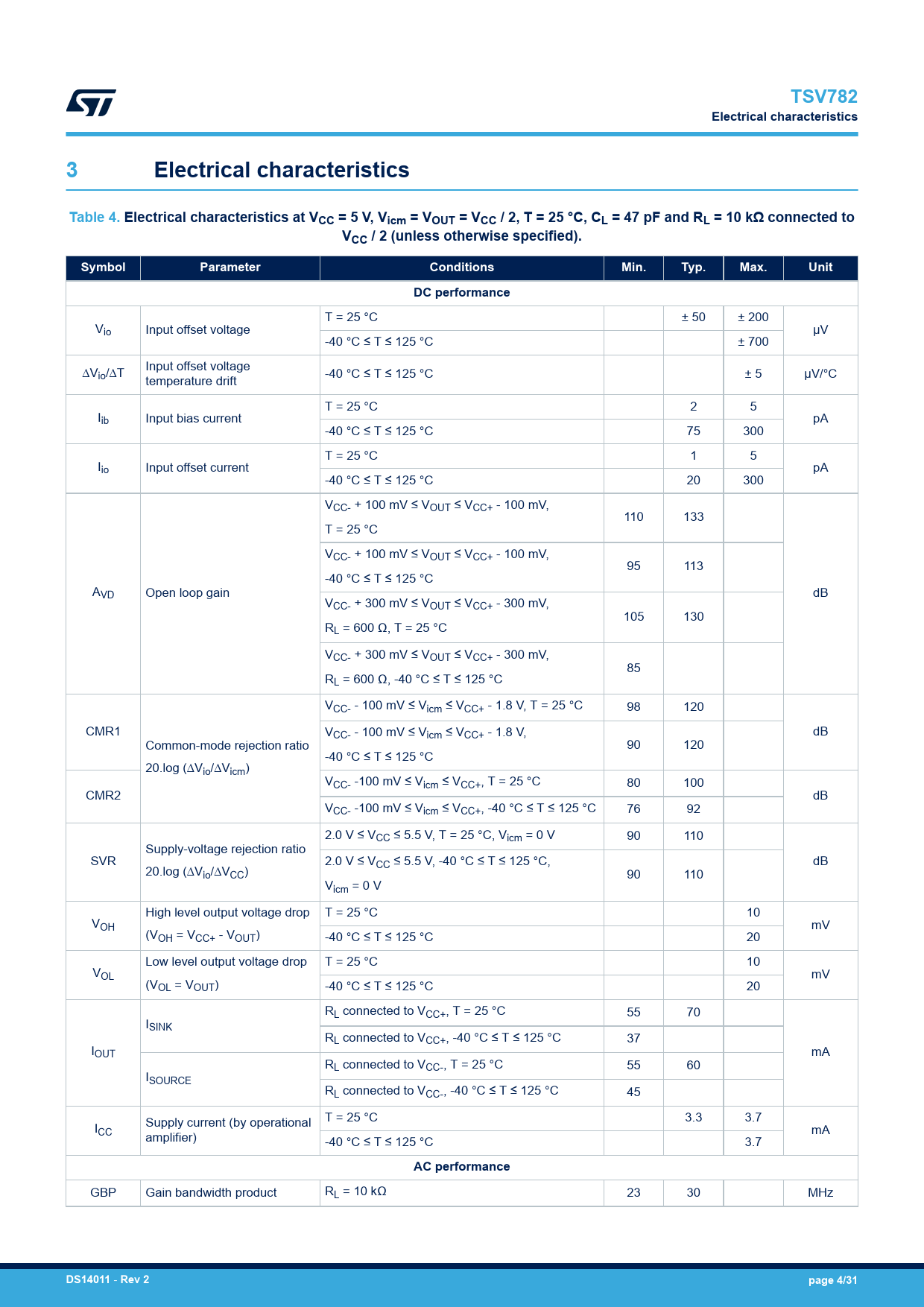

TSV782 Electrical characteristics 3 Electrical characteristics Table 4. Electrical characteristics at VCC = 5 V, Vicm = VOUT = VCC / 2, T = 25 °C, CL = 47 pF and RL = 10 kΩ connected to VCC / 2 (unless otherwise specified). Symbol Parameter Conditions Min. Typ. Max. Unit DC performance
T = 25 °C ± 50 ± 200 Vio Input offset voltage µV -40 °C ≤ T ≤ 125 °C ± 700 ∆Vio/∆T Input offset voltage -40 °C ≤ T ≤ 125 °C ± 5 µV/°C temperature drift T = 25 °C 2 5 Iib Input bias current pA -40 °C ≤ T ≤ 125 °C 75 300 T = 25 °C 1 5 Iio Input offset current pA -40 °C ≤ T ≤ 125 °C 20 300 VCC- + 100 mV ≤ VOUT ≤ VCC+ - 100 mV, 110 133 T = 25 °C VCC- + 100 mV ≤ VOUT ≤ VCC+ - 100 mV, 95 113 -40 °C ≤ T ≤ 125 °C AVD Open loop gain dB VCC- + 300 mV ≤ VOUT ≤ VCC+ - 300 mV, 105 130 RL = 600 Ω, T = 25 °C VCC- + 300 mV ≤ VOUT ≤ VCC+ - 300 mV, 85 RL = 600 Ω, -40 °C ≤ T ≤ 125 °C VCC- - 100 mV ≤ Vicm ≤ VCC+ - 1.8 V, T = 25 °C 98 120 CMR1 V dB CC- - 100 mV ≤ Vicm ≤ VCC+ - 1.8 V, Common-mode rejection ratio 90 120 -40 °C ≤ T ≤ 125 °C 20.log (∆Vio/∆Vicm) VCC- -100 mV ≤ Vicm ≤ VCC+, T = 25 °C 80 100 CMR2 dB VCC- -100 mV ≤ Vicm ≤ VCC+, -40 °C ≤ T ≤ 125 °C 76 92 2.0 V ≤ VCC ≤ 5.5 V, T = 25 °C, Vicm = 0 V 90 110 Supply-voltage rejection ratio SVR 2.0 V ≤ VCC ≤ 5.5 V, -40 °C ≤ T ≤ 125 °C, dB 20.log (∆Vio/∆VCC) 90 110 Vicm = 0 V High level output voltage drop T = 25 °C 10 VOH mV (VOH = VCC+ - VOUT) -40 °C ≤ T ≤ 125 °C 20 Low level output voltage drop T = 25 °C 10 VOL mV (VOL = VOUT) -40 °C ≤ T ≤ 125 °C 20 RL connected to VCC+, T = 25 °C 55 70 ISINK RL connected to VCC+, -40 °C ≤ T ≤ 125 °C 37 IOUT mA RL connected to VCC-, T = 25 °C 55 60 ISOURCE RL connected to VCC-, -40 °C ≤ T ≤ 125 °C 45 T = 25 °C 3.3 3.7 I Supply current (by operational CC mA amplifier) -40 °C ≤ T ≤ 125 °C 3.7
AC performance
GBP Gain bandwidth product RL = 10 kΩ 23 30 MHz
