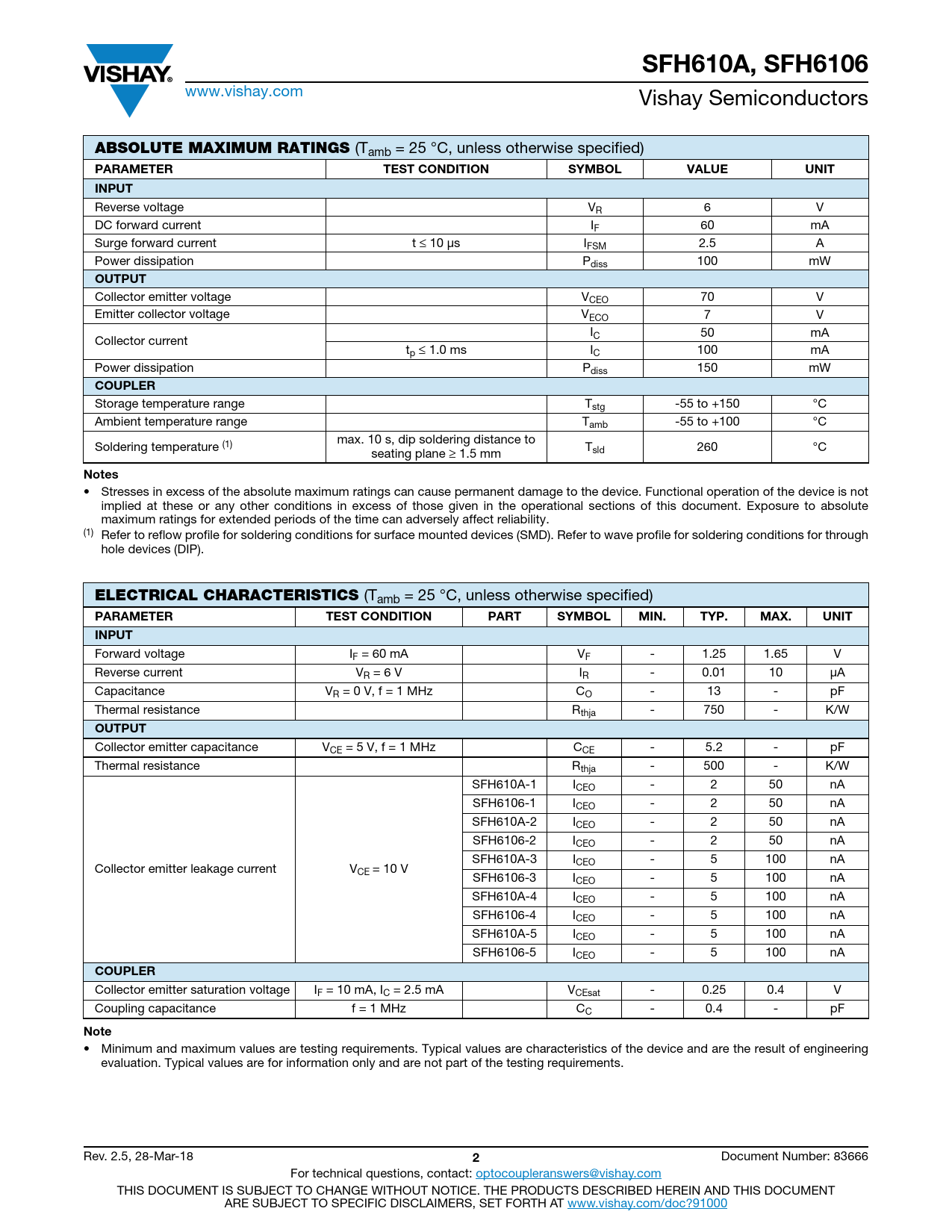

SFH610A, SFH6106
www.vishay.com Vishay Semiconductors
ABSOLUTE MAXIMUM RATINGS
(Tamb = 25 °C, unless otherwise specified)
PARAMETER TEST CONDITION SYMBOL VALUE UNIT INPUT
Reverse voltage VR 6 V DC forward current IF 60 mA Surge forward current t ≤ 10 μs IFSM 2.5 A Power dissipation Pdiss 100 mW
OUTPUT
Collector emitter voltage VCEO 70 V Emitter collector voltage VECO 7 V IC 50 mA Collector current tp ≤ 1.0 ms IC 100 mA Power dissipation Pdiss 150 mW
COUPLER
Storage temperature range Tstg -55 to +150 °C Ambient temperature range Tamb -55 to +100 °C Soldering temperature (1) max. 10 s, dip soldering distance to T seating plane ≥ 1.5 mm sld 260 °C
Notes
• Stresses in excess of the absolute maximum ratings can cause permanent damage to the device. Functional operation of the device is not implied at these or any other conditions in excess of those given in the operational sections of this document. Exposure to absolute maximum ratings for extended periods of the time can adversely affect reliability. (1) Refer to reflow profile for soldering conditions for surface mounted devices (SMD). Refer to wave profile for soldering conditions for through hole devices (DIP).
ELECTRICAL CHARACTERISTICS
(Tamb = 25 °C, unless otherwise specified)
PARAMETER TEST CONDITION PART SYMBOL MIN. TYP. MAX. UNIT INPUT
Forward voltage IF = 60 mA VF - 1.25 1.65 V Reverse current VR = 6 V IR - 0.01 10 μA Capacitance VR = 0 V, f = 1 MHz CO - 13 - pF Thermal resistance Rthja - 750 - K/W
OUTPUT
Collector emitter capacitance VCE = 5 V, f = 1 MHz CCE - 5.2 - pF Thermal resistance Rthja - 500 - K/W SFH610A-1 ICEO - 2 50 nA SFH6106-1 ICEO - 2 50 nA SFH610A-2 ICEO - 2 50 nA SFH6106-2 ICEO - 2 50 nA SFH610A-3 ICEO - 5 100 nA Collector emitter leakage current VCE = 10 V SFH6106-3 ICEO - 5 100 nA SFH610A-4 ICEO - 5 100 nA SFH6106-4 ICEO - 5 100 nA SFH610A-5 ICEO - 5 100 nA SFH6106-5 ICEO - 5 100 nA
COUPLER
Collector emitter saturation voltage IF = 10 mA, IC = 2.5 mA VCEsat - 0.25 0.4 V Coupling capacitance f = 1 MHz CC - 0.4 - pF
Note
• Minimum and maximum values are testing requirements. Typical values are characteristics of the device and are the result of engineering evaluation. Typical values are for information only and are not part of the testing requirements. Rev. 2.5, 28-Mar-18
2
Document Number: 83666 For technical questions, contact: optocoupleranswers@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
