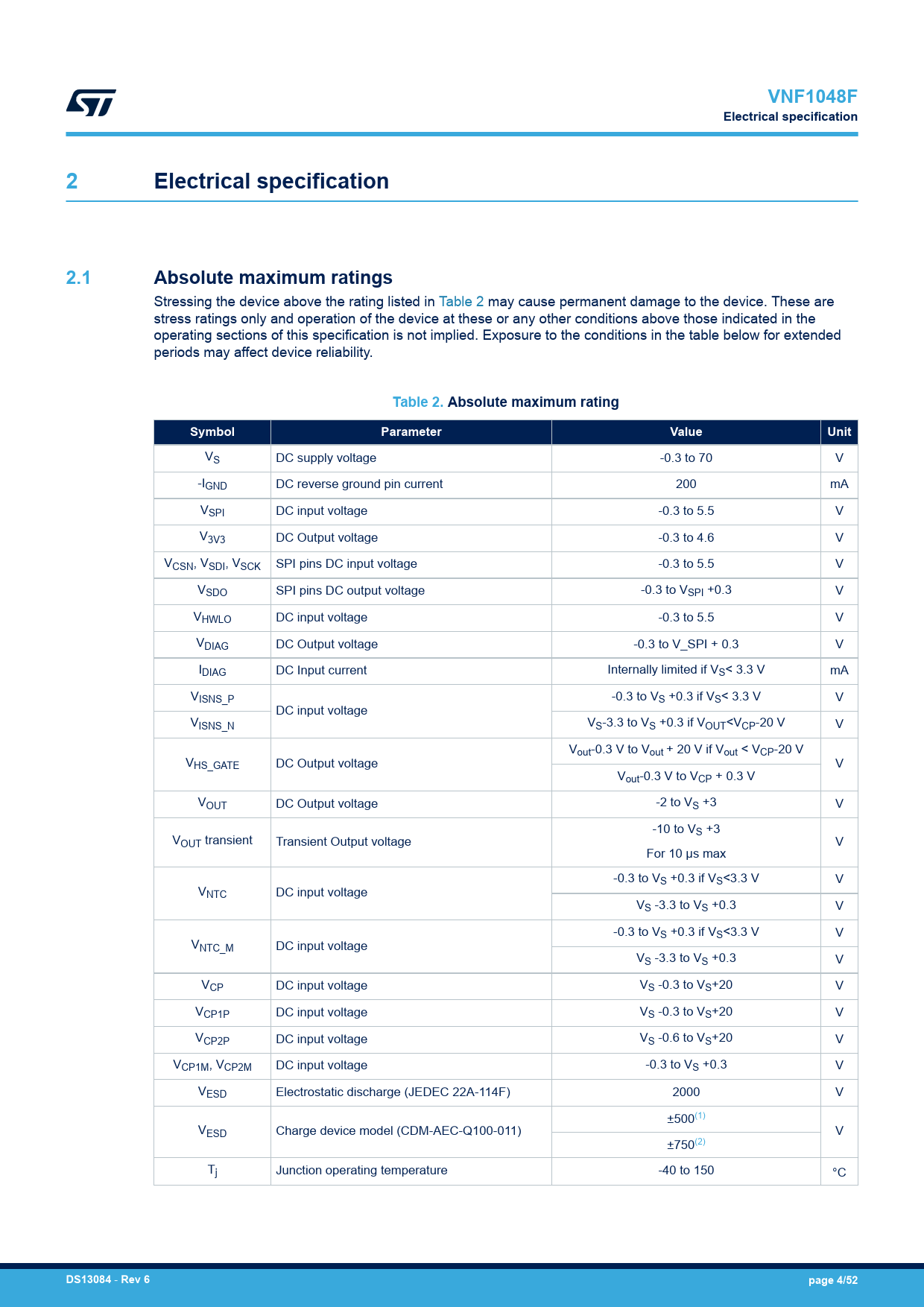

VNF1048F Electrical specification 2 Electrical specification 2.1 Absolute maximum ratings
Stressing the device above the rating listed in Table 2 may cause permanent damage to the device. These are stress ratings only and operation of the device at these or any other conditions above those indicated in the operating sections of this specification is not implied. Exposure to the conditions in the table below for extended periods may affect device reliability.
Table 2. Absolute maximum rating Symbol Parameter Value Unit
VS DC supply voltage -0.3 to 70 V -IGND DC reverse ground pin current 200 mA VSPI DC input voltage -0.3 to 5.5 V V3V3 DC Output voltage -0.3 to 4.6 V VCSN, VSDI, VSCK SPI pins DC input voltage -0.3 to 5.5 V VSDO SPI pins DC output voltage -0.3 to VSPI +0.3 V VHWLO DC input voltage -0.3 to 5.5 V VDIAG DC Output voltage -0.3 to V_SPI + 0.3 V IDIAG DC Input current Internally limited if VS< 3.3 V mA VISNS_P -0.3 to VS +0.3 if VS< 3.3 V V DC input voltage VISNS_N VS-3.3 to VS +0.3 if VOUT<VCP-20 V V Vout-0.3 V to Vout + 20 V if Vout < VCP-20 V VHS_GATE DC Output voltage V Vout-0.3 V to VCP + 0.3 V VOUT DC Output voltage -2 to VS +3 V -10 to VS +3 VOUT transient Transient Output voltage V For 10 µs max -0.3 to VS +0.3 if VS<3.3 V V VNTC DC input voltage VS -3.3 to VS +0.3 V -0.3 to VS +0.3 if VS<3.3 V V VNTC_M DC input voltage VS -3.3 to VS +0.3 V VCP DC input voltage VS -0.3 to VS+20 V VCP1P DC input voltage VS -0.3 to VS+20 V VCP2P DC input voltage VS -0.6 to VS+20 V VCP1M, VCP2M DC input voltage -0.3 to VS +0.3 V VESD Electrostatic discharge (JEDEC 22A-114F) 2000 V ±500(1) VESD Charge device model (CDM-AEC-Q100-011) V ±750(2) Tj Junction operating temperature -40 to 150 °C
DS13084
-
Rev 6 page 4/52
