Nexperia. BAV199. Low-leakage double diode. 6. Ordering information Table 3. Ordering information. Type number. Package Name

Nexperia BAV199 Low-leakage double diode 6 Ordering information Table 3 Ordering information Type number Package Name

Modelllinie für dieses Datenblatt

Textversion des Dokuments

link to page 2 link to page 2

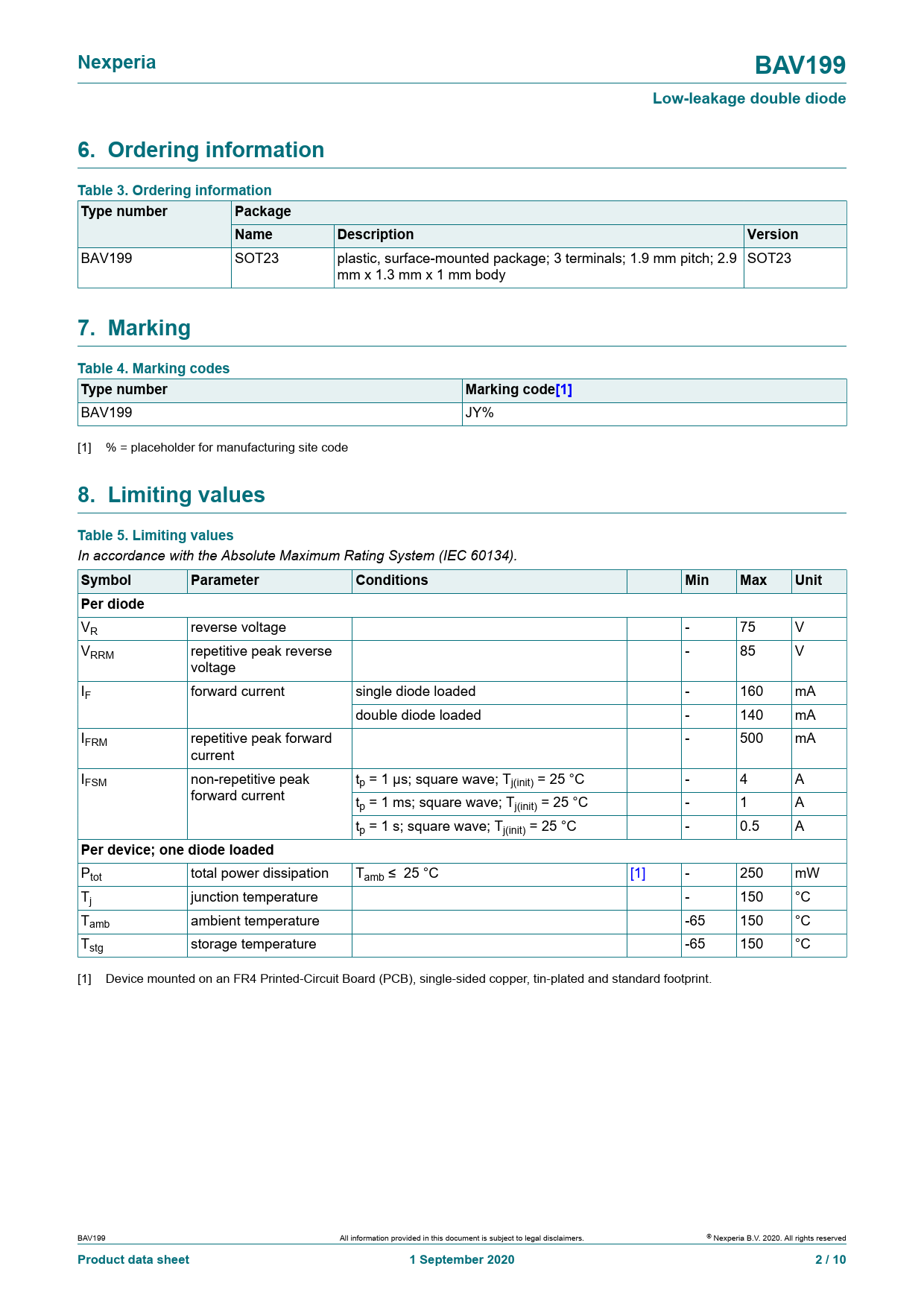

Nexperia BAV199 Low-leakage double diode 6. Ordering information Table 3. Ordering information Type number Package Name Description Version
BAV199 SOT23 plastic, surface-mounted package; 3 terminals; 1.9 mm pitch; 2.9 SOT23 mm x 1.3 mm x 1 mm body
7. Marking Table 4. Marking codes Type number Marking code[1]
BAV199 JY% [1] % = placeholder for manufacturing site code
8. Limiting values Table 5. Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter Conditions Min Max Unit Per diode
VR reverse voltage - 75 V VRRM repetitive peak reverse - 85 V voltage IF forward current single diode loaded - 160 mA double diode loaded - 140 mA IFRM repetitive peak forward - 500 mA current IFSM non-repetitive peak tp = 1 µs; square wave; Tj(init) = 25 °C - 4 A forward current tp = 1 ms; square wave; Tj(init) = 25 °C - 1 A tp = 1 s; square wave; Tj(init) = 25 °C - 0.5 A
Per device; one diode loaded
Ptot total power dissipation Tamb ≤ 25 °C [1] - 250 mW Tj junction temperature - 150 °C Tamb ambient temperature -65 150 °C Tstg storage temperature -65 150 °C [1] Device mounted on an FR4 Printed-Circuit Board (PCB), single-sided copper, tin-plated and standard footprint. BAV199 All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2020. Al rights reserved
Product data sheet 1 September 2020 2 / 10
