Low-Cost, SOT23, Voltage-Output, High-Side Current-Sense Amplifier. Typical Operating Characteristics (continued). MAX4173H
Modelllinie für dieses Datenblatt
Textversion des Dokuments

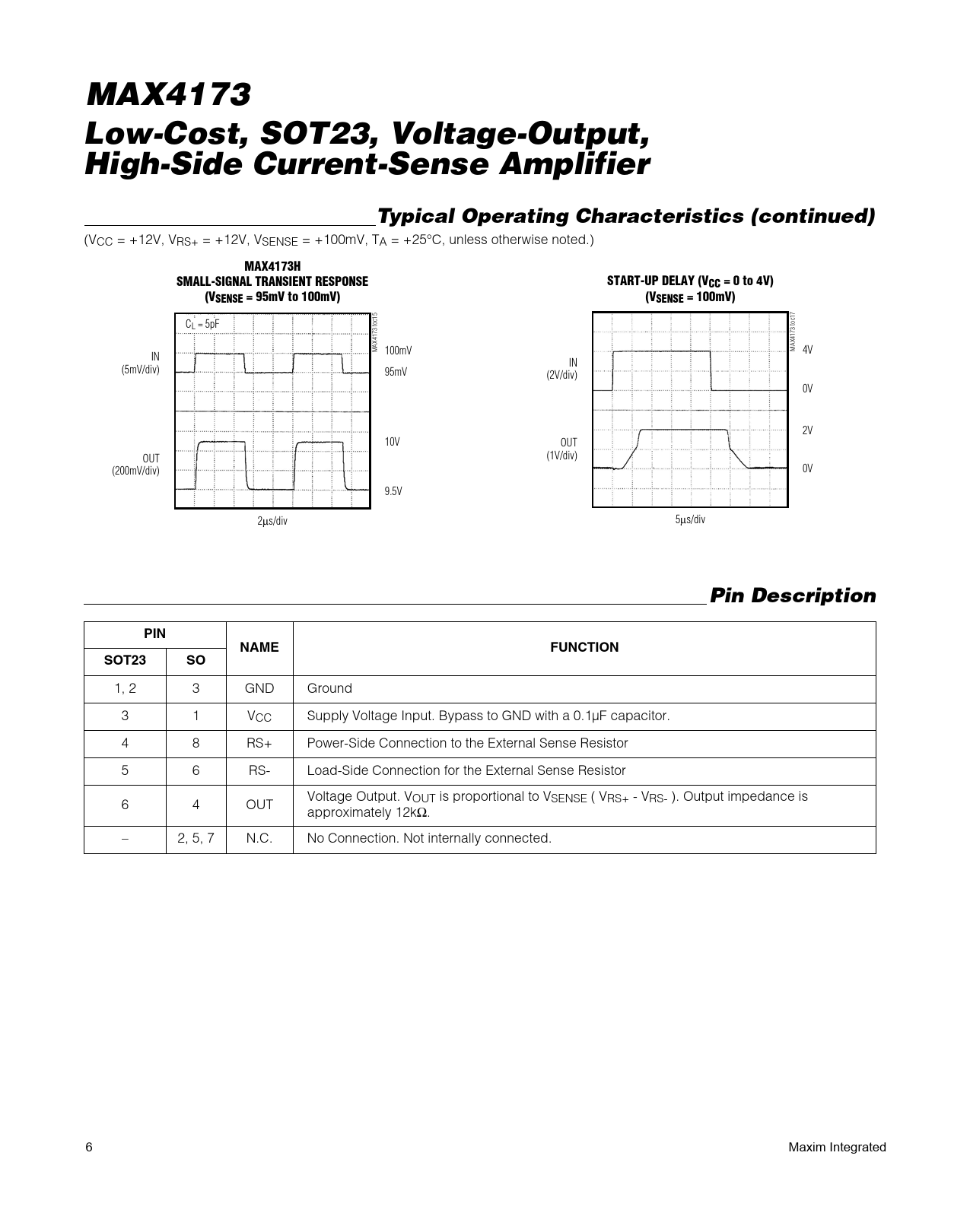

MAX4173
Low-Cost, SOT23, Voltage-Output, High-Side Current-Sense Amplifier Typical Operating Characteristics (continued)
(VCC = +12V, VRS+ = +12V, VSENSE = +100mV, TA = +25°C, unless otherwise noted.)
MAX4173H SMALL-SIGNAL TRANSIENT RESPONSE START-UP DELAY (VCC = 0 to 4V) (VSENSE = 95mV to 100mV) (VSENSE = 100mV)
CL = 5pF MAX4173 toc15 100mV MAX4173 toc17 4V IN IN (5mV/div) 95mV (2V/div) 0V 2V 10V OUT OUT (1V/div) (200mV/div) 0V 9.5V 2µs/div 5µs/div
Pin Description PIN NAME FUNCTION SOT23 SO
1, 2 3 GND Ground 3 1 VCC Supply Voltage Input. Bypass to GND with a 0.1µF capacitor. 4 8 RS+ Power-Side Connection to the External Sense Resistor 5 6 RS- Load-Side Connection for the External Sense Resistor Voltage Output. V 6 4 OUT is proportional to VSENSE ( VRS+ - VRS- ). Output impedance is OUT approximately 12kΩ. – 2, 5, 7 N.C. No Connection. Not internally connected. 6 Maxim Integrated
Low-Cost, SOT23, Voltage-Output, High-Side Current-Sense Amplifier Typical Operating Characteristics (continued)
(VCC = +12V, VRS+ = +12V, VSENSE = +100mV, TA = +25°C, unless otherwise noted.)
MAX4173H SMALL-SIGNAL TRANSIENT RESPONSE START-UP DELAY (VCC = 0 to 4V) (VSENSE = 95mV to 100mV) (VSENSE = 100mV)
CL = 5pF MAX4173 toc15 100mV MAX4173 toc17 4V IN IN (5mV/div) 95mV (2V/div) 0V 2V 10V OUT OUT (1V/div) (200mV/div) 0V 9.5V 2µs/div 5µs/div
Pin Description PIN NAME FUNCTION SOT23 SO
1, 2 3 GND Ground 3 1 VCC Supply Voltage Input. Bypass to GND with a 0.1µF capacitor. 4 8 RS+ Power-Side Connection to the External Sense Resistor 5 6 RS- Load-Side Connection for the External Sense Resistor Voltage Output. V 6 4 OUT is proportional to VSENSE ( VRS+ - VRS- ). Output impedance is OUT approximately 12kΩ. – 2, 5, 7 N.C. No Connection. Not internally connected. 6 Maxim Integrated
