LC2MOS. Quad SPST Switches. ADG201A-EP. FEATURES. FUNCTIONAL BLOCK DIAGRAM. 44 V supply maximum rating. ±15 V analog signal range

Datasheet ADG201A-EP Analog Devices

Modelllinie für dieses Datenblatt

Textversion des Dokuments

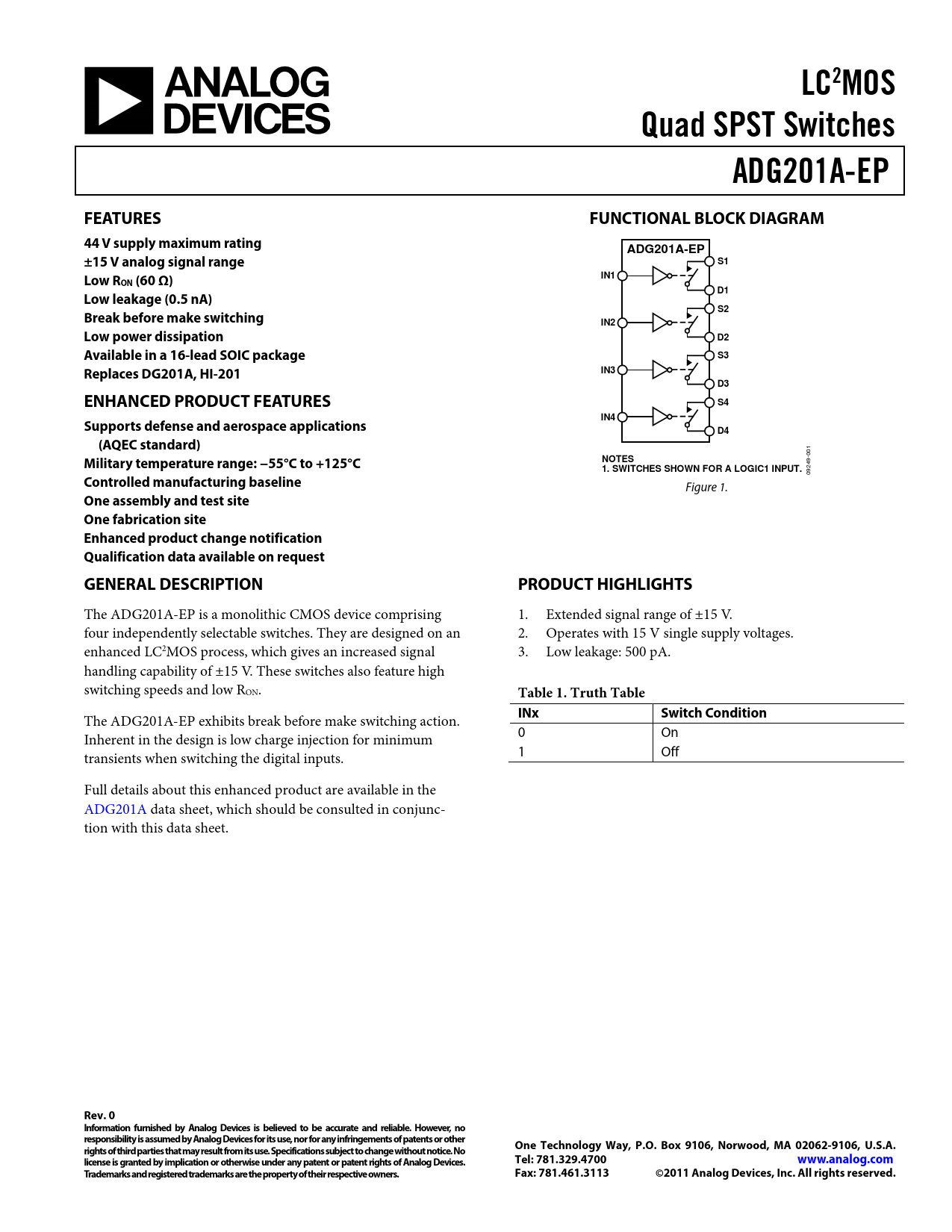

LC2MOS Quad SPST Switches ADG201A-EP FEATURES FUNCTIONAL BLOCK DIAGRAM 44 V supply maximum rating ADG201A-EP ±15 V analog signal range S1 Low R IN1 ON (60 Ω) D1 Low leakage (0.5 nA) S2 Break before make switching IN2 Low power dissipation D2 Available in a 16-lead SOIC package S3 Replaces DG201A, HI-201 IN3 D3 ENHANCED PRODUCT FEATURES S4 IN4 Supports defense and aerospace applications D4 (AQEC standard)
001
Military temperature range: −55°C to +125°C NOTES 1. SWITCHES SHOWN FOR A LOGIC1 INPUT.
09249-
Controlled manufacturing baseline
Figure 1.
One assembly and test site One fabrication site Enhanced product change notification Qualification data available on request GENERAL DESCRIPTION PRODUCT HIGHLIGHTS
The ADG201A-EP is a monolithic CMOS device comprising 1. Extended signal range of ±15 V. four independently selectable switches. They are designed on an 2. Operates with 15 V single supply voltages. enhanced LC2MOS process, which gives an increased signal 3. Low leakage: 500 pA. handling capability of ±15 V. These switches also feature high switching speeds and low RON.
Table 1. Truth Table
The ADG201A-EP exhibits break before make switching action.
INx Switch Condition
Inherent in the design is low charge injection for minimum 0 On transients when switching the digital inputs. 1 Off Full details about this enhanced product are available in the ADG201A data sheet, which should be consulted in conjunc- tion with this data sheet.
