ADG406/ADG407/ADG426. GENERAL DESCRIPTION

ADG406/ADG407/ADG426 GENERAL DESCRIPTION

Modelllinie für dieses Datenblatt

Textversion des Dokuments

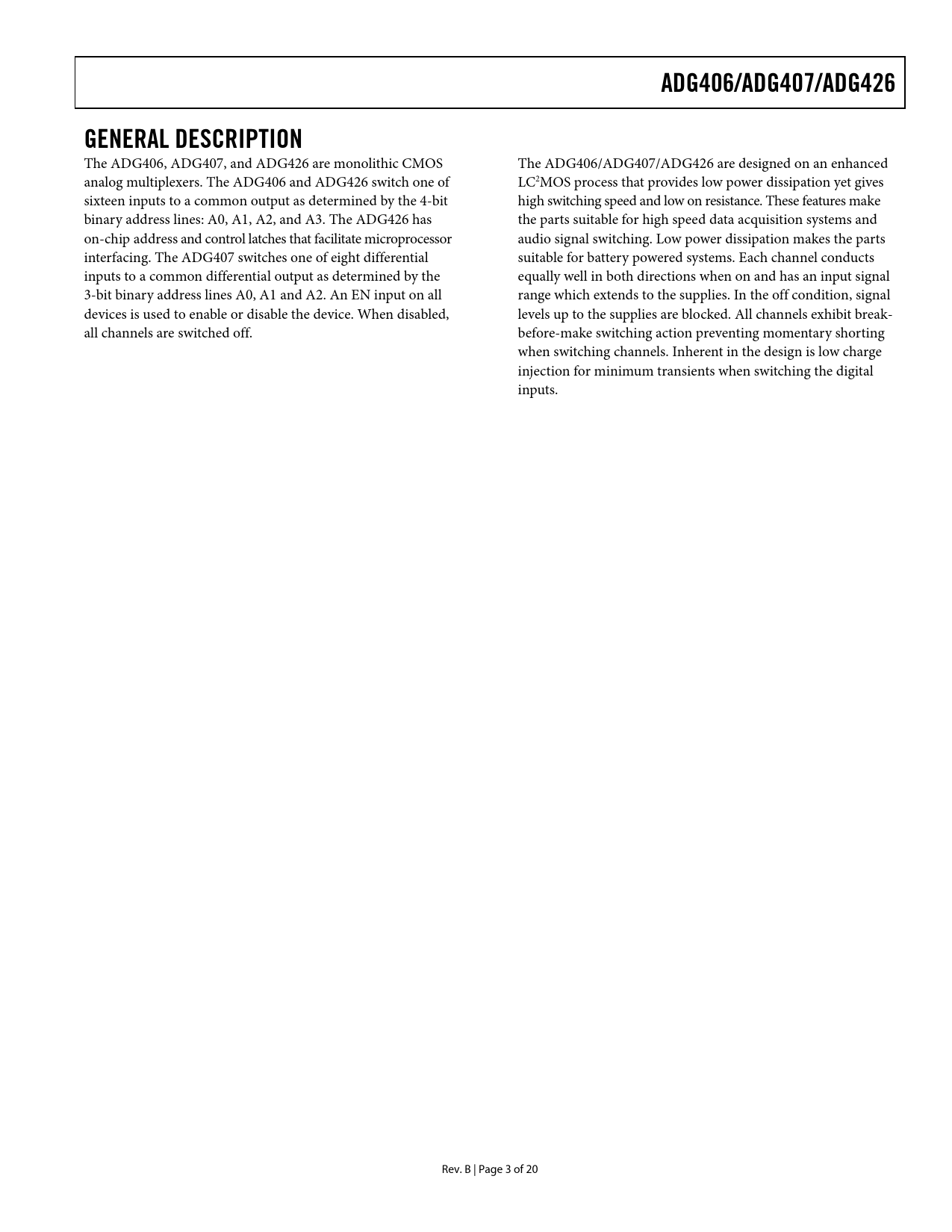

ADG406/ADG407/ADG426 GENERAL DESCRIPTION
The ADG406, ADG407, and ADG426 are monolithic CMOS The ADG406/ADG407/ADG426 are designed on an enhanced analog multiplexers. The ADG406 and ADG426 switch one of LC2MOS process that provides low power dissipation yet gives sixteen inputs to a common output as determined by the 4-bit high switching speed and low on resistance. These features make binary address lines: A0, A1, A2, and A3. The ADG426 has the parts suitable for high speed data acquisition systems and on-chip address and control latches that facilitate microprocessor audio signal switching. Low power dissipation makes the parts interfacing. The ADG407 switches one of eight differential suitable for battery powered systems. Each channel conducts inputs to a common differential output as determined by the equally well in both directions when on and has an input signal 3-bit binary address lines A0, A1 and A2. An EN input on all range which extends to the supplies. In the off condition, signal devices is used to enable or disable the device. When disabled, levels up to the supplies are blocked. All channels exhibit break- all channels are switched off. before-make switching action preventing momentary shorting when switching channels. Inherent in the design is low charge injection for minimum transients when switching the digital inputs. Rev. B | Page 3 of 20 Document Outline FEATURES APPLICATIONS PRODUCT HIGHLIGHTS FUNCTIONAL BLOCK DIAGRAMS TABLE OF CONTENTS REVISION HISTORY GENERAL DESCRIPTION SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ADG426 TIMING DIAGRAMS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
