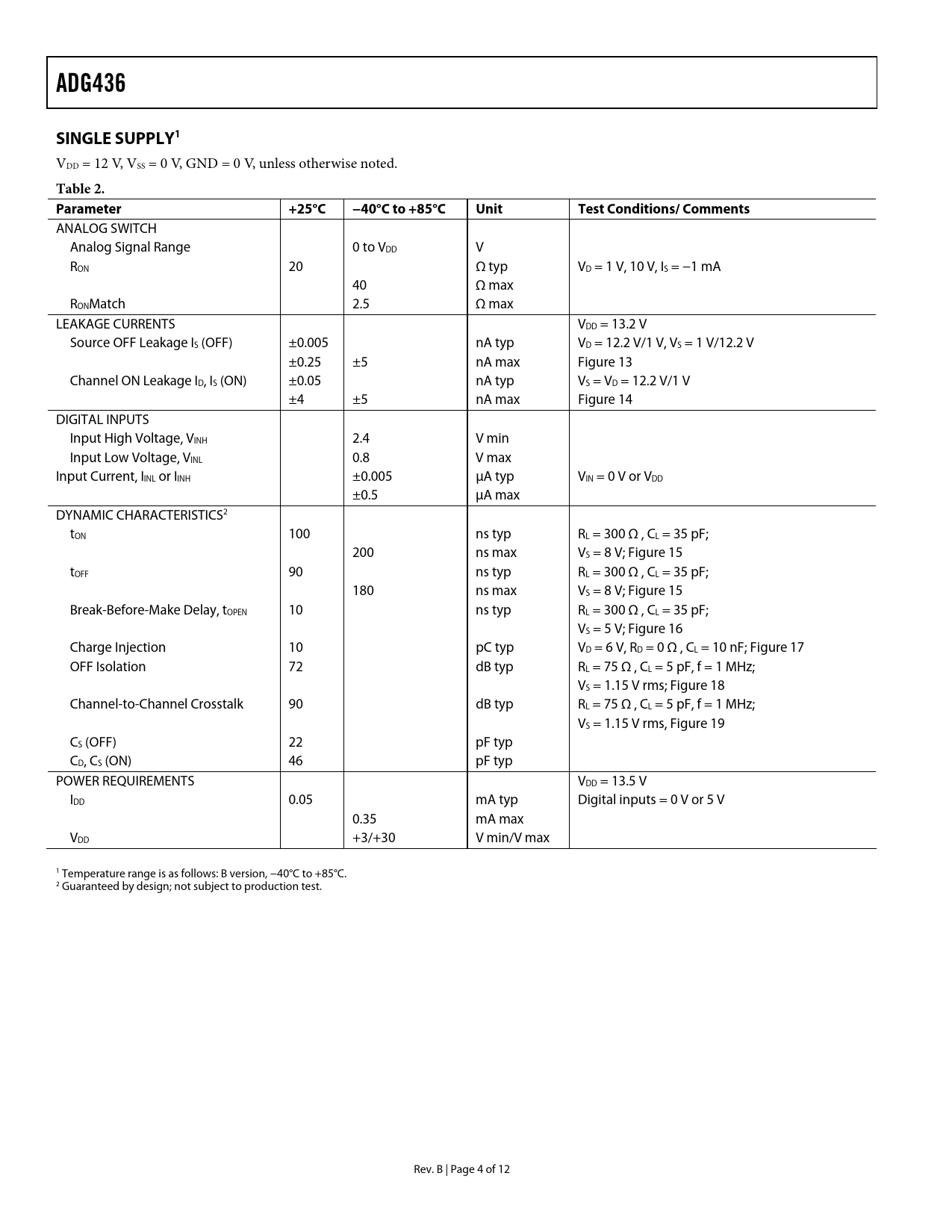

ADG436 SINGLE SUPPLY1
VDD = 12 V, VSS = 0 V, GND = 0 V, unless otherwise noted.
Table 2. Parameter +25°C −40°C to +85°C Unit Test Conditions/ Comments
ANALOG SWITCH Analog Signal Range 0 to VDD V RON 20 Ω typ VD = 1 V, 10 V, IS = −1 mA 40 Ω max RONMatch 2.5 Ω max LEAKAGE CURRENTS VDD = 13.2 V Source OFF Leakage IS (OFF) ±0.005 nA typ VD = 12.2 V/1 V, VS = 1 V/12.2 V ±0.25 ±5 nA max Figure 13 Channel ON Leakage ID, IS (ON) ±0.05 nA typ VS = VD = 12.2 V/1 V ±4 ±5 nA max Figure 14 DIGITAL INPUTS Input High Voltage, VINH 2.4 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH ±0.005 µA typ VIN = 0 V or VDD ±0.5 µA max DYNAMIC CHARACTERISTICS2 tON 100 ns typ RL = 300 Ω , CL = 35 pF; 200 ns max VS = 8 V; Figure 15 tOFF 90 ns typ RL = 300 Ω , CL = 35 pF; 180 ns max VS = 8 V; Figure 15 Break-Before-Make Delay, tOPEN 10 ns typ RL = 300 Ω , CL = 35 pF; VS = 5 V; Figure 16 Charge Injection 10 pC typ VD = 6 V, RD = 0 Ω , CL = 10 nF; Figure 17 OFF Isolation 72 dB typ RL = 75 Ω , CL = 5 pF, f = 1 MHz; VS = 1.15 V rms; Figure 18 Channel-to-Channel Crosstalk 90 dB typ RL = 75 Ω , CL = 5 pF, f = 1 MHz; VS = 1.15 V rms, Figure 19 CS (OFF) 22 pF typ CD, CS (ON) 46 pF typ POWER REQUIREMENTS VDD = 13.5 V IDD 0.05 mA typ Digital inputs = 0 V or 5 V 0.35 mA max VDD +3/+30 V min/V max 1 Temperature range is as follows: B version, −40°C to +85°C. 2 Guaranteed by design; not subject to production test. Rev. B | Page 4 of 12 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TERMINOLOGY TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS APPLICATIONS INFORMATION ADG436 SUPPLY VOLTAGES POWER-SUPPLY SEQUENCING OUTLINE DIMENSIONS ORDERING GUIDE
