LC2MOS. 5 Ω RON SPST Switches. ADG451/ADG452/ADG453. FEATURES. FUNCTIONAL BLOCK DIAGRAMS. Low on resistance (4 Ω)

Datasheet ADG451, ADG452, ADG453 Analog Devices, Revision: C

Modelllinie für dieses Datenblatt

Textversion des Dokuments

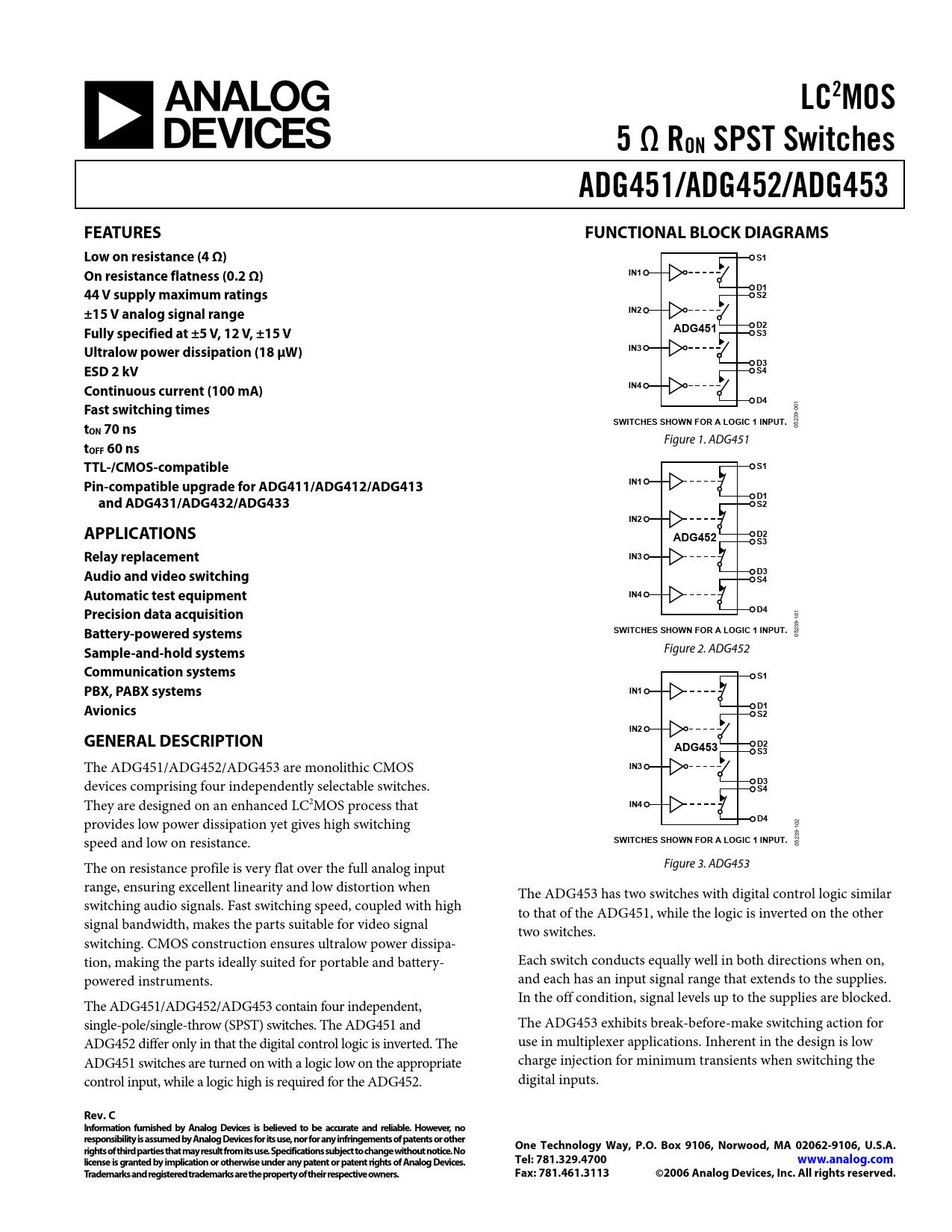

LC2MOS 5 Ω RON SPST Switches ADG451/ADG452/ADG453 FEATURES FUNCTIONAL BLOCK DIAGRAMS Low on resistance (4 Ω) S1 On resistance flatness (0.2 Ω) IN1 D1 44 V supply maximum ratings S2 ±15 V analog signal range IN2 D2 Fully specified at ±5 V, 12 V, ±15 V ADG451 S3 Ultralow power dissipation (18 μW) IN3 D3 ESD 2 kV S4 Continuous current (100 mA) IN4 D4 Fast switching times
001 39-
SWITCHES SHOWN FOR A LOGIC 1 INPUT. t
052
ON 70 ns
Figure 1. ADG451
tOFF 60 ns TTL-/CMOS-compatible S1 Pin-compatible upgrade for ADG411/ADG412/ADG413 IN1 D1 and ADG431/ADG432/ADG433 S2 IN2 APPLICATIONS D2 ADG452 S3 Relay replacement IN3 Audio and video switching D3 S4 Automatic test equipment IN4 D4 Precision data acquisition
-101
Battery-powered systems SWITCHES SHOWN FOR A LOGIC 1 INPUT.
239 05
Sample-and-hold systems
Figure 2. ADG452
Communication systems S1 PBX, PABX systems IN1 Avionics D1 S2 IN2 GENERAL DESCRIPTION D2 ADG453 S3
The ADG451/ADG452/ADG453 are monolithic CMOS
IN3
devices comprising four independently selectable switches.
D3 S4
They are designed on an enhanced LC2MOS process that
IN4
provides low power dissipation yet gives high switching
D4
02 1 9- speed and low on resistance.
SWITCHES SHOWN FOR A LOGIC 1 INPUT.
523 0 The on resistance profile is very flat over the full analog input Figure 3. ADG453 range, ensuring excellent linearity and low distortion when The ADG453 has two switches with digital control logic similar switching audio signals. Fast switching speed, coupled with high to that of the ADG451, while the logic is inverted on the other signal bandwidth, makes the parts suitable for video signal two switches. switching. CMOS construction ensures ultralow power dissipa- tion, making the parts ideally suited for portable and battery- Each switch conducts equally well in both directions when on, powered instruments. and each has an input signal range that extends to the supplies. In the off condition, signal levels up to the supplies are blocked. The ADG451/ADG452/ADG453 contain four independent, single-pole/single-throw (SPST) switches. The ADG451 and The ADG453 exhibits break-before-make switching action for ADG452 differ only in that the digital control logic is inverted. The use in multiplexer applications. Inherent in the design is low ADG451 switches are turned on with a logic low on the appropriate charge injection for minimum transients when switching the control input, while a logic high is required for the ADG452. digital inputs.
Rev. C Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 www.analog.com Trademarks and registered trademarks are the property of their respective owners. Fax: 781.461.3113 ©2006 Analog Devices, Inc. All rights reserved.
Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAMS TABLE OF CONTENTS REVISION HISTORY PRODUCT HIGHLIGHTS SPECIFICATIONS 15 V DUAL SUPPLY 12 V SINGLE SUPPLY 5 V DUAL SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY APPLICATIONS TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
