Datasheet ADG733, ADG734 (Analog Devices)

HerstellerAnalog Devices
BeschreibungCMOS, 2.5 Ω Low Voltage, Triple/Quad SPDT Switches
Seiten / Seite12 / 1 — CMOS, 2.5. Low Voltage,. Triple/Quad SPDT Switches. ADG733/ADG734. …
RevisionB
Dateiformat / GrößePDF / 209 Kb
DokumentenspracheEnglisch

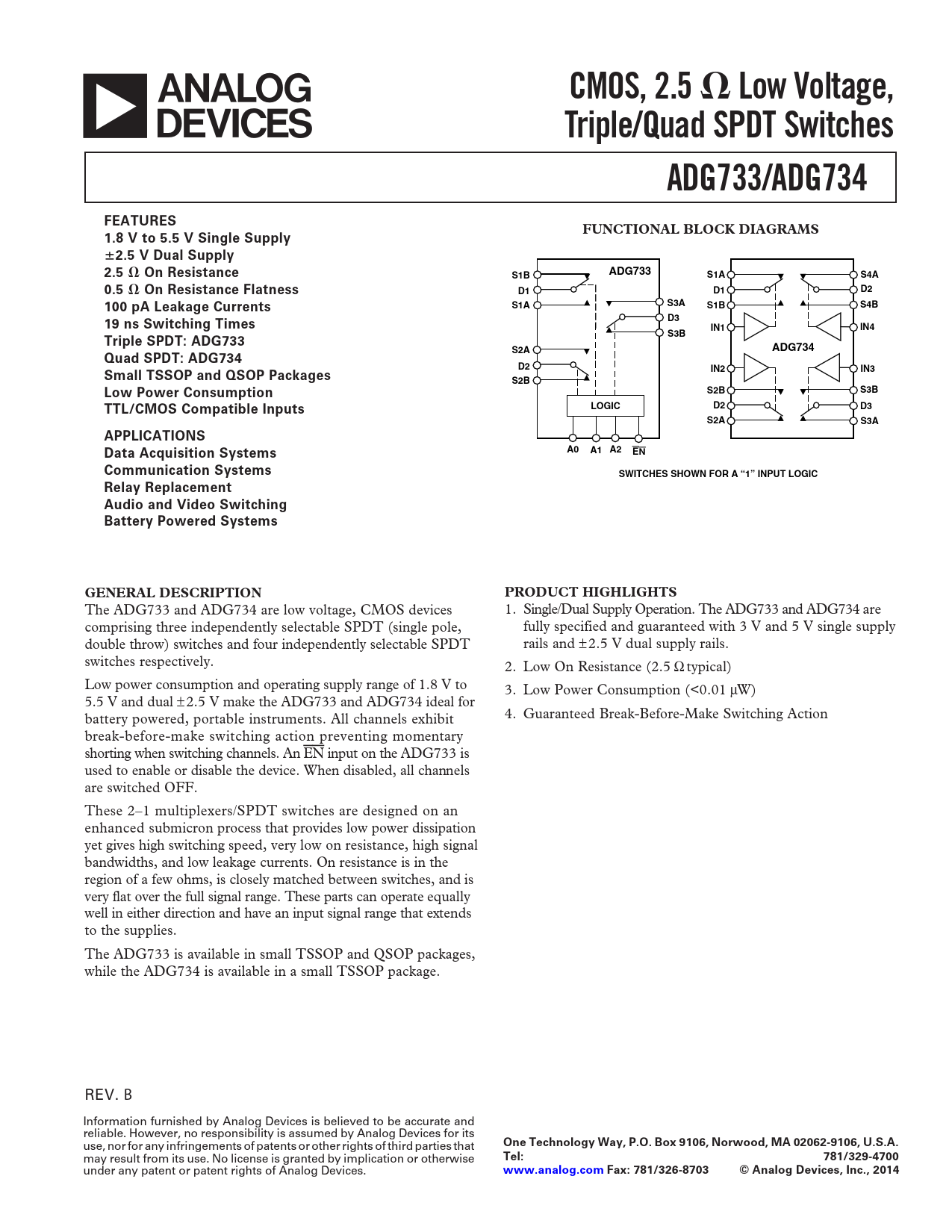

CMOS, 2.5. Low Voltage,. Triple/Quad SPDT Switches. ADG733/ADG734. FEATURES. FUNCTIONAL BLOCK DIAGRAMS

Datasheet ADG733, ADG734 Analog Devices, Revision: B

Modelllinie für dieses Datenblatt

Textversion des Dokuments

a
CMOS, 2.5 Low Voltage, Triple/Quad SPDT Switches ADG733/ADG734 FEATURES FUNCTIONAL BLOCK DIAGRAMS 1.8 V to 5.5 V Single Supply 2.5 V Dual Supply 2.5 On Resistance ADG733 S1B S1A S4A 0.5 On Resistance Flatness D1 D1 D2 100 pA Leakage Currents S1A S3A S1B S4B 19 ns Switching Times D3 IN1 IN4 S3B Triple SPDT: ADG733 S2A ADG734 Quad SPDT: ADG734 D2 IN2 IN3 Small TSSOP and QSOP Packages S2B Low Power Consumption S2B S3B TTL/CMOS Compatible Inputs LOGIC D2 D3 S2A S3A APPLICATIONS Data Acquisition Systems A0 A1 A2 EN Communication Systems SWITCHES SHOWN FOR A “1” INPUT LOGIC Relay Replacement Audio and Video Switching Battery Powered Systems GENERAL DESCRIPTION PRODUCT HIGHLIGHTS
The ADG733 and ADG734 are low voltage, CMOS devices 1. Single/Dual Supply Operation. The ADG733 and ADG734 are comprising three independently selectable SPDT (single pole, fully specified and guaranteed with 3 V and 5 V single supply double throw) switches and four independently selectable SPDT rails and ± 2.5 V dual supply rails. switches respectively. 2. Low On Resistance (2.5 Ω typical) Low power consumption and operating supply range of 1.8 V to 3. Low Power Consumption (<0.01 µW) 5.5 V and dual ±2.5 V make the ADG733 and ADG734 ideal for battery powered, portable instruments. All channels exhibit 4. Guaranteed Break-Before-Make Switching Action break-before-make switching action preventing momentary shorting when switching channels. An EN input on the ADG733 is used to enable or disable the device. When disabled, all channels are switched OFF. These 2–1 multiplexers/SPDT switches are designed on an enhanced submicron process that provides low power dissipation yet gives high switching speed, very low on resistance, high signal bandwidths, and low leakage currents. On resistance is in the region of a few ohms, is closely matched between switches, and is very flat over the full signal range. These parts can operate equally well in either direction and have an input signal range that extends to the supplies. The ADG733 is available in small TSSOP and QSOP packages, while the ADG734 is available in a small TSSOP package. REV. B Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
may result from its use. No license is granted by implication or otherwise
Tel: 781/329-4700
under any patent or patent rights of Analog Devices.
www.analog.com Fax: 781/326-8703 © Analog Devices, Inc., 2014
Document Outline Features Applications General Description Functional Block Diagrams Product Highlights Specifications Absolute Maximum Ratings Pin Configurations Terminology Typical Performance Characteristics Test Circuits Outline Dimensions Ordering Guide Revision History
