Datasheet ADG611, ADG612, ADG613 (Analog Devices) - 5

HerstellerAnalog Devices
Beschreibung1 pC Charge Injection, 100 pA Leakage, CMOS, ±5 V/+5 V/+3 V, Quad SPST Switches
Seiten / Seite16 / 5 — ADG611/ADG612/ADG613. Table 3. Parameter. +25°C. −40°C to +85°C. −40°C to …
RevisionA
Dateiformat / GrößePDF / 364 Kb
DokumentenspracheEnglisch

ADG611/ADG612/ADG613. Table 3. Parameter. +25°C. −40°C to +85°C. −40°C to +125°C1. Unit. Test Conditions/Comments

ADG611/ADG612/ADG613 Table 3 Parameter +25°C −40°C to +85°C −40°C to +125°C1 Unit Test Conditions/Comments

Modelllinie für dieses Datenblatt

Textversion des Dokuments

link to page 5 link to page 11 link to page 11 link to page 11 link to page 11 link to page 11 link to page 11 link to page 11 link to page 5 link to page 11 link to page 11 link to page 11 link to page 11 link to page 11 link to page 11 link to page 11 link to page 12 link to page 12 link to page 12

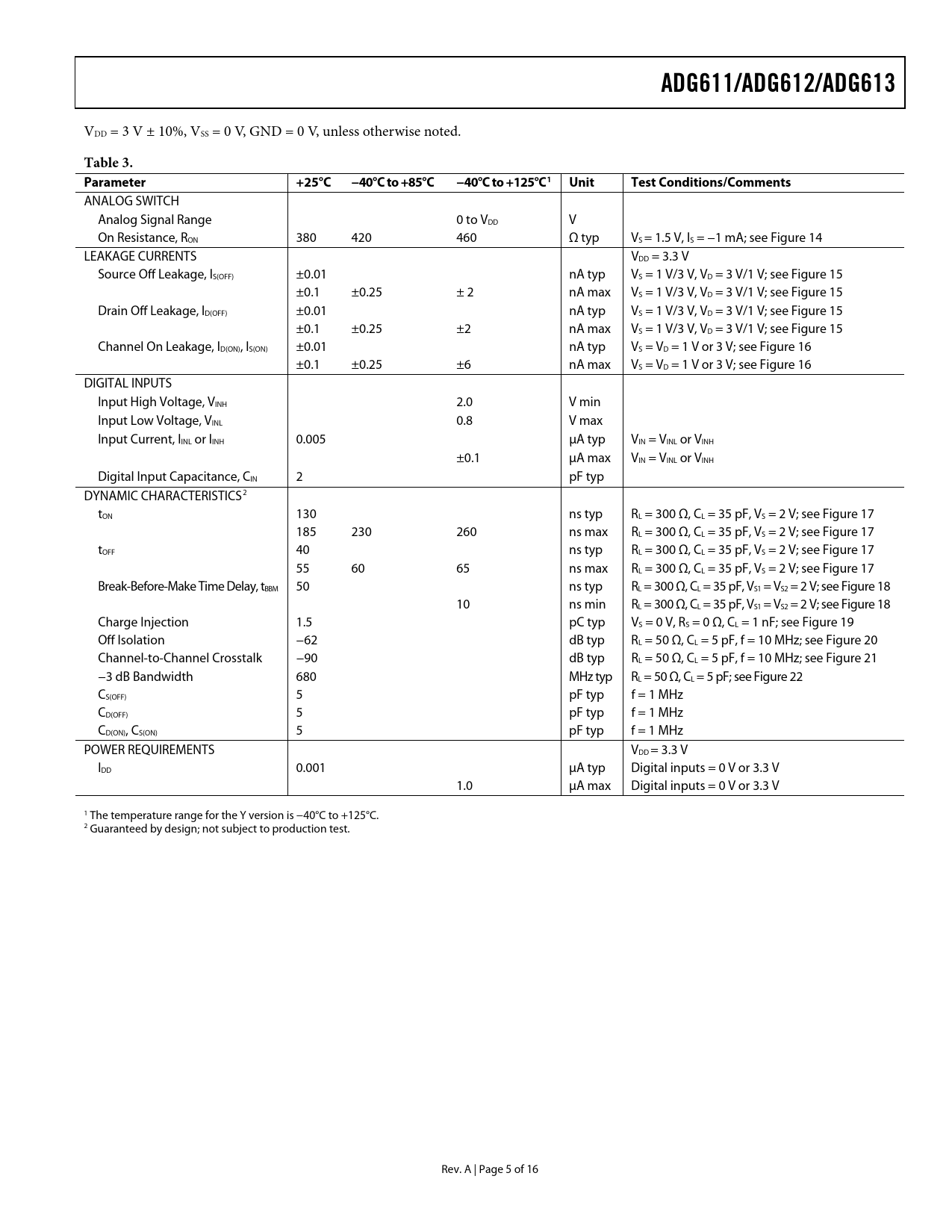

ADG611/ADG612/ADG613
VDD = 3 V ± 10%, VSS = 0 V, GND = 0 V, unless otherwise noted.
Table 3. Parameter +25°C −40°C to +85°C −40°C to +125°C1 Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 to VDD V On Resistance, RON 380 420 460 Ω typ VS = 1.5 V, IS = −1 mA; see Figure 14 LEAKAGE CURRENTS VDD = 3.3 V Source Off Leakage, IS(OFF) ±0.01 nA typ VS = 1 V/3 V, VD = 3 V/1 V; see Figure 15 ±0.1 ±0.25 ± 2 nA max VS = 1 V/3 V, VD = 3 V/1 V; see Figure 15 Drain Off Leakage, ID(OFF) ±0.01 nA typ VS = 1 V/3 V, VD = 3 V/1 V; see Figure 15 ±0.1 ±0.25 ±2 nA max VS = 1 V/3 V, VD = 3 V/1 V; see Figure 15 Channel On Leakage, ID(ON), IS(ON) ±0.01 nA typ VS = VD = 1 V or 3 V; see Figure 16 ±0.1 ±0.25 ±6 nA max VS = VD = 1 V or 3 V; see Figure 16 DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH 0.005 μA typ VIN = VINL or VINH ±0.1 μA max VIN = VINL or VINH Digital Input Capacitance, CIN 2 pF typ DYNAMIC CHARACTERISTICS2 tON 130 ns typ RL = 300 Ω, CL = 35 pF, VS = 2 V; see Figure 17 185 230 260 ns max RL = 300 Ω, CL = 35 pF, VS = 2 V; see Figure 17 tOFF 40 ns typ RL = 300 Ω, CL = 35 pF, VS = 2 V; see Figure 17 55 60 65 ns max RL = 300 Ω, CL = 35 pF, VS = 2 V; see Figure 17 Break-Before-Make Time Delay, tBBM 50 ns typ RL = 300 Ω, CL = 35 pF, VS1 = VS2 = 2 V; see Figure 18 10 ns min RL = 300 Ω, CL = 35 pF, VS1 = VS2 = 2 V; see Figure 18 Charge Injection 1.5 pC typ VS = 0 V, RS = 0 Ω, CL = 1 nF; see Figure 19 Off Isolation −62 dB typ RL = 50 Ω, CL = 5 pF, f = 10 MHz; see Figure 20 Channel-to-Channel Crosstalk −90 dB typ RL = 50 Ω, CL = 5 pF, f = 10 MHz; see Figure 21 −3 dB Bandwidth 680 MHz typ RL = 50 Ω, CL = 5 pF; see Figure 22 CS(OFF) 5 pF typ f = 1 MHz CD(OFF) 5 pF typ f = 1 MHz CD(ON), CS(ON) 5 pF typ f = 1 MHz POWER REQUIREMENTS VDD = 3.3 V IDD 0.001 μA typ Digital inputs = 0 V or 3.3 V 1.0 μA max Digital inputs = 0 V or 3.3 V 1 The temperature range for the Y version is −40°C to +125°C. 2 Guaranteed by design; not subject to production test. Rev. A | Page 5 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL-SUPPLY OPERATION SINGLE-SUPPLY OPERATION ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY TEST CIRCUITS APPLICATIONS INFORMATION OUTLINE DIMENSIONS ORDERING GUIDE
