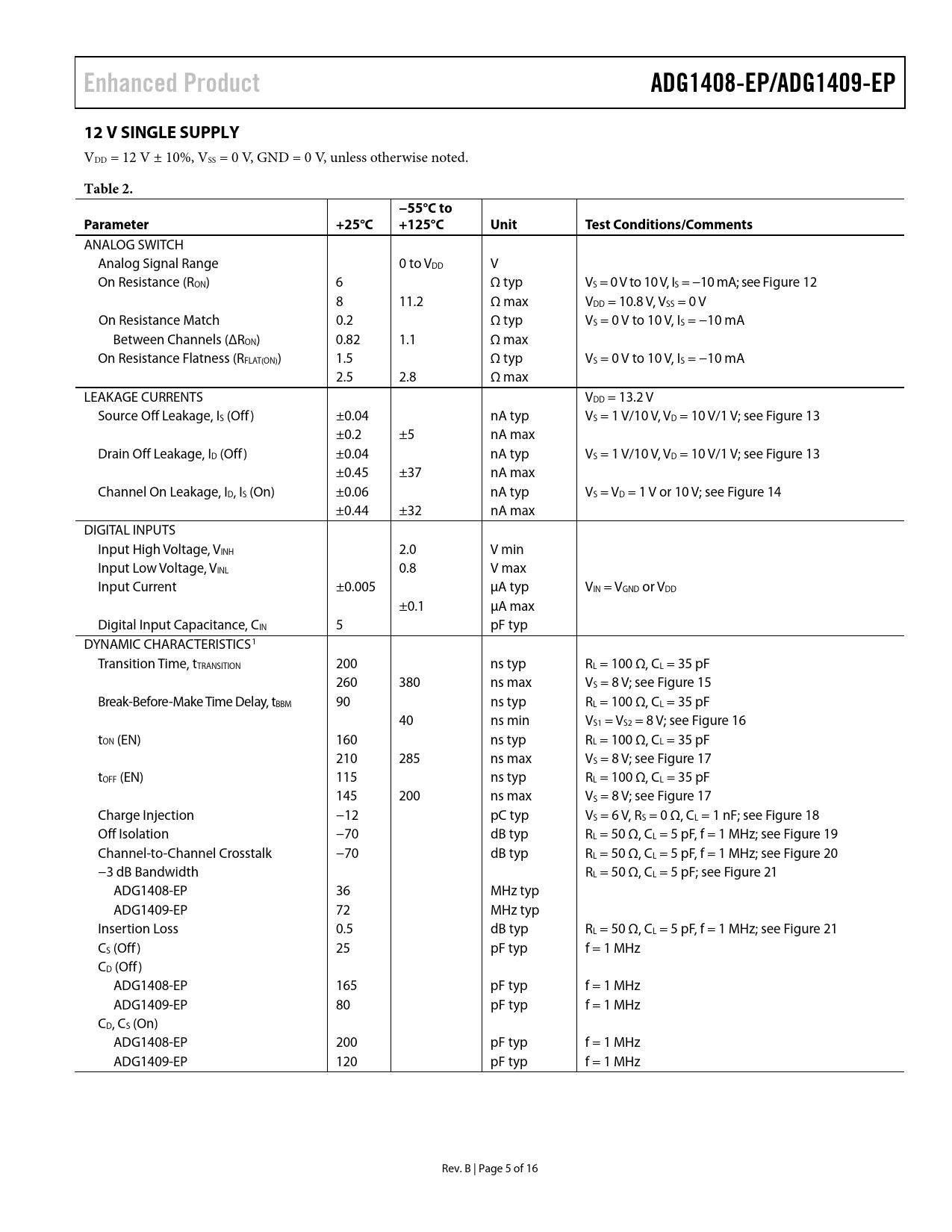

Enhanced Product ADG1408-EP/ADG1409-EP 12 V SINGLE SUPPLY
VDD = 12 V ± 10%, VSS = 0 V, GND = 0 V, unless otherwise noted.
Table 2. −55°C to Parameter +25°C +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 to VDD V On Resistance (RON) 6 Ω typ VS = 0 V to 10 V, IS = −10 mA; see Figure 12 8 11.2 Ω max VDD = 10.8 V, VSS = 0 V On Resistance Match 0.2 Ω typ VS = 0 V to 10 V, IS = −10 mA Between Channels (ΔRON) 0.82 1.1 Ω max On Resistance Flatness (RFLAT(ON)) 1.5 Ω typ VS = 0 V to 10 V, IS = −10 mA 2.5 2.8 Ω max LEAKAGE CURRENTS VDD = 13.2 V Source Off Leakage, IS (Off) ±0.04 nA typ VS = 1 V/10 V, VD = 10 V/1 V; see Figure 13 ±0.2 ±5 nA max Drain Off Leakage, ID (Off) ±0.04 nA typ VS = 1 V/10 V, VD = 10 V/1 V; see Figure 13 ±0.45 ±37 nA max Channel On Leakage, ID, IS (On) ±0.06 nA typ VS = VD = 1 V or 10 V; see Figure 14 ±0.44 ±32 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current ±0.005 µA typ VIN = VGND or VDD ±0.1 µA max Digital Input Capacitance, CIN 5 pF typ DYNAMIC CHARACTERISTICS1 Transition Time, tTRANSITION 200 ns typ RL = 100 Ω, CL = 35 pF 260 380 ns max VS = 8 V; see Figure 15 Break-Before-Make Time Delay, tBBM 90 ns typ RL = 100 Ω, CL = 35 pF 40 ns min VS1 = VS2 = 8 V; see Figure 16 tON (EN) 160 ns typ RL = 100 Ω, CL = 35 pF 210 285 ns max VS = 8 V; see Figure 17 tOFF (EN) 115 ns typ RL = 100 Ω, CL = 35 pF 145 200 ns max VS = 8 V; see Figure 17 Charge Injection −12 pC typ VS = 6 V, RS = 0 Ω, CL = 1 nF; see Figure 18 Off Isolation −70 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 19 Channel-to-Channel Crosstalk −70 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 20 −3 dB Bandwidth RL = 50 Ω, CL = 5 pF; see Figure 21 ADG1408-EP 36 MHz typ ADG1409-EP 72 MHz typ Insertion Loss 0.5 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 21 CS (Off) 25 pF typ f = 1 MHz CD (Off) ADG1408-EP 165 pF typ f = 1 MHz ADG1409-EP 80 pF typ f = 1 MHz CD, CS (On) ADG1408-EP 200 pF typ f = 1 MHz ADG1409-EP 120 pF typ f = 1 MHz Rev. B | Page 5 of 16 Document Outline FEATURES ENHANCED PRODUCT FEATURES FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS 15 V DUAL SUPPLY 12 V SINGLE SUPPLY 5 V DUAL SUPPLY CONTINUOUS CURRENT PER CHANNEL, S OR D ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
Enhanced Product ADG1408-EP/ADG1409-EP 12 V SINGLE SUPPLY
VDD = 12 V ± 10%, VSS = 0 V, GND = 0 V, unless otherwise noted.
Table 2. −55°C to Parameter +25°C +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 to VDD V On Resistance (RON) 6 Ω typ VS = 0 V to 10 V, IS = −10 mA; see Figure 12 8 11.2 Ω max VDD = 10.8 V, VSS = 0 V On Resistance Match 0.2 Ω typ VS = 0 V to 10 V, IS = −10 mA Between Channels (ΔRON) 0.82 1.1 Ω max On Resistance Flatness (RFLAT(ON)) 1.5 Ω typ VS = 0 V to 10 V, IS = −10 mA 2.5 2.8 Ω max LEAKAGE CURRENTS VDD = 13.2 V Source Off Leakage, IS (Off) ±0.04 nA typ VS = 1 V/10 V, VD = 10 V/1 V; see Figure 13 ±0.2 ±5 nA max Drain Off Leakage, ID (Off) ±0.04 nA typ VS = 1 V/10 V, VD = 10 V/1 V; see Figure 13 ±0.45 ±37 nA max Channel On Leakage, ID, IS (On) ±0.06 nA typ VS = VD = 1 V or 10 V; see Figure 14 ±0.44 ±32 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current ±0.005 µA typ VIN = VGND or VDD ±0.1 µA max Digital Input Capacitance, CIN 5 pF typ DYNAMIC CHARACTERISTICS1 Transition Time, tTRANSITION 200 ns typ RL = 100 Ω, CL = 35 pF 260 380 ns max VS = 8 V; see Figure 15 Break-Before-Make Time Delay, tBBM 90 ns typ RL = 100 Ω, CL = 35 pF 40 ns min VS1 = VS2 = 8 V; see Figure 16 tON (EN) 160 ns typ RL = 100 Ω, CL = 35 pF 210 285 ns max VS = 8 V; see Figure 17 tOFF (EN) 115 ns typ RL = 100 Ω, CL = 35 pF 145 200 ns max VS = 8 V; see Figure 17 Charge Injection −12 pC typ VS = 6 V, RS = 0 Ω, CL = 1 nF; see Figure 18 Off Isolation −70 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 19 Channel-to-Channel Crosstalk −70 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 20 −3 dB Bandwidth RL = 50 Ω, CL = 5 pF; see Figure 21 ADG1408-EP 36 MHz typ ADG1409-EP 72 MHz typ Insertion Loss 0.5 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 21 CS (Off) 25 pF typ f = 1 MHz CD (Off) ADG1408-EP 165 pF typ f = 1 MHz ADG1409-EP 80 pF typ f = 1 MHz CD, CS (On) ADG1408-EP 200 pF typ f = 1 MHz ADG1409-EP 120 pF typ f = 1 MHz Rev. B | Page 5 of 16 Document Outline FEATURES ENHANCED PRODUCT FEATURES FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS 15 V DUAL SUPPLY 12 V SINGLE SUPPLY 5 V DUAL SUPPLY CONTINUOUS CURRENT PER CHANNEL, S OR D ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
