Datasheet ADG1406, ADG1407 (Analog Devices) - 4
| Hersteller | Analog Devices |
| Beschreibung | 9.5 Ω RON, 16-Channel, Differential 8-Channel, ±15 V/+12 V/±5 V iCMOS Multiplexers |
| Seiten / Seite | 20 / 4 — ADG1406/ADG1407. Data Sheet. −40°C to. Parameter +25°C. +85°C. +125°C. … |
| Revision | C |
| Dateiformat / Größe | PDF / 511 Kb |
| Dokumentensprache | Englisch |

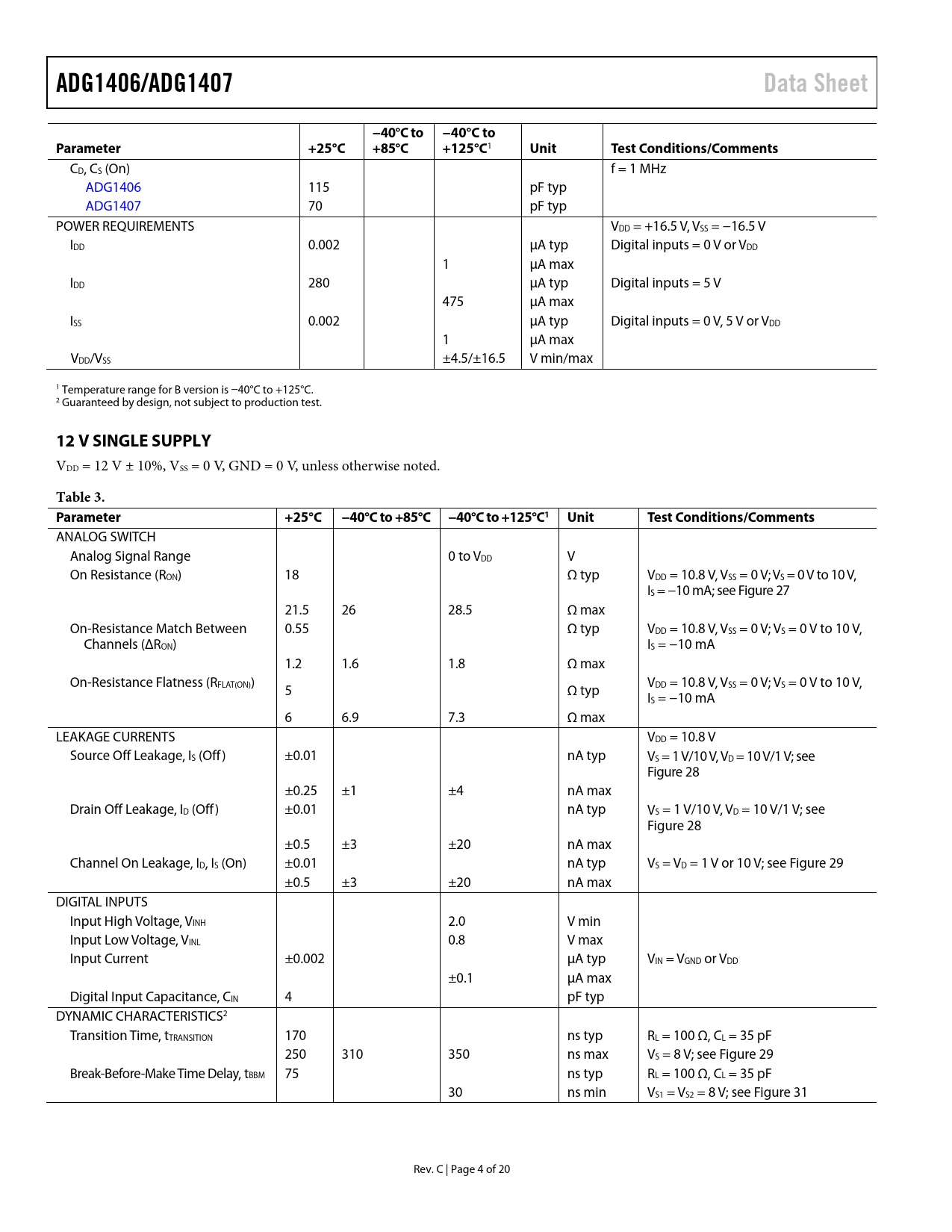

ADG1406/ADG1407. Data Sheet. −40°C to. Parameter +25°C. +85°C. +125°C. Unit. Test. Conditions/Comments. 12 V SINGLE SUPPLY
Modelllinie für dieses Datenblatt
Textversion des Dokuments
link to page 18 link to page 18 link to page 18 link to page 18 link to page 18 link to page 18 link to page 5 link to page 5
ADG1406/ADG1407 Data Sheet −40°C to −40°C to Parameter +25°C +85°C +125°C
1
Unit Test Conditions/Comments
CD, CS (On) f = 1 MHz ADG1406 115 pF typ ADG1407 70 pF typ POWER REQUIREMENTS VDD = +16.5 V, VSS = −16.5 V IDD 0.002 μA typ Digital inputs = 0 V or VDD 1 μA max IDD 280 μA typ Digital inputs = 5 V 475 μA max ISS 0.002 μA typ Digital inputs = 0 V, 5 V or VDD 1 μA max VDD/VSS ±4.5/±16.5 V min/max 1 Temperature range for B version is −40°C to +125°C. 2 Guaranteed by design, not subject to production test.
12 V SINGLE SUPPLY
VDD = 12 V ± 10%, VSS = 0 V, GND = 0 V, unless otherwise noted.
Table 3. Parameter +25°C −40°C to +85°C −40°C to +125°C1 Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 to VDD V On Resistance (RON) 18 Ω typ VDD = 10.8 V, VSS = 0 V; VS = 0 V to 10 V, IS = −10 mA; see Figure 27 21.5 26 28.5 Ω max On-Resistance Match Between 0.55 Ω typ VDD = 10.8 V, VSS = 0 V; VS = 0 V to 10 V, Channels (ΔRON) IS = −10 mA 1.2 1.6 1.8 Ω max On-Resistance Flatness (RFLAT(ON)) V 5 Ω typ DD = 10.8 V, VSS = 0 V; VS = 0 V to 10 V, IS = −10 mA 6 6.9 7.3 Ω max LEAKAGE CURRENTS VDD = 10.8 V Source Off Leakage, IS (Off ) ±0.01 nA typ VS = 1 V/10 V, VD = 10 V/1 V; see Figure 28 ±0.25 ±1 ±4 nA max Drain Off Leakage, ID (Off ) ±0.01 nA typ VS = 1 V/10 V, VD = 10 V/1 V; see Figure 28 ±0.5 ±3 ±20 nA max Channel On Leakage, ID, IS (On) ±0.01 nA typ VS = VD = 1 V or 10 V; see Figure 29 ±0.5 ±3 ±20 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current ±0.002 μA typ VIN = VGND or VDD ±0.1 μA max Digital Input Capacitance, CIN 4 pF typ DYNAMIC CHARACTERISTICS2 Transition Time, tTRANSITION 170 ns typ RL = 100 Ω, CL = 35 pF 250 310 350 ns max VS = 8 V; see Figure 29 Break-Before-Make Time Delay, tBBM 75 ns typ RL = 100 Ω, CL = 35 pF 30 ns min VS1 = VS2 = 8 V; see Figure 31 Rev. C | Page 4 of 20 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±15 V DUAL SUPPLY 12 V SINGLE SUPPLY ±5 V DUAL SUPPLY CONTINUOUS CURRENT PER CHANNEL ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
