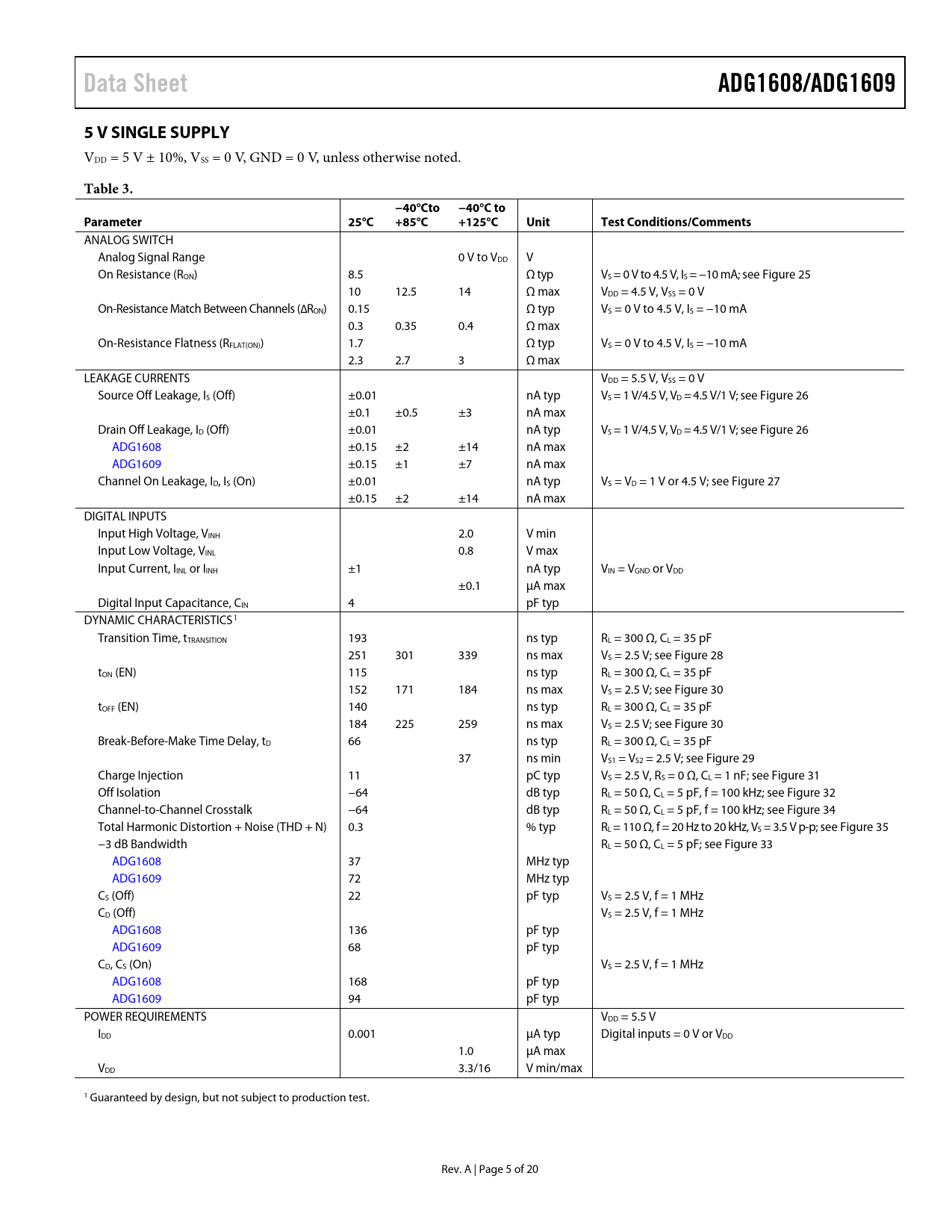

Data Sheet ADG1608/ADG1609 5 V SINGLE SUPPLY
VDD = 5 V ± 10%, VSS = 0 V, GND = 0 V, unless otherwise noted.
Table 3. −40°Cto −40°C to Parameter 25°C +85°C +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 V to VDD V On Resistance (RON) 8.5 Ω typ VS = 0 V to 4.5 V, IS = −10 mA; see Figure 25 10 12.5 14 Ω max VDD = 4.5 V, VSS = 0 V On-Resistance Match Between Channels (∆RON) 0.15 Ω typ VS = 0 V to 4.5 V, IS = −10 mA 0.3 0.35 0.4 Ω max On-Resistance Flatness (RFLAT(ON)) 1.7 Ω typ VS = 0 V to 4.5 V, IS = −10 mA 2.3 2.7 3 Ω max LEAKAGE CURRENTS VDD = 5.5 V, VSS = 0 V Source Off Leakage, IS (Off) ±0.01 nA typ VS = 1 V/4.5 V, VD = 4.5 V/1 V; see Figure 26 ±0.1 ±0.5 ±3 nA max Drain Off Leakage, ID (Off) ±0.01 nA typ VS = 1 V/4.5 V, VD = 4.5 V/1 V; see Figure 26 ADG1608 ±0.15 ±2 ±14 nA max ADG1609 ±0.15 ±1 ±7 nA max Channel On Leakage, ID, IS (On) ±0.01 nA typ VS = VD = 1 V or 4.5 V; see Figure 27 ±0.15 ±2 ±14 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH ±1 nA typ VIN = VGND or VDD ±0.1 µA max Digital Input Capacitance, CIN 4 pF typ DYNAMIC CHARACTERISTICS1 Transition Time, tTRANSITION 193 ns typ RL = 300 Ω, CL = 35 pF 251 301 339 ns max VS = 2.5 V; see Figure 28 tON (EN) 115 ns typ RL = 300 Ω, CL = 35 pF 152 171 184 ns max VS = 2.5 V; see Figure 30 tOFF (EN) 140 ns typ RL = 300 Ω, CL = 35 pF 184 225 259 ns max VS = 2.5 V; see Figure 30 Break-Before-Make Time Delay, tD 66 ns typ RL = 300 Ω, CL = 35 pF 37 ns min VS1 = VS2 = 2.5 V; see Figure 29 Charge Injection 11 pC typ VS = 2.5 V, RS = 0 Ω, CL = 1 nF; see Figure 31 Off Isolation −64 dB typ RL = 50 Ω, CL = 5 pF, f = 100 kHz; see Figure 32 Channel-to-Channel Crosstalk −64 dB typ RL = 50 Ω, CL = 5 pF, f = 100 kHz; see Figure 34 Total Harmonic Distortion + Noise (THD + N) 0.3 % typ RL = 110 Ω, f = 20 Hz to 20 kHz, VS = 3.5 V p-p; see Figure 35 −3 dB Bandwidth RL = 50 Ω, CL = 5 pF; see Figure 33 ADG1608 37 MHz typ ADG1609 72 MHz typ CS (Off) 22 pF typ VS = 2.5 V, f = 1 MHz CD (Off) VS = 2.5 V, f = 1 MHz ADG1608 136 pF typ ADG1609 68 pF typ CD, CS (On) VS = 2.5 V, f = 1 MHz ADG1608 168 pF typ ADG1609 94 pF typ POWER REQUIREMENTS VDD = 5.5 V IDD 0.001 µA typ Digital inputs = 0 V or VDD 1.0 µA max VDD 3.3/16 V min/max 1 Guaranteed by design, but not subject to production test. Rev. A | Page 5 of 20 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±5 V DUAL SUPPLY 12 V SINGLE SUPPLY 5 V SINGLE SUPPLY 3.3 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, S OR D ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
