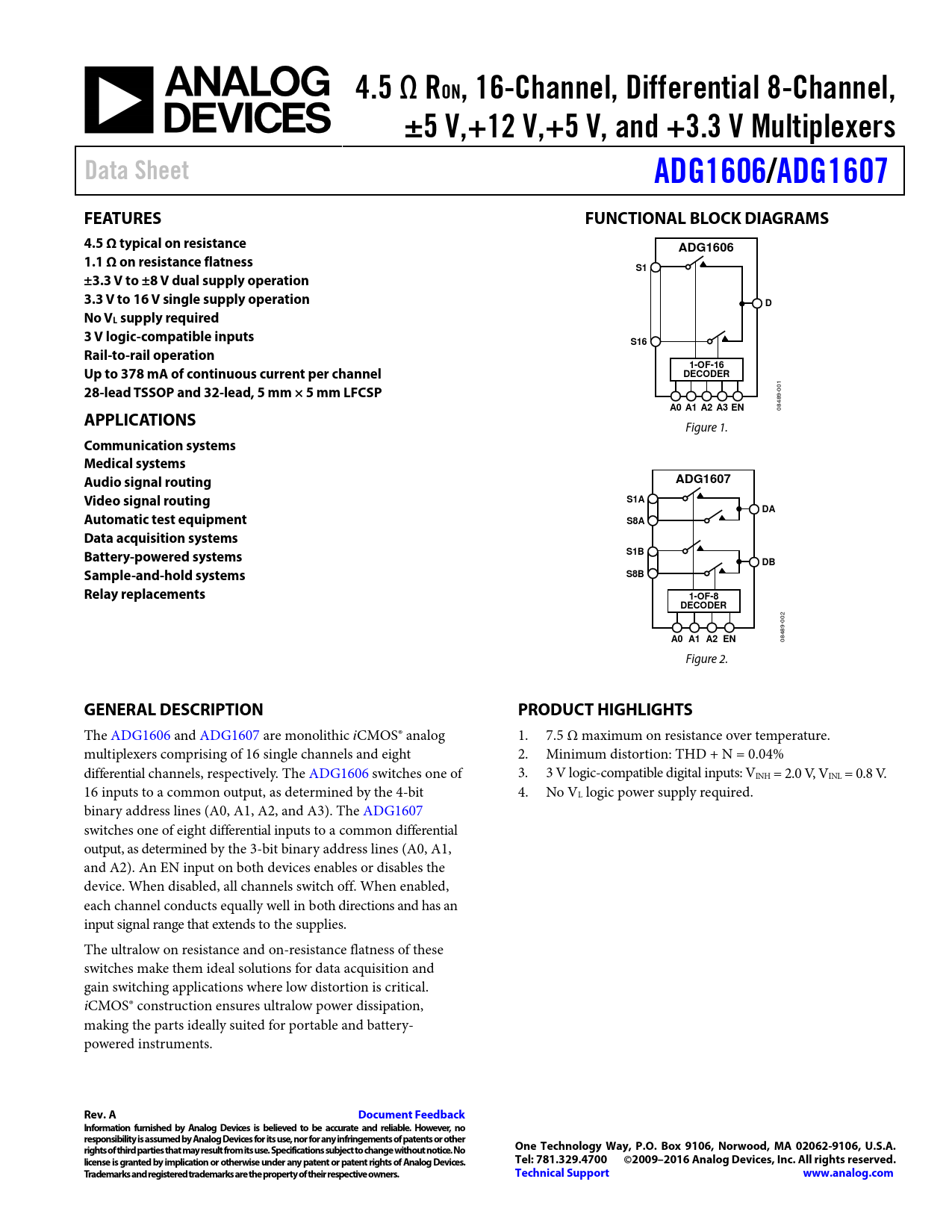

4.5 Ω RON, 16-Channel, Differential 8-Channel, ±5 V,+12 V,+5 V, and +3.3 V Multiplexers Data Sheet ADG1606/ ADG1607 FEATURES FUNCTIONAL BLOCK DIAGRAMS 4.5 Ω typical on resistance ADG1606 1.1 Ω on resistance flatness S1 ±3.3 V to ±8 V dual supply operation 3.3 V to 16 V single supply operation D No VL supply required 3 V logic-compatible inputs S16 Rail-to-rail operation 1-OF-16 Up to 378 mA of continuous current per channel DECODER 28-lead TSSOP and 32-lead, 5 mm × 5 mm LFCSP
001
A0 A1 A2 A3 EN
08489-
APPLICATIONS
Figure 1.
Communication systems Medical systems Audio signal routing ADG1607 Video signal routing S1A DA Automatic test equipment S8A Data acquisition systems Battery-powered systems S1B DB Sample-and-hold systems S8B Relay replacements 1-OF-8 DECODER
002
A0 A1 A2 EN
08489- Figure 2.
GENERAL DESCRIPTION PRODUCT HIGHLIGHTS
The ADG1606 and ADG1607 are monolithic iCMOS® analog 1. 7.5 Ω maximum on resistance over temperature. multiplexers comprising of 16 single channels and eight 2. Minimum distortion: THD + N = 0.04% differential channels, respectively. The ADG1606 switches one of 3. 3 V logic-compatible digital inputs: VINH = 2.0 V, VINL = 0.8 V. 16 inputs to a common output, as determined by the 4-bit 4. No VL logic power supply required. binary address lines (A0, A1, A2, and A3). The ADG1607 switches one of eight differential inputs to a common differential output, as determined by the 3-bit binary address lines (A0, A1, and A2). An EN input on both devices enables or disables the device. When disabled, all channels switch off. When enabled, each channel conducts equally wel in both directions and has an input signal range that extends to the supplies. The ultralow on resistance and on-resistance flatness of these switches make them ideal solutions for data acquisition and gain switching applications where low distortion is critical. iCMOS® construction ensures ultralow power dissipation, making the parts ideally suited for portable and battery- powered instruments.
