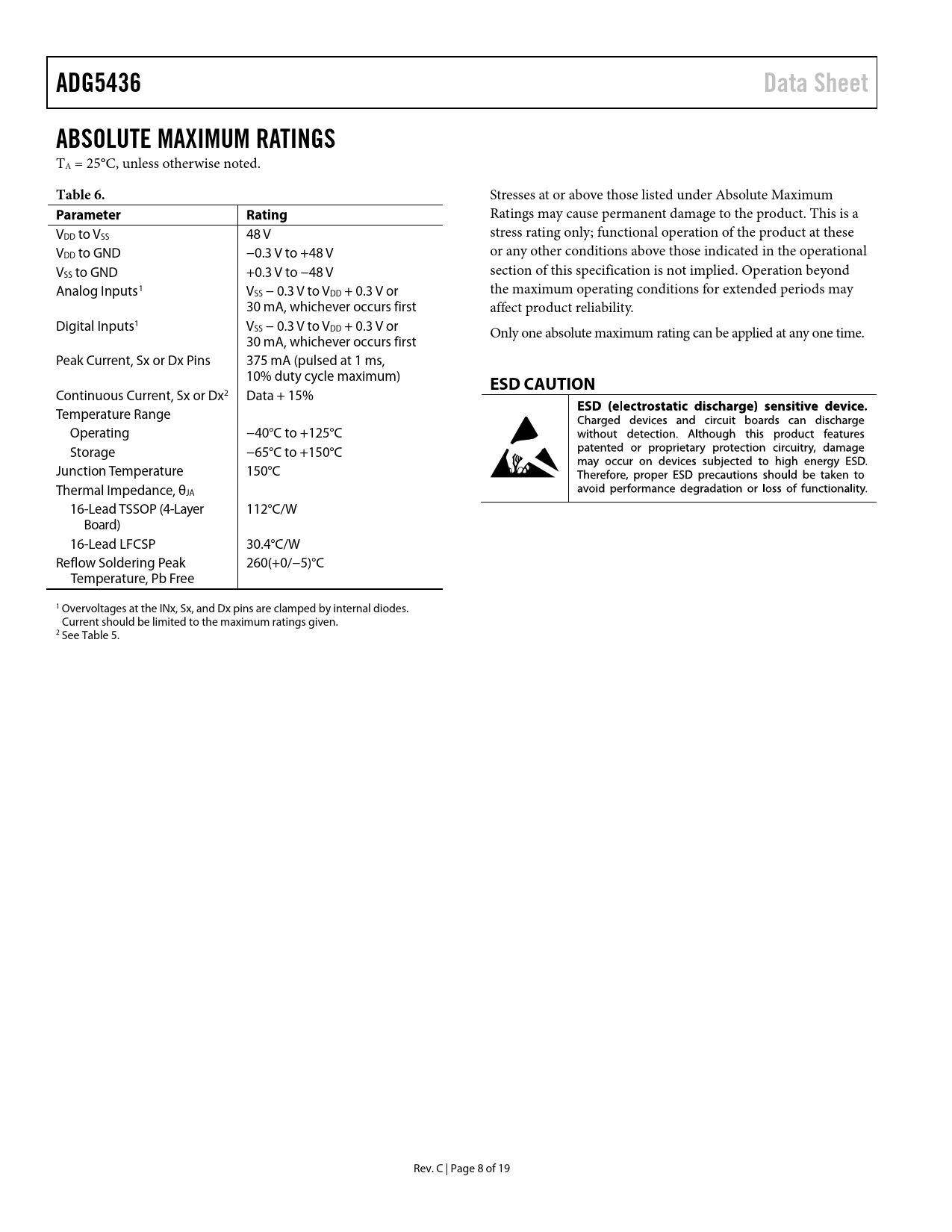

ADG5436 Data Sheet ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted.
Table 6.
Stresses at or above those listed under Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the product. This is a VDD to VSS 48 V stress rating only; functional operation of the product at these VDD to GND −0.3 V to +48 V or any other conditions above those indicated in the operational VSS to GND +0.3 V to −48 V section of this specification is not implied. Operation beyond Analog Inputs1 VSS − 0.3 V to VDD + 0.3 V or the maximum operating conditions for extended periods may 30 mA, whichever occurs first affect product reliability. Digital Inputs1 VSS − 0.3 V to VDD + 0.3 V or Only one absolute maximum rating can be applied at any one time. 30 mA, whichever occurs first Peak Current, Sx or Dx Pins 375 mA (pulsed at 1 ms, 10% duty cycle maximum)
ESD CAUTION
Continuous Current, Sx or Dx2 Data + 15% Temperature Range Operating −40°C to +125°C Storage −65°C to +150°C Junction Temperature 150°C Thermal Impedance, θJA 16-Lead TSSOP (4-Layer 112°C/W Board) 16-Lead LFCSP 30.4°C/W Reflow Soldering Peak 260(+0/−5)°C Temperature, Pb Free 1 Overvoltages at the INx, Sx, and Dx pins are clamped by internal diodes. Current should be limited to the maximum ratings given. 2 See Table 5. Rev. C | Page 8 of 19 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS REVISION HISTORY SPECIFICATIONS ±15 V DUAL SUPPLY ±20 V DUAL SUPPLY 12 V SINGLE SUPPLY 36 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, Sx OR Dx ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TRUTH TABLE FOR SWITCHES TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY TRENCH ISOLATION APPLICATIONS INFORMATION OUTLINE DIMENSIONS ORDERING GUIDE
