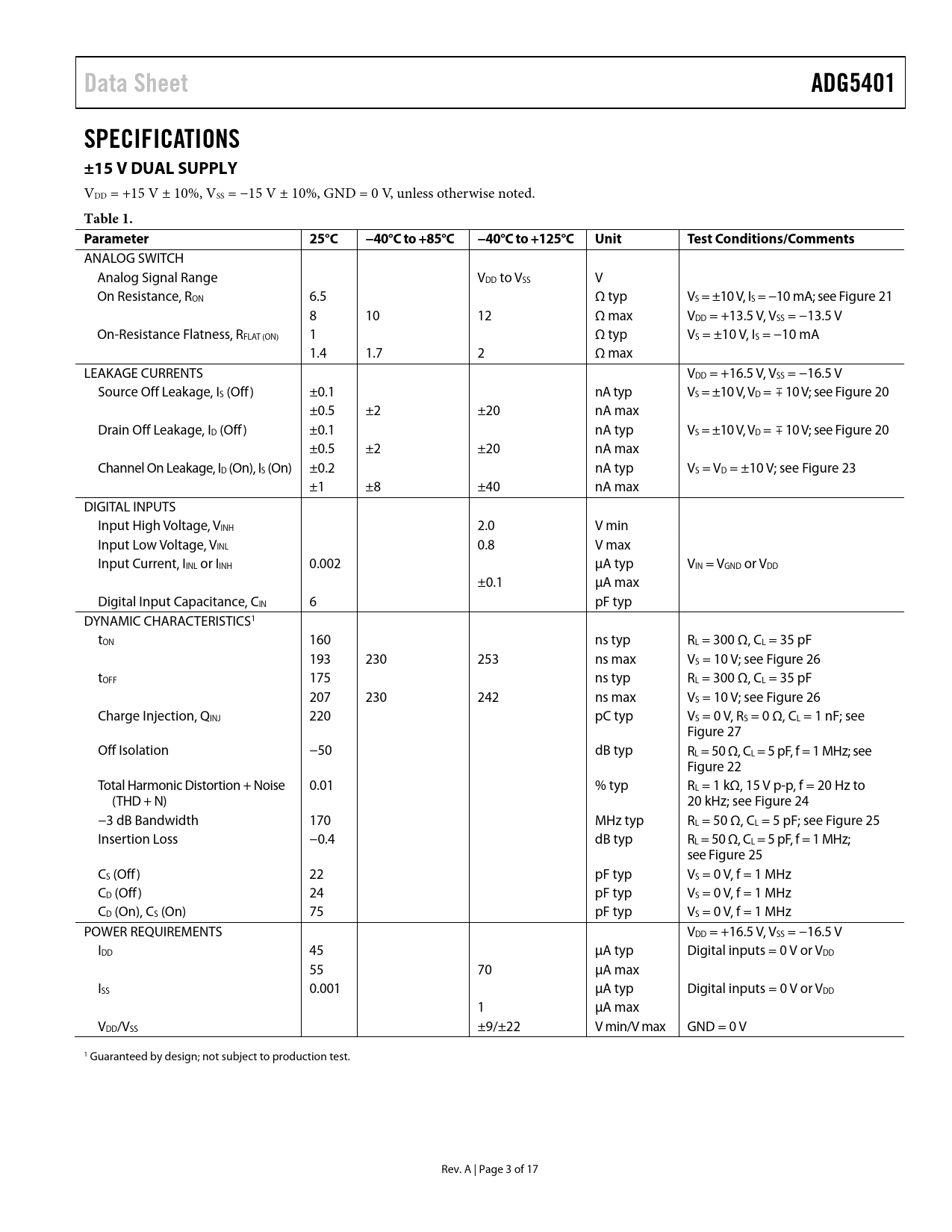

Data Sheet ADG5401 SPECIFICATIONS ±15 V DUAL SUPPLY
VDD = +15 V ± 10%, VSS = −15 V ± 10%, GND = 0 V, unless otherwise noted.
Table 1. Parameter 25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range VDD to VSS V On Resistance, RON 6.5 Ω typ VS = ±10 V, IS = −10 mA; see Figure 21 8 10 12 Ω max VDD = +13.5 V, VSS = −13.5 V On-Resistance Flatness, RFLAT (ON) 1 Ω typ VS = ±10 V, IS = −10 mA 1.4 1.7 2 Ω max LEAKAGE CURRENTS VDD = +16.5 V, VSS = −16.5 V Source Off Leakage, IS (Off) ±0.1 nA typ VS = ±10 V, VD =  10 V; see Figure 20 ±0.5 ±2 ±20 nA max Drain Off Leakage, ID (Off) ±0.1 nA typ VS = ±10 V, VD =  10 V; see Figure 20 ±0.5 ±2 ±20 nA max Channel On Leakage, ID (On), IS (On) ±0.2 nA typ VS = VD = ±10 V; see Figure 23 ±1 ±8 ±40 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH 0.002 µA typ VIN = VGND or VDD ±0.1 µA max Digital Input Capacitance, CIN 6 pF typ DYNAMIC CHARACTERISTICS1 tON 160 ns typ RL = 300 Ω, CL = 35 pF 193 230 253 ns max VS = 10 V; see Figure 26 tOFF 175 ns typ RL = 300 Ω, CL = 35 pF 207 230 242 ns max VS = 10 V; see Figure 26 Charge Injection, QINJ 220 pC typ VS = 0 V, RS = 0 Ω, CL = 1 nF; see Figure 27 Off Isolation −50 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 22 Total Harmonic Distortion + Noise 0.01 % typ RL = 1 kΩ, 15 V p-p, f = 20 Hz to (THD + N) 20 kHz; see Figure 24 −3 dB Bandwidth 170 MHz typ RL = 50 Ω, CL = 5 pF; see Figure 25 Insertion Loss −0.4 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 25 CS (Off) 22 pF typ VS = 0 V, f = 1 MHz CD (Off) 24 pF typ VS = 0 V, f = 1 MHz CD (On), CS (On) 75 pF typ VS = 0 V, f = 1 MHz POWER REQUIREMENTS VDD = +16.5 V, VSS = −16.5 V IDD 45 µA typ Digital inputs = 0 V or VDD 55 70 µA max ISS 0.001 µA typ Digital inputs = 0 V or VDD 1 µA max VDD/VSS ±9/±22 V min/V max GND = 0 V 1 Guaranteed by design; not subject to production test. Rev. A | Page 3 of 17 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±15 V DUAL SUPPLY ±20 V DUAL SUPPLY 12 V SINGLE SUPPLY 36 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, S OR D ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY APPLICATIONS INFORMATION TRENCH ISOLATION OUTLINE DIMENSIONS ORDERING GUIDE
