Datasheet SBG3030CT, SBG3040CT, SBG3045CT (Diodes)

HerstellerDiodes
Beschreibung30A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Seiten / Seite5 / 1 — NOT RECOMMENDED FOR NEW DESIGN -. NO ALTERNATE PART. SBG3030CT - …
Dateiformat / GrößePDF / 195 Kb
DokumentenspracheEnglisch

NOT RECOMMENDED FOR NEW DESIGN -. NO ALTERNATE PART. SBG3030CT - SBG3045CT. 30A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

Datasheet SBG3030CT, SBG3040CT, SBG3045CT Diodes

Modelllinie für dieses Datenblatt

Textversion des Dokuments

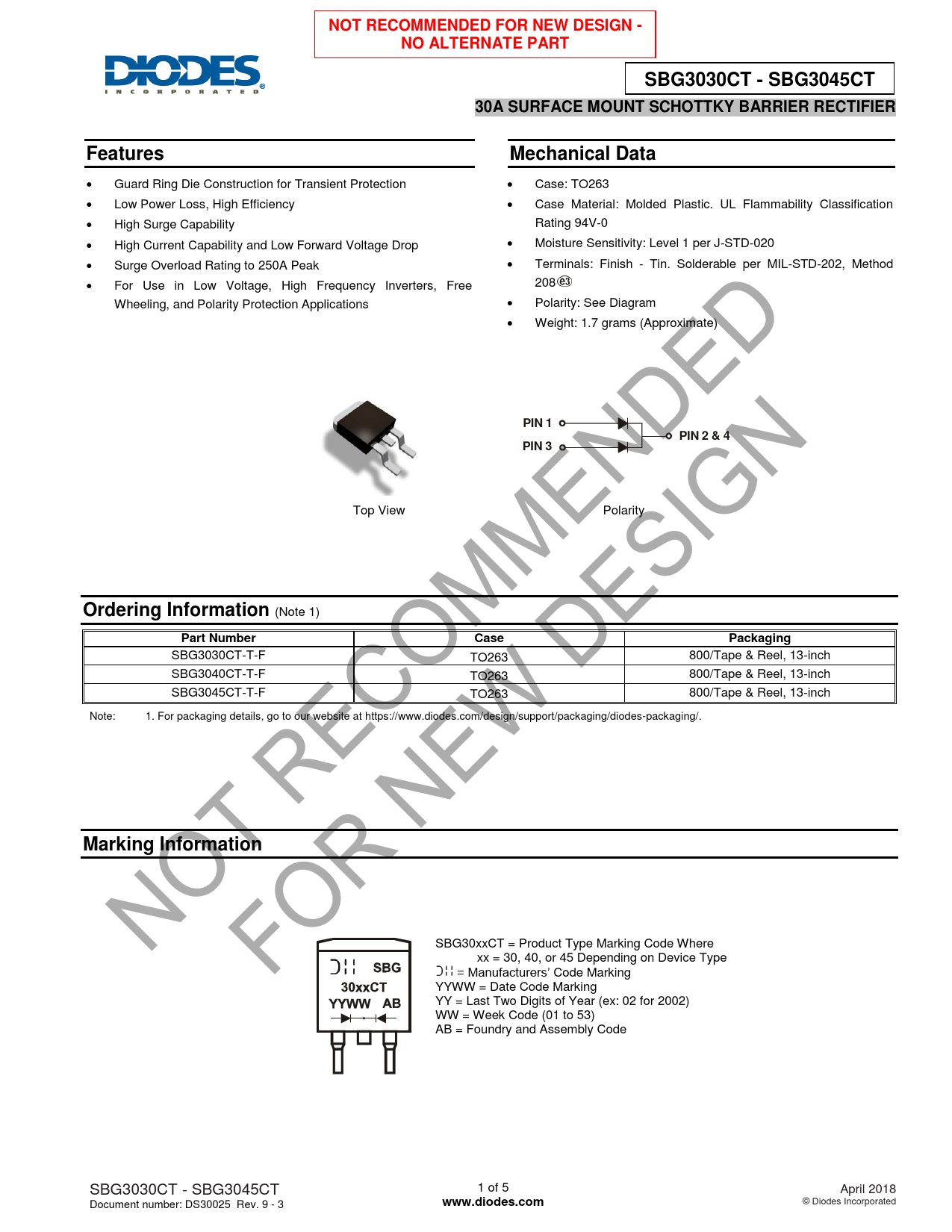

NOT RECOMMENDED FOR NEW DESIGN - NO ALTERNATE PART SBG3030CT - SBG3045CT 30A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER Features Mechanical Data
Guard Ring Die Construction for Transient Protection Case: TO263 Low Power Loss, High Efficiency Case Material: Molded Plastic. UL Flammability Classification High Surge Capability Rating 94V-0 High Current Capability and Low Forward Voltage Drop Moisture Sensitivity: Level 1 per J-STD-020 Surge Overload Rating to 250A Peak Terminals: Finish - Tin. Solderable per MIL-STD-202, Method For Use in Low Voltage, High Frequency Inverters, Free 208 Wheeling, and Polarity Protection Applications Polarity: See Diagram Weight: 1.7 grams (Approximate)
PIN 1 PIN 2 & 4 PIN 3
Top View Polarity
Ordering Information
(Note 1)
Part Number Case Packaging
SBG3030CT-T-F TO263 800/Tape & Reel, 13-inch SBG3040CT-T-F TO263 800/Tape & Reel, 13-inch SBG3045CT-T-F TO263 800/Tape & Reel, 13-inch Note: 1. For packaging details, go to our website at https://www.diodes.com/design/support/packaging/diodes-packaging/.
Marking Information
SBG30xxCT = Product Type Marking Code Where xx = 30, 40, or 45 Depending on Device Type = Manufacturers’ Code Marking YYWW = Date Code Marking YY = Last Two Digits of Year (ex: 02 for 2002) WW = Week Code (01 to 53) AB = Foundry and Assembly Code SBG3030CT - SBG3045CT 1 of 5 April 2018 Document number: DS30025 Rev. 9 - 3
