Electrical characteristics. TS3702. 3 Electrical. characteristics. Table 3

Electrical characteristics TS3702 3 Electrical characteristics Table 3

Modelllinie für dieses Datenblatt

Textversion des Dokuments

link to page 4

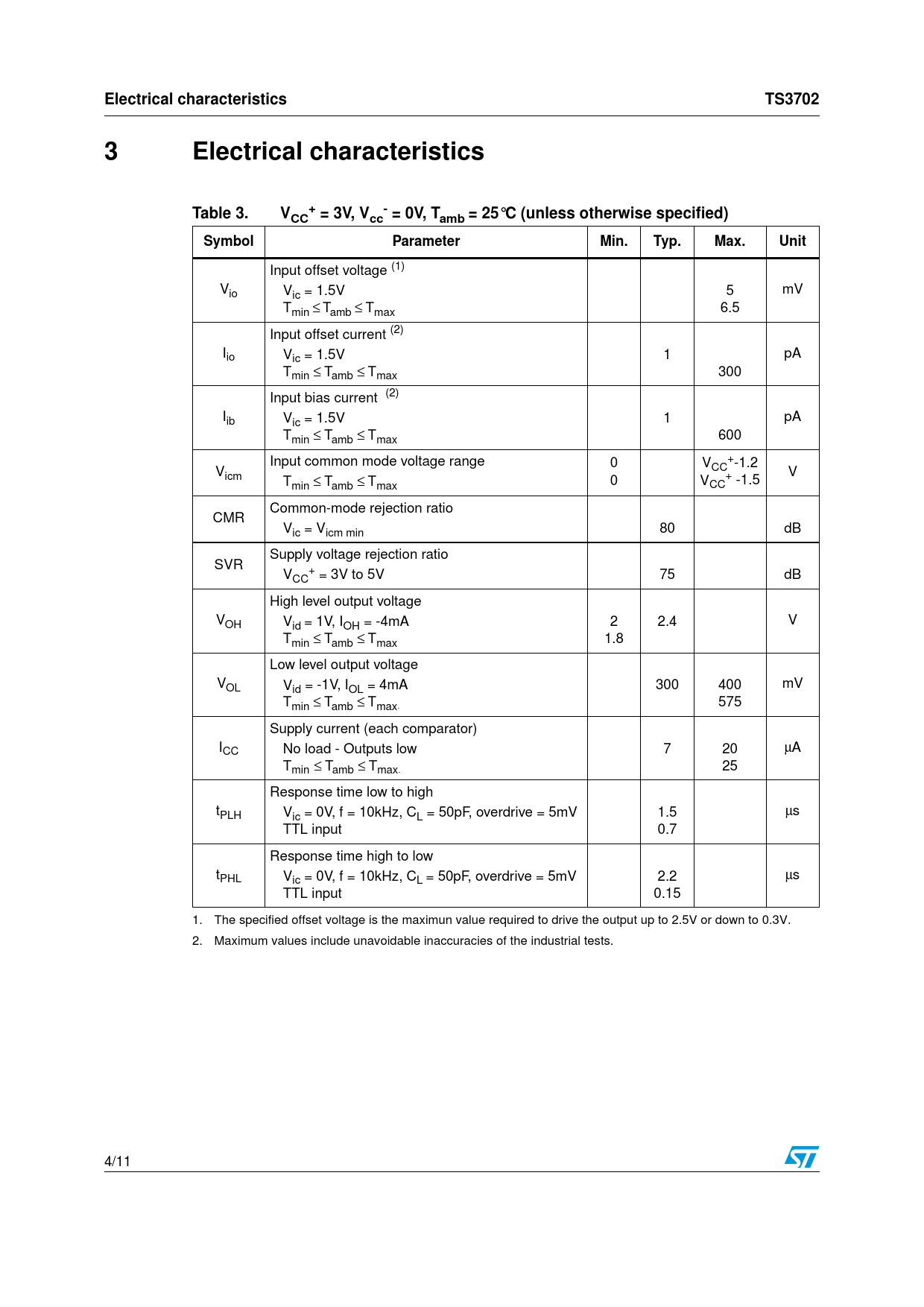

Electrical characteristics TS3702 3 Electrical characteristics Table 3. V + - CC = 3V, Vcc = 0V, Tamb = 25°C (unless otherwise specified) Symbol Parameter Min. Typ. Max. Unit
Input offset voltage (1) Vio V mV ic = 1.5V 5 Tmin ≤ Tamb ≤ Tmax 6.5 Input offset current (2) Iio V pA ic = 1.5V 1 Tmin ≤ Tamb ≤ Tmax 300 Input bias current (2) Iib V pA ic = 1.5V 1 Tmin ≤ Tamb ≤ Tmax 600 Input common mode voltage range 0 V +-1.2 V CC icm V T 0 V + -1.5 min ≤ Tamb ≤ Tmax CC Common-mode rejection ratio CMR Vic = Vicm min 80 dB Supply voltage rejection ratio SVR V + CC = 3V to 5V 75 dB High level output voltage VOH Vid = 1V, IOH = -4mA 2 2.4 V Tmin ≤ Tamb ≤ Tmax 1.8 Low level output voltage VOL V mV id = -1V, IOL = 4mA 300 400 Tmin ≤ Tamb ≤ Tmax 575 . Supply current (each comparator) ICC No load - Outputs low 7 20 μA Tmin ≤ Tamb ≤ Tmax 25 . Response time low to high tPLH V μs ic = 0V, f = 10kHz, CL = 50pF, overdrive = 5mV 1.5 TTL input 0.7 Response time high to low tPHL V μs ic = 0V, f = 10kHz, CL = 50pF, overdrive = 5mV 2.2 TTL input 0.15 1. The specified offset voltage is the maximun value required to drive the output up to 2.5V or down to 0.3V. 2. Maximum values include unavoidable inaccuracies of the industrial tests. 4/11 Document Outline 1 Schematic diagram Figure 1. Schematic diagram (for 1/2 TS3702) 2 Absolute maximum ratings and operating conditions Table 1. Absolute maximum ratings Table 2. Operating conditions 3 Electrical characteristics Table 3. VCC+ = 3V, Vcc- = 0V, Tamb = 25˚C (unless otherwise specified) Table 4. VCC+ = 5V, Vcc- = 0V, Tamb = 25˚C (unless otherwise specified) 4 Package information 4.1 DIP8 package mechanical data 4.2 SO8 package mechanical data 4.3 TSSOP8 package mechanical data 5 Ordering information Table 5. Order codes 6 Revision history
