PMF170XP. 20 V, 1 A P-channel Trench MOSFET. 29 October 2013. Product data sheet. 1. General description

Datasheet PMF170XP Nexperia, Revision: 04052017

Modelllinie für dieses Datenblatt

Textversion des Dokuments

link to page 1

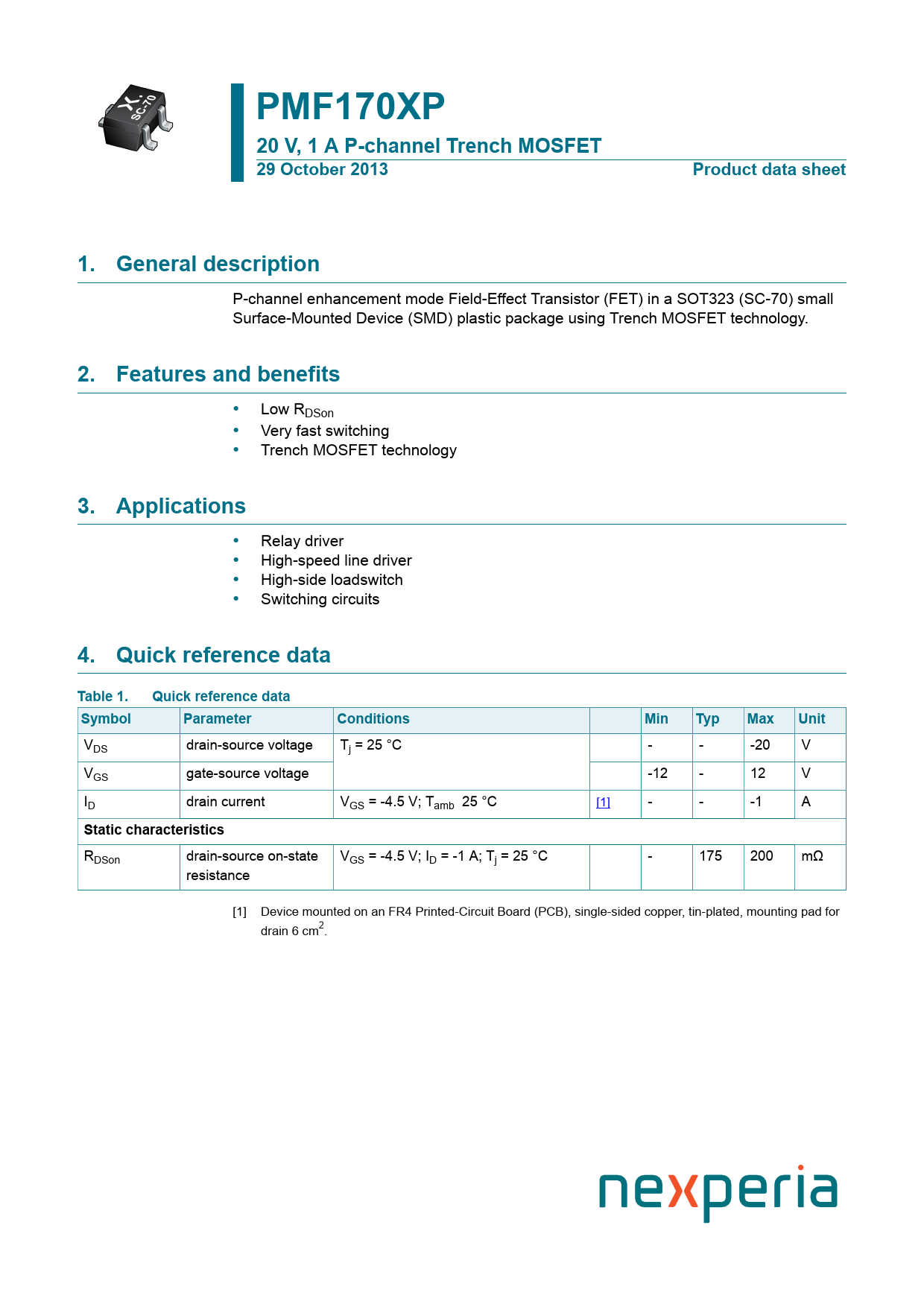

PMF170XP 20 V, 1 A P-channel Trench MOSFET 29 October 2013 Product data sheet 1. General description
P-channel enhancement mode Field-Effect Transistor (FET) in a SOT323 (SC-70) small Surface-Mounted Device (SMD) plastic package using Trench MOSFET technology.
2. Features and benefits
• Low RDSon • Very fast switching • Trench MOSFET technology
3. Applications
• Relay driver • High-speed line driver • High-side loadswitch • Switching circuits
4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions Min Typ Max Unit
VDS drain-source voltage Tj = 25 °C - - -20 V VGS gate-source voltage -12 - 12 V ID drain current VGS = -4.5 V; Tamb 25 °C [1] - - -1 A
Static characteristics
RDSon drain-source on-state VGS = -4.5 V; ID = -1 A; Tj = 25 °C - 175 200 mΩ resistance [1] Device mounted on an FR4 Printed-Circuit Board (PCB), single-sided copper, tin-plated, mounting pad for drain 6 cm2. Document Outline 1. General description 2. Features and benefits 3. Applications 4. Quick reference data 5. Pinning information 6. Ordering information 7. Marking 8. Limiting values 9. Thermal characteristics 10. Characteristics 11. Test information 12. Package outline 13. Soldering 14. Revision history 15. Legal information
