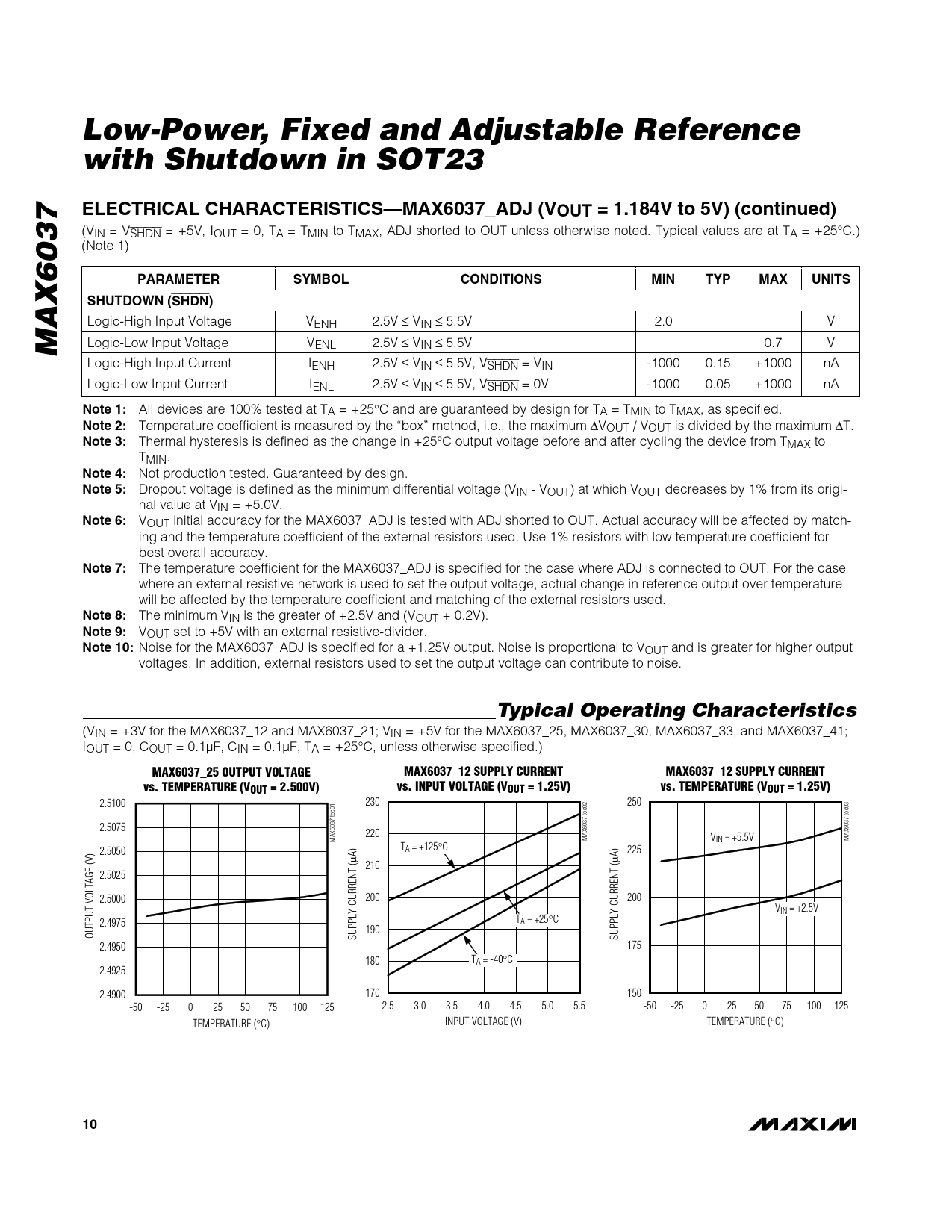

Low-Power, Fixed and Adjustable Reference with Shutdown in SOT23 ELECTRICAL CHARACTERISTICS—MAX6037_ADJ (VOUT = 1.184V to 5V) (continued)
(VIN = VSHDN = +5V, IOUT = 0, TA = TMIN to TMAX, ADJ shorted to OUT unless otherwise noted. Typical values are at TA = +25°C.) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS SHUTDOWN (
SHDN
)
Logic-High Input Voltage VENH 2.5V ≤ VIN ≤ 5.5V 2.0 V
MAX6037
Logic-Low Input Voltage VENL 2.5V ≤ VIN ≤ 5.5V 0.7 V Logic-High Input Current IENH 2.5V ≤ VIN ≤ 5.5V, VSHDN = VIN -1000 0.15 +1000 nA Logic-Low Input Current IENL 2.5V ≤ VIN ≤ 5.5V, VSHDN = 0V -1000 0.05 +1000 nA
Note 1:
All devices are 100% tested at TA = +25°C and are guaranteed by design for TA = TMIN to TMAX, as specified.
Note 2:
Temperature coefficient is measured by the “box” method, i.e., the maximum ∆VOUT / VOUT is divided by the maximum ∆T.
Note 3:
Thermal hysteresis is defined as the change in +25°C output voltage before and after cycling the device from TMAX to TMIN.
Note 4:
Not production tested. Guaranteed by design.
Note 5:
Dropout voltage is defined as the minimum differential voltage (VIN - VOUT) at which VOUT decreases by 1% from its origi- nal value at VIN = +5.0V.
Note 6:
VOUT initial accuracy for the MAX6037_ADJ is tested with ADJ shorted to OUT. Actual accuracy will be affected by match- ing and the temperature coefficient of the external resistors used. Use 1% resistors with low temperature coefficient for best overall accuracy.
Note 7:
The temperature coefficient for the MAX6037_ADJ is specified for the case where ADJ is connected to OUT. For the case where an external resistive network is used to set the output voltage, actual change in reference output over temperature will be affected by the temperature coefficient and matching of the external resistors used.
Note 8:
The minimum VIN is the greater of +2.5V and (VOUT + 0.2V).
Note 9:
VOUT set to +5V with an external resistive-divider.
Note 10:
Noise for the MAX6037_ADJ is specified for a +1.25V output. Noise is proportional to VOUT and is greater for higher output voltages. In addition, external resistors used to set the output voltage can contribute to noise.
Typical Operating Characteristics
(VIN = +3V for the MAX6037_12 and MAX6037_21; VIN = +5V for the MAX6037_25, MAX6037_30, MAX6037_33, and MAX6037_41; IOUT = 0, COUT = 0.1µF, CIN = 0.1µF, TA = +25°C, unless otherwise specified.)
MAX6037_25 OUTPUT VOLTAGE MAX6037_12 SUPPLY CURRENT MAX6037_12 SUPPLY CURRENT vs. TEMPERATURE (VOUT = 2.500V) vs. INPUT VOLTAGE (VOUT = 1.25V) vs. TEMPERATURE (VOUT = 1.25V)
2.5100 230 250 2.5075 220 MAX6037 toc01 MAX6037 toc02 V MAX6037 toc03 IN = +5.5V 2.5050 TA = +125°C 225 µA) µA) 210 2.5025 2.5000 200 200 VIN = +2.5V 2.4975 TA = +25°C 190 OUTPUT VOLTAGE (V) SUPPLY CURRENT ( SUPPLY CURRENT ( 2.4950 175 180 TA = -40°C 2.4925 2.4900 170 150 -50 -25 0 25 50 75 100 125 2.5 3.0 3.5 4.0 4.5 5.0 5.5 -50 -25 0 25 50 75 100 125 TEMPERATURE (°C) INPUT VOLTAGE (V) TEMPERATURE (°C)
