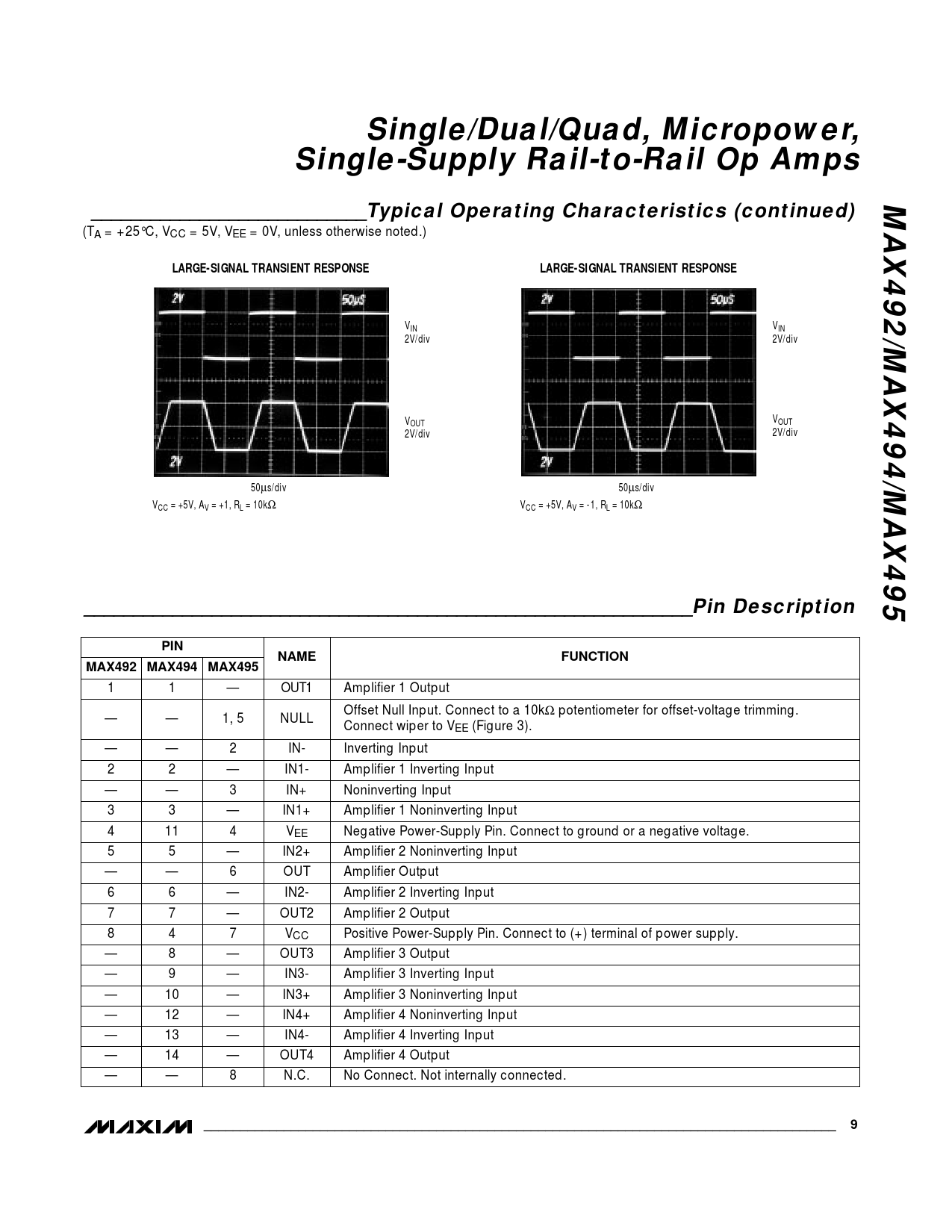

Single/Dual/Quad, Micropower, Single-Supply Rail-to-Rail Op Amps MAX492/MAX494/MAX495 ____________________________Typical Operating Characteristics (continued)
(TA = +25°C, VCC = 5V, VEE = 0V, unless otherwise noted.)
LARGE-SIGNAL TRANSIENT RESPONSE LARGE-SIGNAL TRANSIENT RESPONSE
VIN VIN 2V/div 2V/div V VOUT OUT 2V/div 2V/div 50µs/div 50µs/div VCC = +5V, AV = +1, RL = 10kΩ VCC = +5V, AV = -1, RL = 10kΩ
______________________________________________________________Pin Description PIN NAME FUNCTION MAX492 MAX494 MAX495
1 1 — OUT1 Amplifier 1 Output Offset Null Input. Connect to a 10kΩ potentiometer for offset-voltage trimming. — — 1, 5 NULL Connect wiper to VEE (Figure 3). — — 2 IN- Inverting Input 2 2 — IN1- Amplifier 1 Inverting Input — — 3 IN+ Noninverting Input 3 3 — IN1+ Amplifier 1 Noninverting Input 4 11 4 VEE Negative Power-Supply Pin. Connect to ground or a negative voltage. 5 5 — IN2+ Amplifier 2 Noninverting Input — — 6 OUT Amplifier Output 6 6 — IN2- Amplifier 2 Inverting Input 7 7 — OUT2 Amplifier 2 Output 8 4 7 VCC Positive Power-Supply Pin. Connect to (+) terminal of power supply. — 8 — OUT3 Amplifier 3 Output — 9 — IN3- Amplifier 3 Inverting Input — 10 — IN3+ Amplifier 3 Noninverting Input — 12 — IN4+ Amplifier 4 Noninverting Input — 13 — IN4- Amplifier 4 Inverting Input — 14 — OUT4 Amplifier 4 Output — — 8 N.C. No Connect. Not internally connected.
_______________________________________________________________________________________ 9
