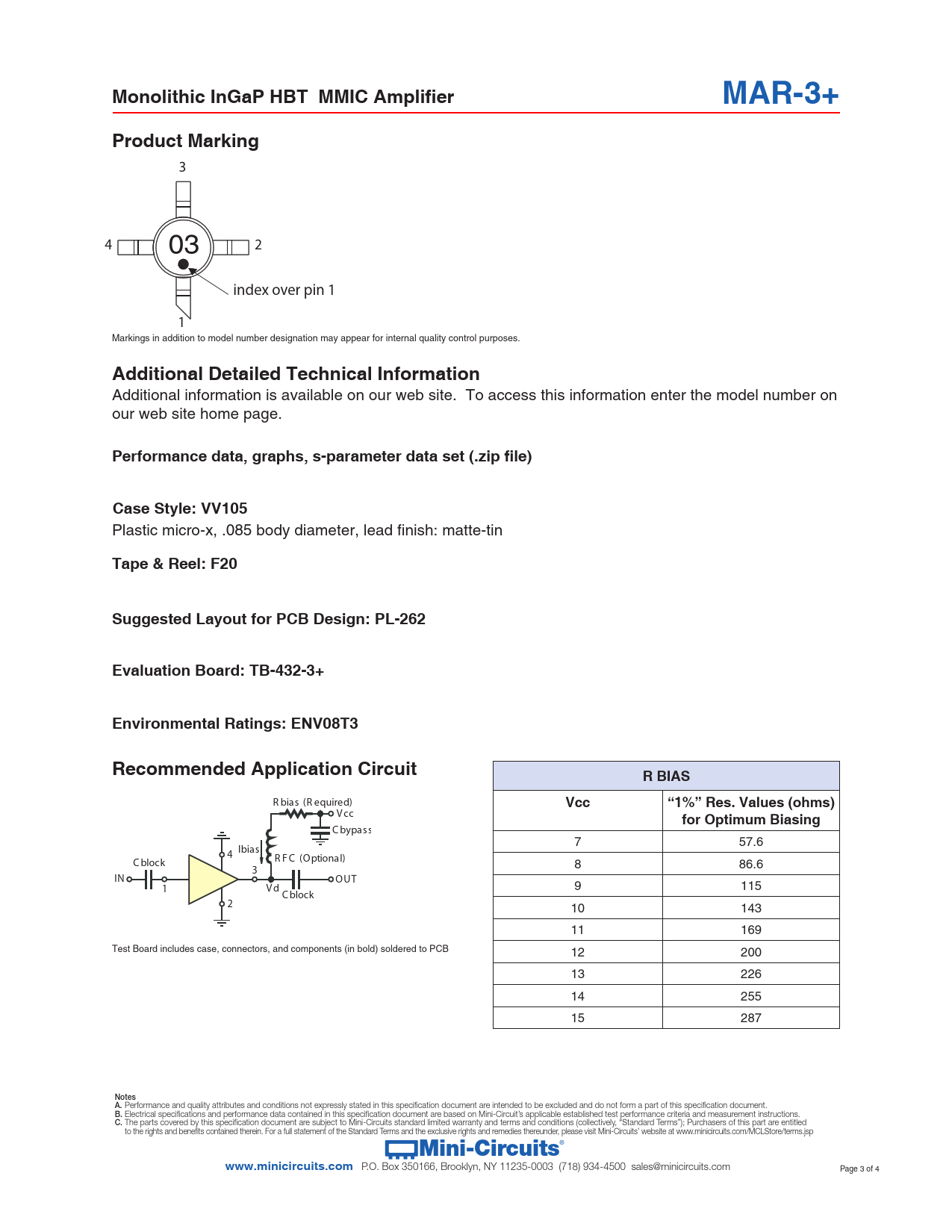

Datasheet MAR-3+ (Mini-Circuits) - 3

Monolithic InGaP HBT MMIC Amplifier MAR-3+ Product Marking
3 4 2 03 index over pin 1 1 Markings in addition to model number designation may appear for internal quality control purposes.
Additional Detailed Technical Information
Additional information is available on our web site. To access this information enter the model number on our web site home page.
Performance data, graphs, s-parameter data set (.zip file) Case Style: VV105
Plastic micro-x, .085 body diameter, lead finish: matte-tin
Tape & Reel: F20 Suggested Layout for PCB Design: PL-262 Evaluation Board: TB-432-3+ Environmental Ratings: ENV08T3 Recommended Application Circuit R BIAS
R bias (R equired)
Vcc “1%” Res. Values (ohms)
V cc
for Optimum Biasing
C bypass 7 57.6 4 Ibias C block R F C (Optional) 8 86.6 3 IN OUT 1 V d 9 115 C block 2 10 143 11 169 Test Board includes case, connectors, and components (in bold) soldered to PCB 12 200 13 226 14 255 15 287 Notes A. Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document. B. Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions. C. The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp
Mini-Circuits
®
www.minicircuits.com
P.O. Box 350166, Brooklyn, NY 11235-0003 (718) 934-4500 sales@minicircuits.com Page 3 of 4 Document Outline MAR-3+ Data Sheet View Data View Graphs Case Style Tape and Reel PCB Layout Eval Board Enviromental Ratings
