Datasheet 1N4460 - 1N4496, 1N6485 - 1N6491 (Microsemi) - 6
| Hersteller | Microsemi |
| Beschreibung | VOIDLESS HERMETICALLY SEALED 1.5 WATT GLASS ZENER DIODES |
| Seiten / Seite | 6 / 6 — 1N4460 – 1N4496 and 1N6485 – 1N6491. PACKAGE DIMENSIONS NOTES:. 1. … |
| Dateiformat / Größe | PDF / 424 Kb |
| Dokumentensprache | Englisch |

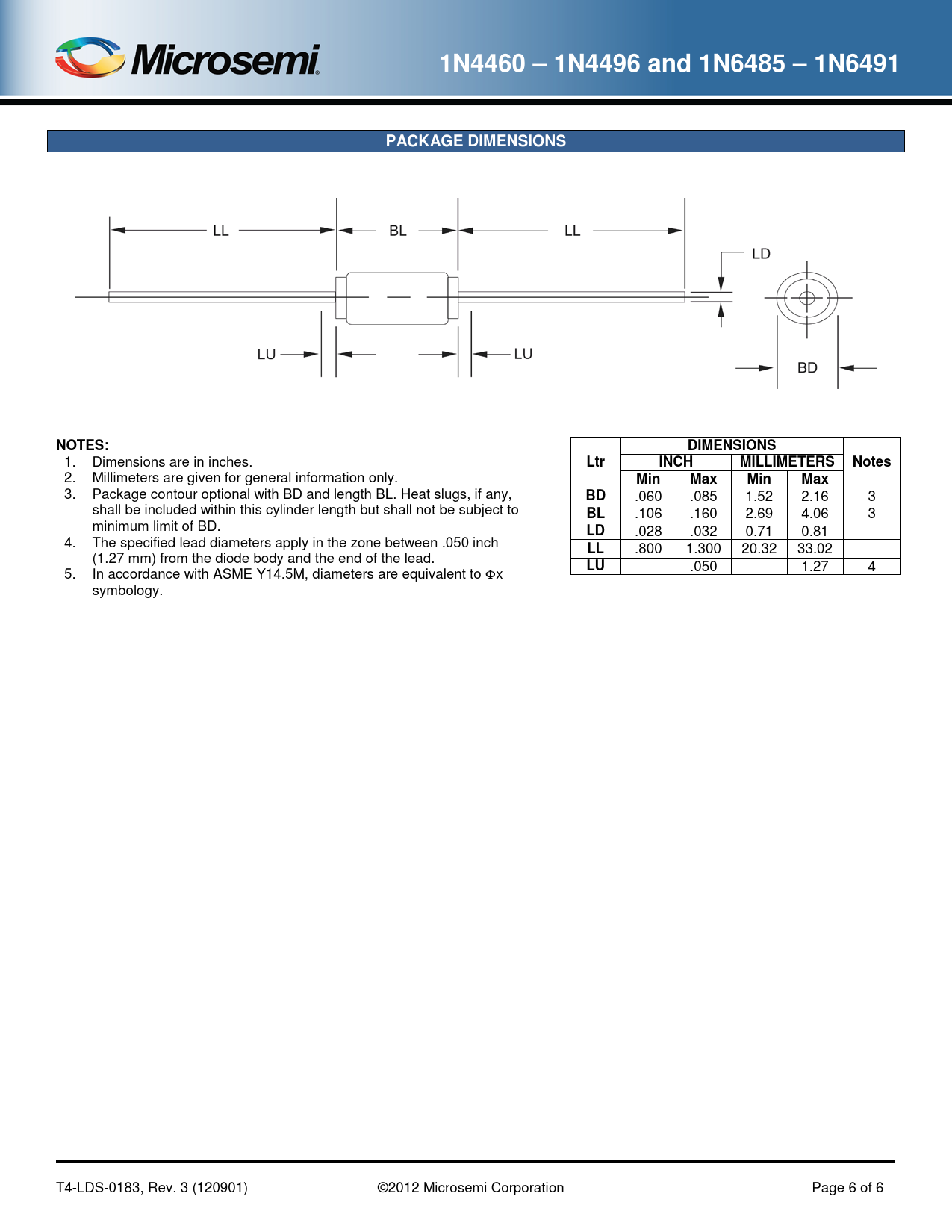

1N4460 – 1N4496 and 1N6485 – 1N6491. PACKAGE DIMENSIONS NOTES:. 1. Dimensions are in inches
Modelllinie für dieses Datenblatt
Textversion des Dokuments
1N4460 – 1N4496 and 1N6485 – 1N6491
PACKAGE DIMENSIONS NOTES:
1. Dimensions are in inches.
2. Millimeters are given for general information only.
3. Package contour optional with BD and length BL. Heat slugs, if any,
shall be included within this cylinder length but shall not be subject to
minimum limit of BD.
4. The specified lead diameters apply in the zone between .050 inch
(1.27 mm) from the diode body and the end of the lead.
5. In accordance with ASME Y14.5M, diameters are equivalent to Φx
symbology. T4-LDS-0183, Rev. 3 (120901) ©2012 Microsemi Corporation Ltr
BD
BL
LD
LL
LU DIMENSIONS
INCH
MILLIMETERS
Min
Max
Min
Max
.060
.085
1.52
2.16
.106
.160
2.69
4.06
.028
.032
0.71
0.81
.800
1.300 20.32 33.02
.050
1.27 Notes
3
3 4 Page 6 of 6
