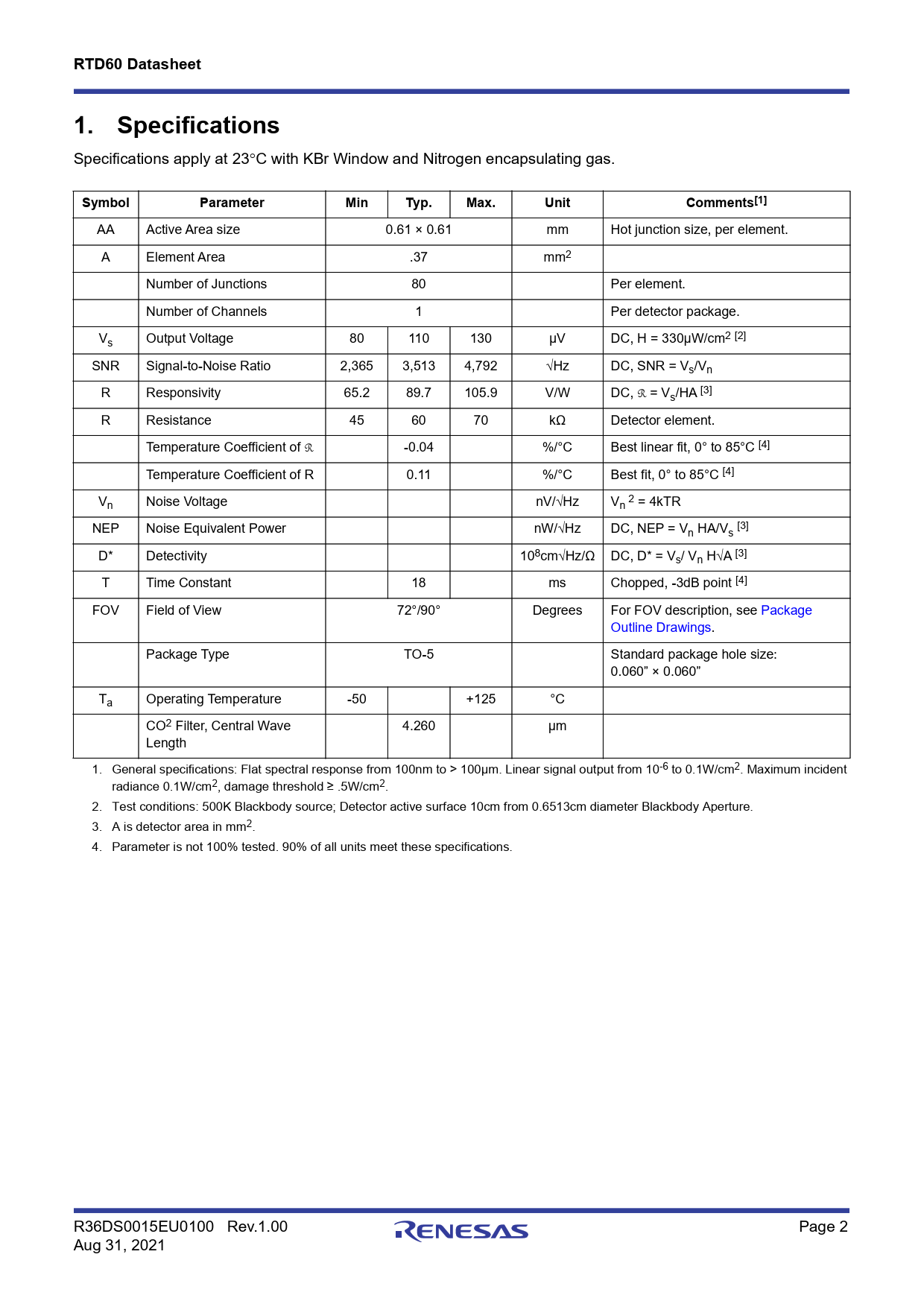

RTD60 Datasheet 1. Specifications
Specifications apply at 23C with KBr Window and Nitrogen encapsulating gas.
Symbol Parameter Min Typ. Max. Unit Comments[1]
AA Active Area size 0.61 × 0.61 mm Hot junction size, per element. A Element Area .37 mm2 Number of Junctions 80 Per element. Number of Channels 1 Per detector package. Vs Output Voltage 80 110 130 µV DC, H = 330µW/cm2 [2] SNR Signal-to-Noise Ratio 2,365 3,513 4,792 √Hz DC, SNR = Vs/Vn R Responsivity 65.2 89.7 105.9 V/W DC, R = Vs/HA [3] R Resistance 45 60 70 kΩ Detector element. Temperature Coef icient of R -0.04 %/°C Best linear fit, 0° to 85°C [4] Temperature Coef icient of R 0.11 %/°C Best fit, 0° to 85°C [4] V 2 n Noise Voltage nV/√Hz Vn = 4kTR NEP Noise Equivalent Power nW/√Hz DC, NEP = Vn HA/Vs [3] D* Detectivity 108cm√Hz/Ω DC, D* = Vs/ Vn H√A [3] T Time Constant 18 ms Chopped, -3dB point [4] FOV Field of View 72°/90° Degrees For FOV description, see Package Outline Drawings. Package Type TO-5 Standard package hole size: 0.060” × 0.060” Ta Operating Temperature -50 +125 °C CO2 Filter, Central Wave 4.260 µm Length 1. General specifications: Flat spectral response from 100nm to > 100µm. Linear signal output from 10-6 to 0.1W/cm2. Maximum incident radiance 0.1W/cm2, damage threshold ≥ .5W/cm2. 2. Test conditions: 500K Blackbody source; Detector active surface 10cm from 0.6513cm diameter Blackbody Aperture. 3. A is detector area in mm2. 4. Parameter is not 100% tested. 90% of al units meet these specifications. R36DS0015EU0100 Rev.1.00 Page 2 Aug 31, 2021 Document Outline Image Diagram Detector Circuit Overlay Applications Features Benefits 1. Specifications 2. Package Outline Drawings 3. Ordering Information 4. Revision History
RTD60 Datasheet 1. Specifications
Specifications apply at 23C with KBr Window and Nitrogen encapsulating gas.
Symbol Parameter Min Typ. Max. Unit Comments[1]
AA Active Area size 0.61 × 0.61 mm Hot junction size, per element. A Element Area .37 mm2 Number of Junctions 80 Per element. Number of Channels 1 Per detector package. Vs Output Voltage 80 110 130 µV DC, H = 330µW/cm2 [2] SNR Signal-to-Noise Ratio 2,365 3,513 4,792 √Hz DC, SNR = Vs/Vn R Responsivity 65.2 89.7 105.9 V/W DC, R = Vs/HA [3] R Resistance 45 60 70 kΩ Detector element. Temperature Coef icient of R -0.04 %/°C Best linear fit, 0° to 85°C [4] Temperature Coef icient of R 0.11 %/°C Best fit, 0° to 85°C [4] V 2 n Noise Voltage nV/√Hz Vn = 4kTR NEP Noise Equivalent Power nW/√Hz DC, NEP = Vn HA/Vs [3] D* Detectivity 108cm√Hz/Ω DC, D* = Vs/ Vn H√A [3] T Time Constant 18 ms Chopped, -3dB point [4] FOV Field of View 72°/90° Degrees For FOV description, see Package Outline Drawings. Package Type TO-5 Standard package hole size: 0.060” × 0.060” Ta Operating Temperature -50 +125 °C CO2 Filter, Central Wave 4.260 µm Length 1. General specifications: Flat spectral response from 100nm to > 100µm. Linear signal output from 10-6 to 0.1W/cm2. Maximum incident radiance 0.1W/cm2, damage threshold ≥ .5W/cm2. 2. Test conditions: 500K Blackbody source; Detector active surface 10cm from 0.6513cm diameter Blackbody Aperture. 3. A is detector area in mm2. 4. Parameter is not 100% tested. 90% of al units meet these specifications. R36DS0015EU0100 Rev.1.00 Page 2 Aug 31, 2021 Document Outline Image Diagram Detector Circuit Overlay Applications Features Benefits 1. Specifications 2. Package Outline Drawings 3. Ordering Information 4. Revision History
