Datasheet AM2431, AM2432, AM2434 (Texas Instruments) - 3

HerstellerTexas Instruments
BeschreibungArm Cortex-R5F based MCU with industrial communications and security up to 800MHz
Seiten / Seite316 / 3 — AM2434, AM2432. , AM2431. Functional Safety:. SoC …
Dateiformat / GrößePDF / 6.4 Mb

AM2434, AM2432. , AM2431. Functional Safety:. SoC Architecture:. Package options:. TION. NCE INFO

AM2434, AM2432 , AM2431 Functional Safety: SoC Architecture: Package options: TION NCE INFO

Modelllinie für dieses Datenblatt

Textversion des Dokuments

AM2434, AM2432 , AM2431
Functional Safety: SoC Architecture:

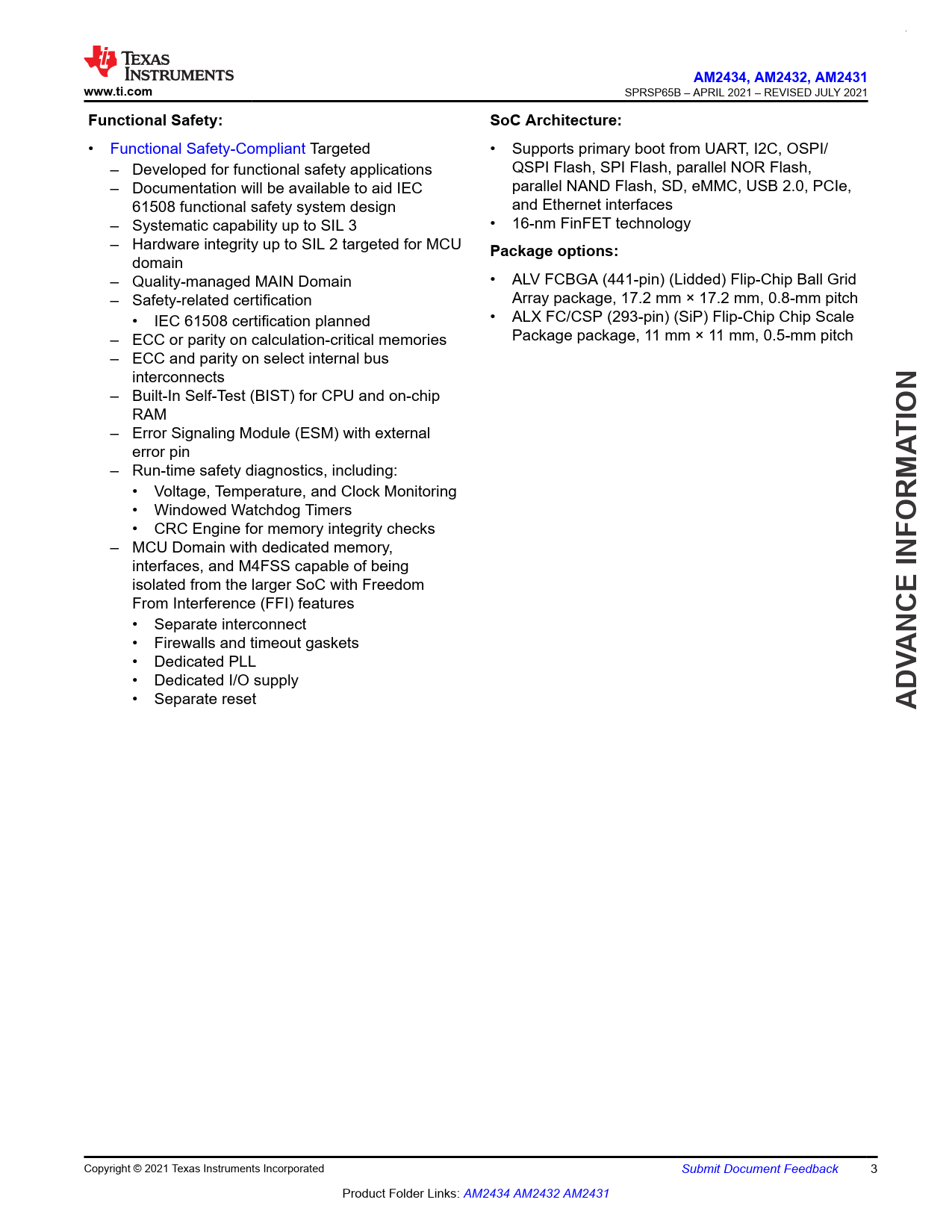

• Functional Safety-Compliant Targeted • Supports primary boot from UART, I2C, OSPI/ – Developed for functional safety applications QSPI Flash, SPI Flash, parallel NOR Flash, – Documentation will be available to aid IEC parallel NAND Flash, SD, eMMC, USB 2.0, PCIe, 61508 functional safety system design and Ethernet interfaces – Systematic capability up to SIL 3 • 16-nm FinFET technology – Hardware integrity up to SIL 2 targeted for MCU
Package options:
domain – Quality-managed MAIN Domain • ALV FCBGA (441-pin) (Lidded) Flip-Chip Ball Grid – Safety-related certification Array package, 17.2 mm × 17.2 mm, 0.8-mm pitch • IEC 61508 certification planned • ALX FC/CSP (293-pin) (SiP) Flip-Chip Chip Scale – ECC or parity on calculation-critical memories Package package, 11 mm × 11 mm, 0.5-mm pitch – ECC and parity on select internal bus interconnects – Built-In Self-Test (BIST) for CPU and on-chip RAM – Error Signaling Module (ESM) with external
error pin – Run-time safety diagnostics, including:
• Voltage, Temperature, and Clock Monitoring
• Windowed Watchdog Timers • CRC Engine for memory integrity checks – MCU Domain with dedicated memory, interfaces, and M4FSS capable of being isolated from the larger SoC with Freedom From Interference (FFI) features • Separate interconnect
• Firewalls and timeout gaskets
• Dedicated PLL
• Dedicated I/O supply • Separate reset
