Datasheet G2RL (Omron)
| Hersteller | Omron |
| Beschreibung | Low profile power relay with 15.7 mm height |
| Seiten / Seite | 8 / 1 — Low profile power relay. with 15.7 mm height, ideal for. incorporation in … |
| Dateiformat / Größe | PDF / 1.6 Mb |
| Dokumentensprache | Englisch |
Low profile power relay. with 15.7 mm height, ideal for. incorporation in miniature. equipments. Application Examples
Modelllinie für dieses Datenblatt
- G2RL-1-DC12 G2RL-1-DC24 G2RL-1-DC48 G2RL-1-DC5 G2RL-1-E-AS-DC12 G2RL-1-E-AS-DC24 G2RL-1-E-AS-DC48 G2RL-1-E-AS-DC5 G2RL-1-E-DC12 G2RL-1-E-DC24 G2RL-1-E-DC48 G2RL-1-E-DC5 G2RL-1-E-HA-DC12 G2RL-1-E-HA-DC48 G2RL-1-E-HA-DC5 G2RL-1-E-PW1-DC12 G2RL-1-E-PW1-DC48 G2RL-1-E-PW1-DC5 G2RL-1-H-DC12 G2RL-1-H-DC48 G2RL-1-H-DC5 G2RL-1-HA-DC12 G2RL-1-HA-DC48 G2RL-1-HA-DC5 G2RL-1-PW1-DC12 G2RL-1-PW1-DC48 G2RL-1-PW1-DC5 G2RL-14-DC12 G2RL-14-DC24 G2RL-14-DC48 G2RL-14-DC5 G2RL-14-E-DC12 G2RL-14-E-DC24 G2RL-14-E-DC48 G2RL-14-E-DC5 G2RL-1A-DC12 G2RL-1A-DC24 G2RL-1A-DC48 G2RL-1A-DC5 G2RL-1A-E-ASI-DC12 G2RL-1A-E-ASI-DC24 G2RL-1A-E-ASI-DC48 G2RL-1A-E-ASI-DC5 G2RL-1A-E-CV-DC12 G2RL-1A-E-CV-DC48 G2RL-1A-E-CV-DC5 G2RL-1A-E-CV-HA-DC12 G2RL-1A-E-CV-HA-DC48 G2RL-1A-E-CV-HA-DC5 G2RL-1A-E-DC12 G2RL-1A-E-DC24 G2RL-1A-E-DC48 G2RL-1A-E-DC5 G2RL-1A-E-HA-DC12 G2RL-1A-E-HA-DC48 G2RL-1A-E-HA-DC5 G2RL-1A-E-PW1-DC12 G2RL-1A-E-PW1-DC48 G2RL-1A-E-PW1-DC5 G2RL-1A-H-DC12 G2RL-1A-H-DC48 G2RL-1A-H-DC5 G2RL-1A-PW1-DC12 G2RL-1A-PW1-DC48 G2RL-1A-PW1-DC5 G2RL-1A4-DC12 G2RL-1A4-DC24 G2RL-1A4-DC48 G2RL-1A4-DC5 G2RL-1A4-E-DC12 G2RL-1A4-E-DC24 G2RL-1A4-E-DC48 G2RL-1A4-E-DC5 G2RL-2-ASI-DC12 G2RL-2-ASI-DC24 G2RL-2-ASI-DC48 G2RL-2-ASI-DC5 G2RL-2-DC12 G2RL-2-DC24 G2RL-2-DC48 G2RL-2-DC5 G2RL-2-HA-DC12 G2RL-2-HA-DC48 G2RL-2-HA-DC5 G2RL-2-PW1-DC12 G2RL-2-PW1-DC48 G2RL-2-PW1-DC5 G2RL-24-DC12 G2RL-24-DC24 G2RL-24-DC48 G2RL-24-DC5 G2RL-2A-DC12 G2RL-2A-DC24 G2RL-2A-DC48 G2RL-2A-DC5 G2RL-2A-HA-DC12 G2RL-2A-HA-DC48 G2RL-2A-HA-DC5 G2RL-2A-PW1-DC12 G2RL-2A-PW1-DC48 G2RL-2A-PW1-DC5 G2RL-2A4-DC12 G2RL-2A4-DC24 G2RL-2A4-DC48 G2RL-2A4-DC5
Textversion des Dokuments

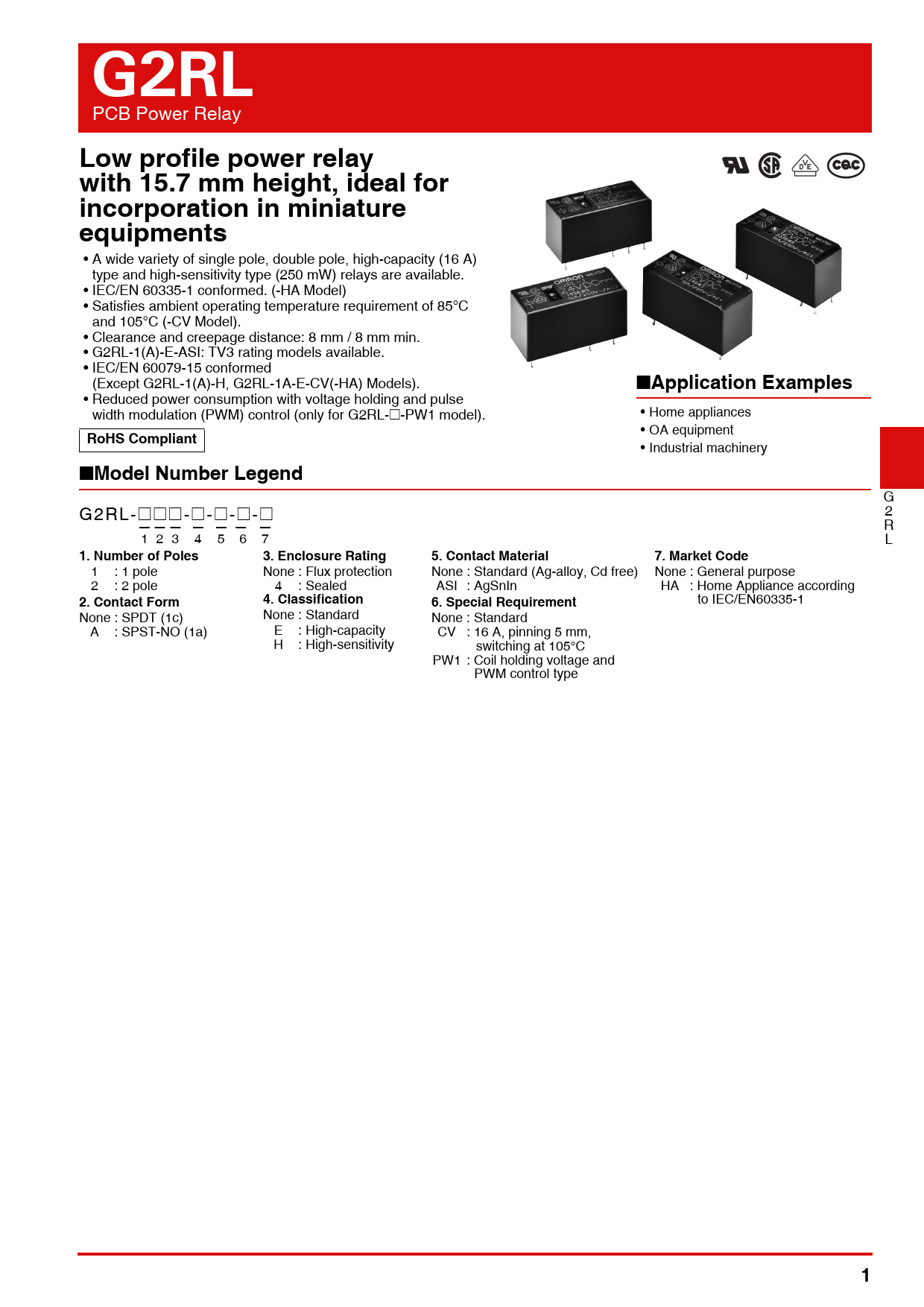

G2RL PCB Power Relay
Low profile power relay with 15.7 mm height, ideal for incorporation in miniature equipments
• A wide variety of single pole, double pole, high-capacity (16 A) type and high-sensitivity type (250 mW) relays are available. • IEC/EN 60335-1 conformed. (-HA Model) • Satisfies ambient operating temperature requirement of 85°C and 105°C (-CV Model). • Clearance and creepage distance: 8 mm / 8 mm min. • G2RL-1(A)-E-ASI: TV3 rating models available. • IEC/EN 60079-15 conformed (Except G2RL-1(A)-H, G2RL-1A-E-CV(-HA) Models). ■
Application Examples
• Reduced power consumption with voltage holding and pulse width modulation (PWM) control (only for G2RL-@-PW1 model). • Home appliances • OA equipment
RoHS Compliant
• Industrial machinery ■
Model Number Legend
G 2 G2RL-@@@-@-@-@-@ — — — — — — — R 1 2 3 4 5 6 7 L
1. Number of Poles 3. Enclosure Rating 5. Contact Material 7. Market Code
1 : 1 pole None : Flux protection None : Standard (Ag-alloy, Cd free) None : General purpose 2 : 2 pole 4 : Sealed ASI : AgSnIn HA : Home Appliance according
2. Contact Form 4. Classification
to IEC/EN60335-1
6. Special Requirement
None : SPDT (1c) None : Standard None : Standard A : SPST-NO (1a) E : High-capacity CV : 16 A, pinning 5 mm, H : High-sensitivity switching at 105°C PW1 : Coil holding voltage and PWM control type
1
Low profile power relay with 15.7 mm height, ideal for incorporation in miniature equipments
• A wide variety of single pole, double pole, high-capacity (16 A) type and high-sensitivity type (250 mW) relays are available. • IEC/EN 60335-1 conformed. (-HA Model) • Satisfies ambient operating temperature requirement of 85°C and 105°C (-CV Model). • Clearance and creepage distance: 8 mm / 8 mm min. • G2RL-1(A)-E-ASI: TV3 rating models available. • IEC/EN 60079-15 conformed (Except G2RL-1(A)-H, G2RL-1A-E-CV(-HA) Models). ■
Application Examples
• Reduced power consumption with voltage holding and pulse width modulation (PWM) control (only for G2RL-@-PW1 model). • Home appliances • OA equipment
RoHS Compliant
• Industrial machinery ■
Model Number Legend
G 2 G2RL-@@@-@-@-@-@ — — — — — — — R 1 2 3 4 5 6 7 L
1. Number of Poles 3. Enclosure Rating 5. Contact Material 7. Market Code
1 : 1 pole None : Flux protection None : Standard (Ag-alloy, Cd free) None : General purpose 2 : 2 pole 4 : Sealed ASI : AgSnIn HA : Home Appliance according
2. Contact Form 4. Classification
to IEC/EN60335-1
6. Special Requirement
None : SPDT (1c) None : Standard None : Standard A : SPST-NO (1a) E : High-capacity CV : 16 A, pinning 5 mm, H : High-sensitivity switching at 105°C PW1 : Coil holding voltage and PWM control type
1
