Nexperia. 74AHCU04. Hex unbuffered inverter. TSSOP14: plastic thin shrink smal outline package; 14 leads; body width 4.4 mm
Modelllinie für dieses Datenblatt
Textversion des Dokuments
Nexperia 74AHCU04 Hex unbuffered inverter TSSOP14: plastic thin shrink smal outline package; 14 leads; body width 4.4 mm SOT402-1
D E A X c y H E v M A Z 14 8 Q A 2 (A 3) A A 1 pin 1 index θ L p L 1 7 detail X w M b e p 0 2.5 5 mm scale
DIMENSIONS (mm are the original dimensions) UNIT A A 1 A 2 A 3 b p c D (1) E (2) (1) e H E L L p Q v w y Z
θ
max.
o mm 0.15 0.95 0.30 0.2 5.1 4.5 0.75 0.4 0.72 8 1.1 0.05 0.80 0.25 0.19 0.1 4.9 4.3 0.65 6.6 6.2 1 0.50 0.3 0.2 0.13 0.1 0.38 0 o
Notes
1. Plastic or metal protrusions of 0.15 mm maximum per side are not included. 2. Plastic interlead protrusions of 0.25 mm maximum per side are not included.
REFERENCES OUTLINE EUROPEAN VERSION PROJECTION ISSUE DATE IEC JEDEC JEITA
SOT402-1 MO-153 99-12-27 03-02-18

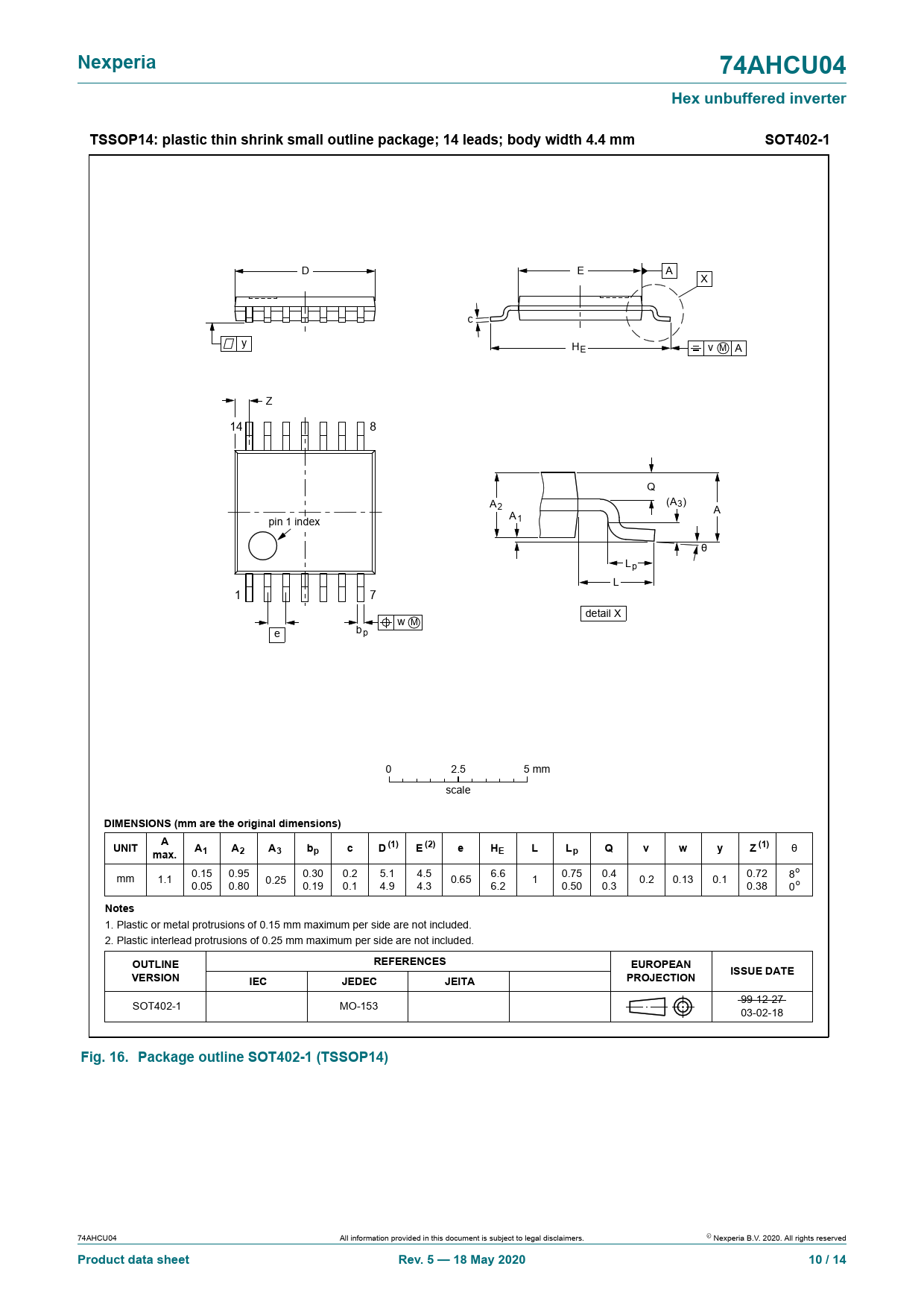

Fig. 16. Package outline SOT402-1 (TSSOP14)
74AHCU04 All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2020. Al rights reserved
Product data sheet Rev. 5 — 18 May 2020 10 / 14
