Datasheet SD101AW, SD101BW, SD101CW (Vishay) - 2

HerstellerVishay
BeschreibungSmall Signal Schottky Diodes
Seiten / Seite4 / 2 — SD101AW, SD101BW, SD101CW. ELECTRICAL CHARACTERISTICS. PARAMETER. TEST …
Dateiformat / GrößePDF / 93 Kb
DokumentenspracheEnglisch

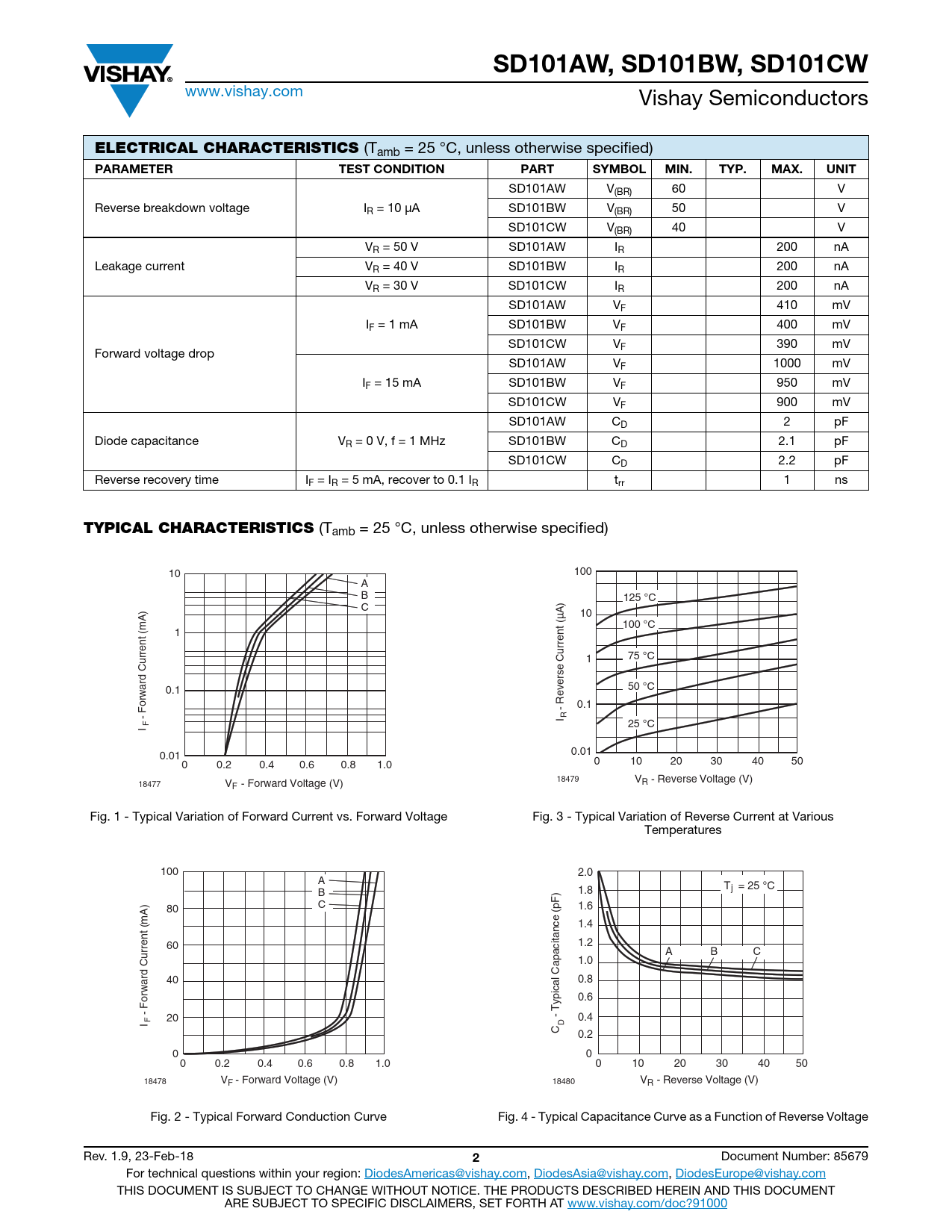

SD101AW, SD101BW, SD101CW. ELECTRICAL CHARACTERISTICS. PARAMETER. TEST CONDITION. PART. SYMBOL. MIN. TYP. MAX. UNIT

SD101AW, SD101BW, SD101CW ELECTRICAL CHARACTERISTICS PARAMETER TEST CONDITION PART SYMBOL MIN TYP MAX UNIT

Modelllinie für dieses Datenblatt

Textversion des Dokuments

SD101AW, SD101BW, SD101CW
www.vishay.com Vishay Semiconductors
ELECTRICAL CHARACTERISTICS
(Tamb = 25 °C, unless otherwise specified)
PARAMETER TEST CONDITION PART SYMBOL MIN. TYP. MAX. UNIT
SD101AW V(BR) 60 V Reverse breakdown voltage IR = 10 μA SD101BW V(BR) 50 V SD101CW V(BR) 40 V VR = 50 V SD101AW IR 200 nA Leakage current VR = 40 V SD101BW IR 200 nA VR = 30 V SD101CW IR 200 nA SD101AW VF 410 mV IF = 1 mA SD101BW VF 400 mV SD101CW VF 390 mV Forward voltage drop SD101AW VF 1000 mV IF = 15 mA SD101BW VF 950 mV SD101CW VF 900 mV SD101AW CD 2 pF Diode capacitance VR = 0 V, f = 1 MHz SD101BW CD 2.1 pF SD101CW CD 2.2 pF Reverse recovery time IF = IR = 5 mA, recover to 0.1 IR trr 1 ns
TYPICAL CHARACTERISTICS
(Tamb = 25 °C, unless otherwise specified) 10 100 A B 125 °C C 10 (µA) 100 °C (mA) 1 Current 1 75 °C Current 0.1 50 °C Reverse 0.1 Forward - I R I - F 25 °C 0.01 0.01 0 0.2 0.4 0.6 0.8 1.0 0 10 20 30 40 50 18479 V 18477 VF - Forward Voltage (V) R - Reverse Voltage (V) Fig. 1 - Typical Variation of Forward Current vs. Forward Voltage Fig. 3 - Typical Variation of Reverse Current at Various Temperatures 100 2.0 A Tj = 25 °C B 1.8 C 80 1.6 1.4 60 1.2 A B C 1.0 apacitance (pF) C 40 0.8 0.6 Forward Current (mA) Typical - F 20 0.4 I - D C 0.2 0 0 0 0.2 0.4 0.6 0.8 1.0 0 10 20 30 40 50 18478 VF - Forward Voltage (V) 18480 VR - Reverse Voltage (V) Fig. 2 - Typical Forward Conduction Curve Fig. 4 - Typical Capacitance Curve as a Function of Reverse Voltage Rev. 1.9, 23-Feb-18
