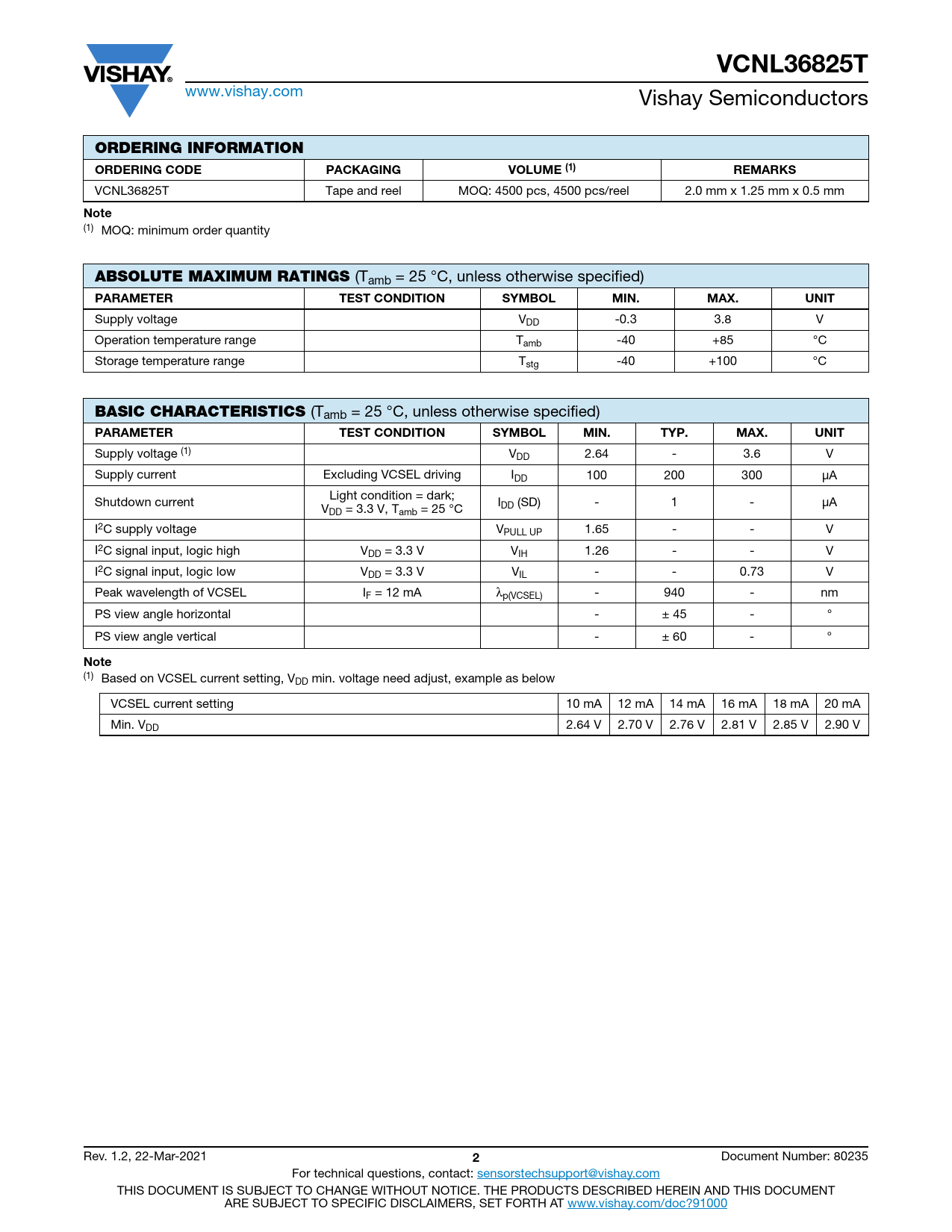

VCNL36825T
www.vishay.com Vishay Semiconductors
ORDERING INFORMATION ORDERING CODE PACKAGING VOLUME (1) REMARKS
VCNL36825T Tape and reel MOQ: 4500 pcs, 4500 pcs/reel 2.0 mm x 1.25 mm x 0.5 mm
Note
(1) MOQ: minimum order quantity
ABSOLUTE MAXIMUM RATINGS
(Tamb = 25 °C, unless otherwise specified)
PARAMETER TEST CONDITION SYMBOL MIN. MAX. UNIT
Supply voltage VDD -0.3 3.8 V Operation temperature range Tamb -40 +85 °C Storage temperature range Tstg -40 +100 °C
BASIC CHARACTERISTICS
(Tamb = 25 °C, unless otherwise specified)
PARAMETER TEST CONDITION SYMBOL MIN. TYP. MAX. UNIT
Supply voltage (1) VDD 2.64 - 3.6 V Supply current Excluding VCSEL driving IDD 100 200 300 μA Light condition = dark; Shutdown current I V DD (SD) - 1 - μA DD = 3.3 V, Tamb = 25 °C I2C supply voltage VPULL UP 1.65 - - V I2C signal input, logic high VDD = 3.3 V VIH 1.26 - - V I2C signal input, logic low VDD = 3.3 V VIL - - 0.73 V Peak wavelength of VCSEL IF = 12 mA λp(VCSEL) - 940 - nm PS view angle horizontal - ± 45 - ° PS view angle vertical - ± 60 - °
Note
(1) Based on VCSEL current setting, VDD min. voltage need adjust, example as below VCSEL current setting 10 mA 12 mA 14 mA 16 mA 18 mA 20 mA Min. VDD 2.64 V 2.70 V 2.76 V 2.81 V 2.85 V 2.90 V Rev. 1.2, 22-Mar-2021
