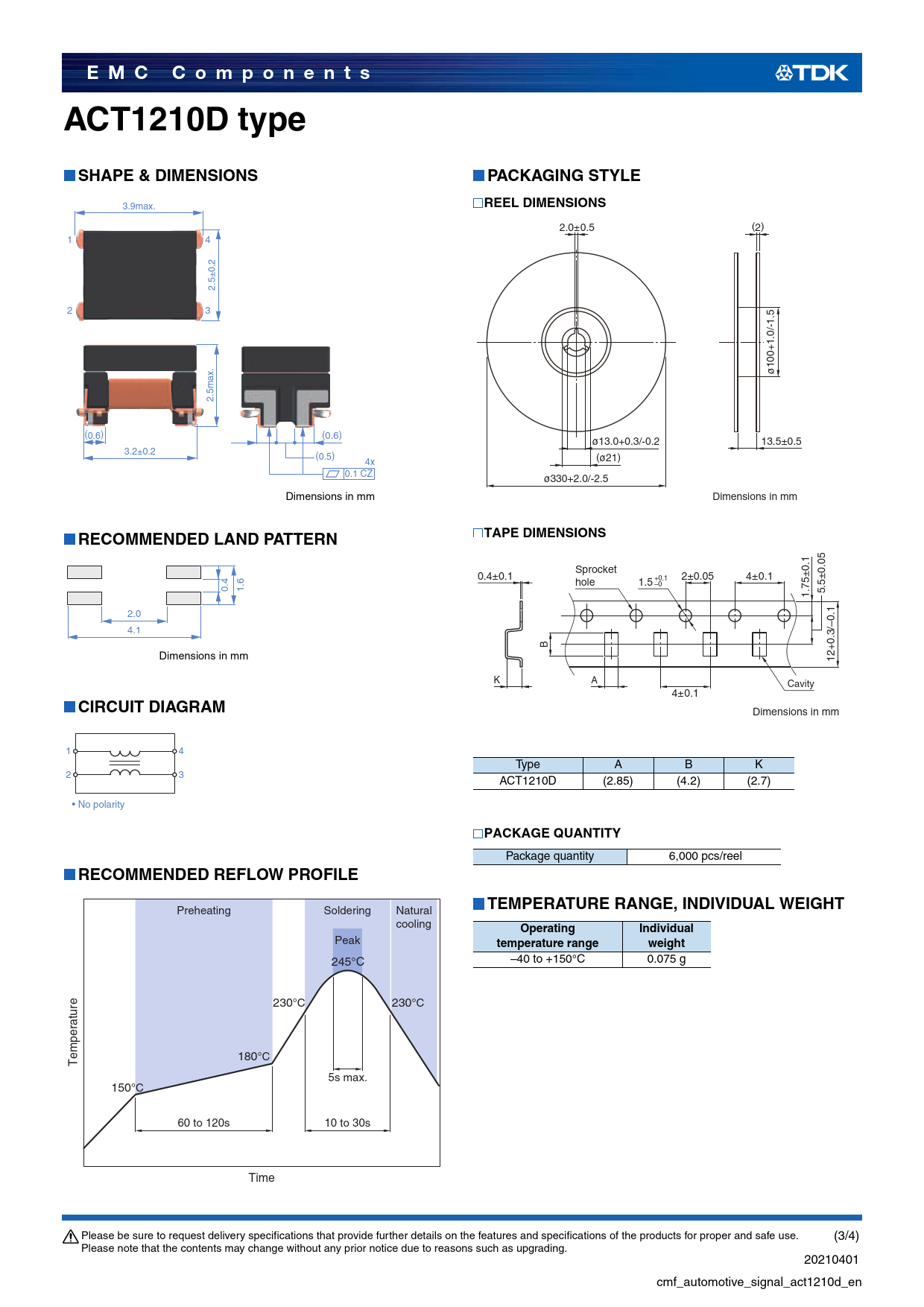

E M C C o m p o n e n t s. ACT1210D type. SHAPE & DIMENSIONS. PACKAGING STYLE. REEL DIMENSIONS. RECOMMENDED LAND PATTERN

E M C C o m p o n e n t s ACT1210D type SHAPE & DIMENSIONS PACKAGING STYLE REEL DIMENSIONS RECOMMENDED LAND PATTERN

Modelllinie für dieses Datenblatt

Textversion des Dokuments

E M C C o m p o n e n t s ACT1210D type SHAPE & DIMENSIONS PACKAGING STYLE
3.9max.
REEL DIMENSIONS
2.0±0.5 (2) 1 4 2.5±0.2 2 3 x. ø100+1.0/-1.5 a 2.5m (0.6) (0.6) ø13.0+0.3/-0.2 13.5±0.5 3.2±0.2 (0.5) 4x (ø21) 0.1 CZ ø330+2.0/-2.5 Dimensions in mm Dimensions in mm
RECOMMENDED LAND PATTERN TAPE DIMENSIONS
Sprocket 0.4±0.1 2±0.05 4±0.1 hole 1.5 +0.1 –0 0.4 1.6 1.75±0.1 5.5±0.05 2.0 4.1 B Dimensions in mm 12+0.3/–0.1 K A Cavity 4±0.1
CIRCUIT DIAGRAM
Dimensions in mm 1 4 Type A B K 2 3 ACT1210D (2.85) (4.2) (2.7) • No polarity
PACKAGE QUANTITY
Package quantity 6,000 pcs/reel
RECOMMENDED REFLOW PROFILE TEMPERATURE RANGE, INDIVIDUAL WEIGHT
Preheating Soldering Natural cooling
Operating Individual
Peak
temperature range weight
245°C –40 to +150°C 0.075 g 230°C 230°C 180°C Temperature 5s max. 150°C 60 to 120s 10 to 30s Time Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. (3/4) Please note that the contents may change without any prior notice due to reasons such as upgrading. 20210401 cmf_automotive_signal_act1210d_en.fm
