Datasheet MAX17270, MAX17271 (Maxim) - 2
| Hersteller | Maxim |
| Beschreibung | nanoPower Triple-Output, Single-Inductor, Multiple-Output (SIMO) Buck-Boost Regulator |
| Seiten / Seite | 37 / 2 — Simplified Application Circuit. MAX17270/1 |
| Dateiformat / Größe | PDF / 2.0 Mb |
| Dokumentensprache | Englisch |

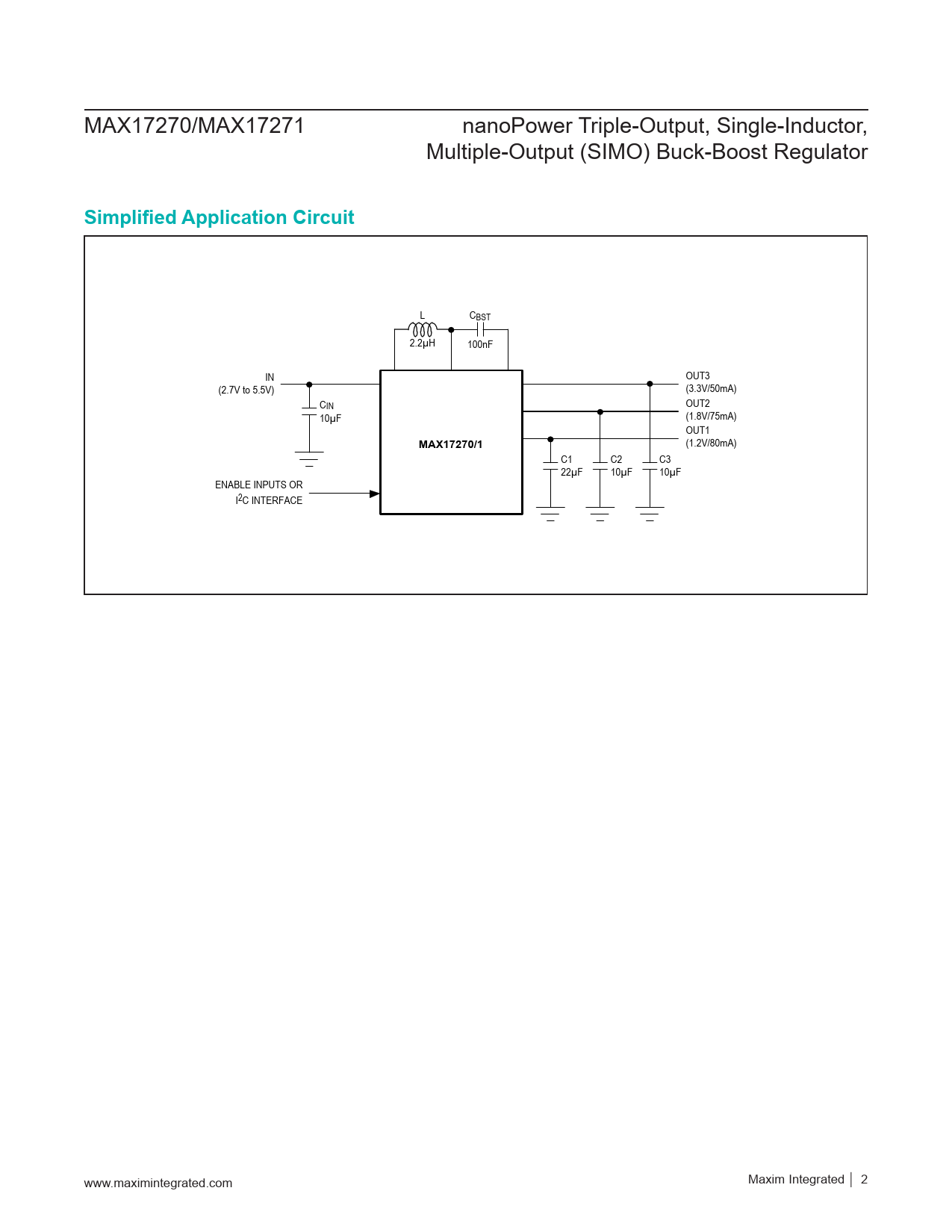

Simplified Application Circuit. MAX17270/1
Modelllinie für dieses Datenblatt
Textversion des Dokuments
MAX17270/MAX17271 nanoPower Triple-Output, Single-Inductor, Multiple-Output (SIMO) Buck-Boost Regulator
Simplified Application Circuit
L CBST 2.2µH 100nF IN OUT3 (2.7V to 5.5V) (3.3V/50mA) CIN OUT2 10µF (1.8V/75mA) OUT1
MAX17270/1
(1.2V/80mA) C1 C2 C3 22µF 10µF 10µF ENABLE INPUTS OR I2C INTERFACE www.maximintegrated.com Maxim Integrated │
2
Simplified Application Circuit
L CBST 2.2µH 100nF IN OUT3 (2.7V to 5.5V) (3.3V/50mA) CIN OUT2 10µF (1.8V/75mA) OUT1
MAX17270/1
(1.2V/80mA) C1 C2 C3 22µF 10µF 10µF ENABLE INPUTS OR I2C INTERFACE www.maximintegrated.com Maxim Integrated │
2
