Datasheet EPC21603 (Efficient Power Conversion) - 4
| Hersteller | Efficient Power Conversion |
| Beschreibung | 40 V, 10 A, LVDS Logic, eToF Laser Driver IC |
| Seiten / Seite | 9 / 4 — EPC21603 – 40 V, 10 A eToF. Laser Driver IC –. PRELIMINARY. Dynamic … |
| Dateiformat / Größe | PDF / 838 Kb |
| Dokumentensprache | Englisch |
EPC21603 – 40 V, 10 A eToF. Laser Driver IC –. PRELIMINARY. Dynamic Characteristics. Pinout Description
Modelllinie für dieses Datenblatt
Textversion des Dokuments

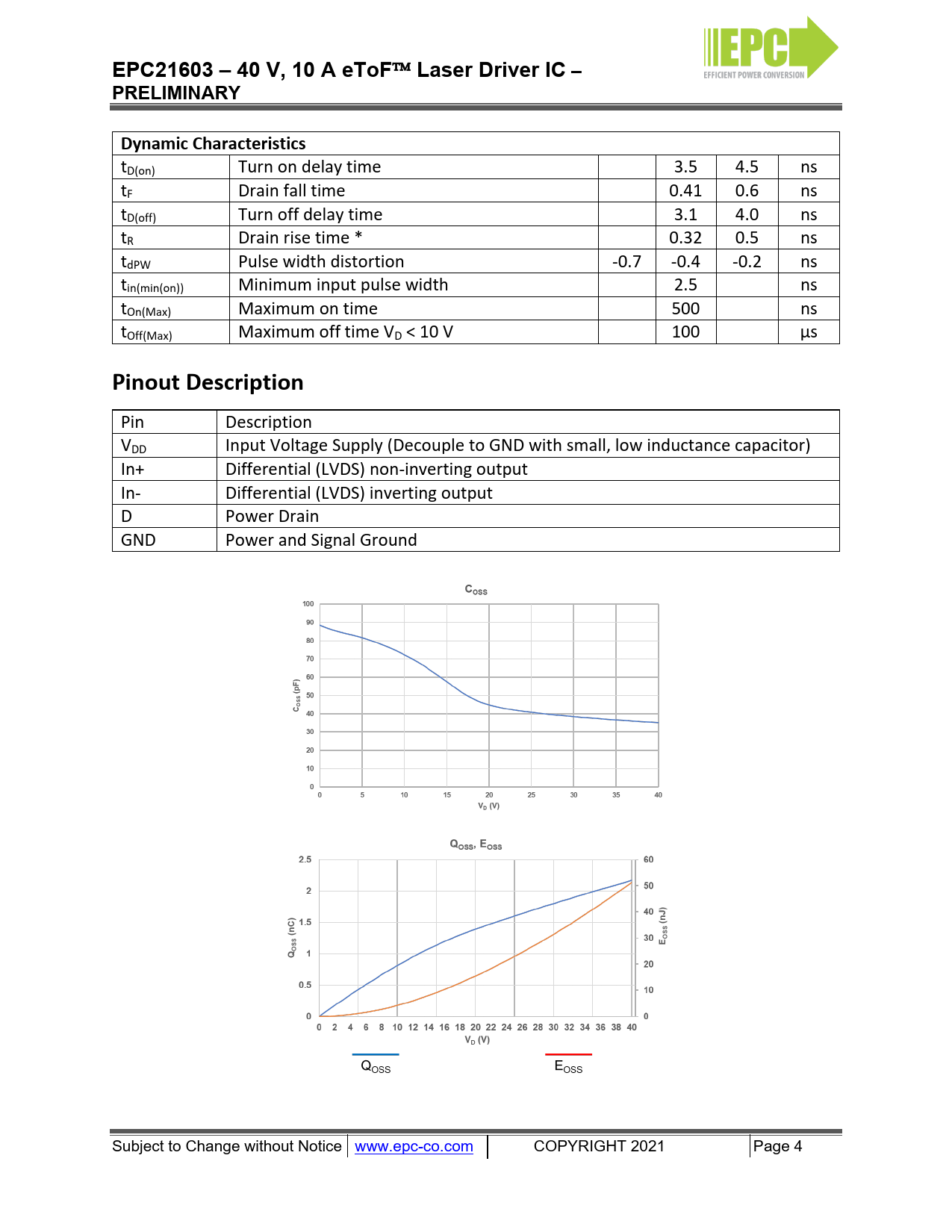

EPC21603 – 40 V, 10 A eToF
Laser Driver IC – PRELIMINARY Dynamic Characteristics
tD(on) Turn on delay time 3.5 4.5 ns tF Drain fall time 0.41 0.6 ns tD(off) Turn off delay time 3.1 4.0 ns tR Drain rise time * 0.32 0.5 ns tdPW Pulse width distortion -0.7 -0.4 -0.2 ns tin(min(on)) Minimum input pulse width 2.5 ns tOn(Max) Maximum on time 500 ns tOff(Max) Maximum off time VD < 10 V 100 µs
Pinout Description
Pin Description VDD Input Voltage Supply (Decouple to GND with smal , low inductance capacitor) In+ Differential (LVDS) non-inverting output In- Differential (LVDS) inverting output D Power Drain GND Power and Signal Ground
Subject to Change without Notice www.epc-co.com COPYRIGHT 2021 Page 4
Laser Driver IC – PRELIMINARY Dynamic Characteristics
tD(on) Turn on delay time 3.5 4.5 ns tF Drain fall time 0.41 0.6 ns tD(off) Turn off delay time 3.1 4.0 ns tR Drain rise time * 0.32 0.5 ns tdPW Pulse width distortion -0.7 -0.4 -0.2 ns tin(min(on)) Minimum input pulse width 2.5 ns tOn(Max) Maximum on time 500 ns tOff(Max) Maximum off time VD < 10 V 100 µs
Pinout Description
Pin Description VDD Input Voltage Supply (Decouple to GND with smal , low inductance capacitor) In+ Differential (LVDS) non-inverting output In- Differential (LVDS) inverting output D Power Drain GND Power and Signal Ground
Subject to Change without Notice www.epc-co.com COPYRIGHT 2021 Page 4
