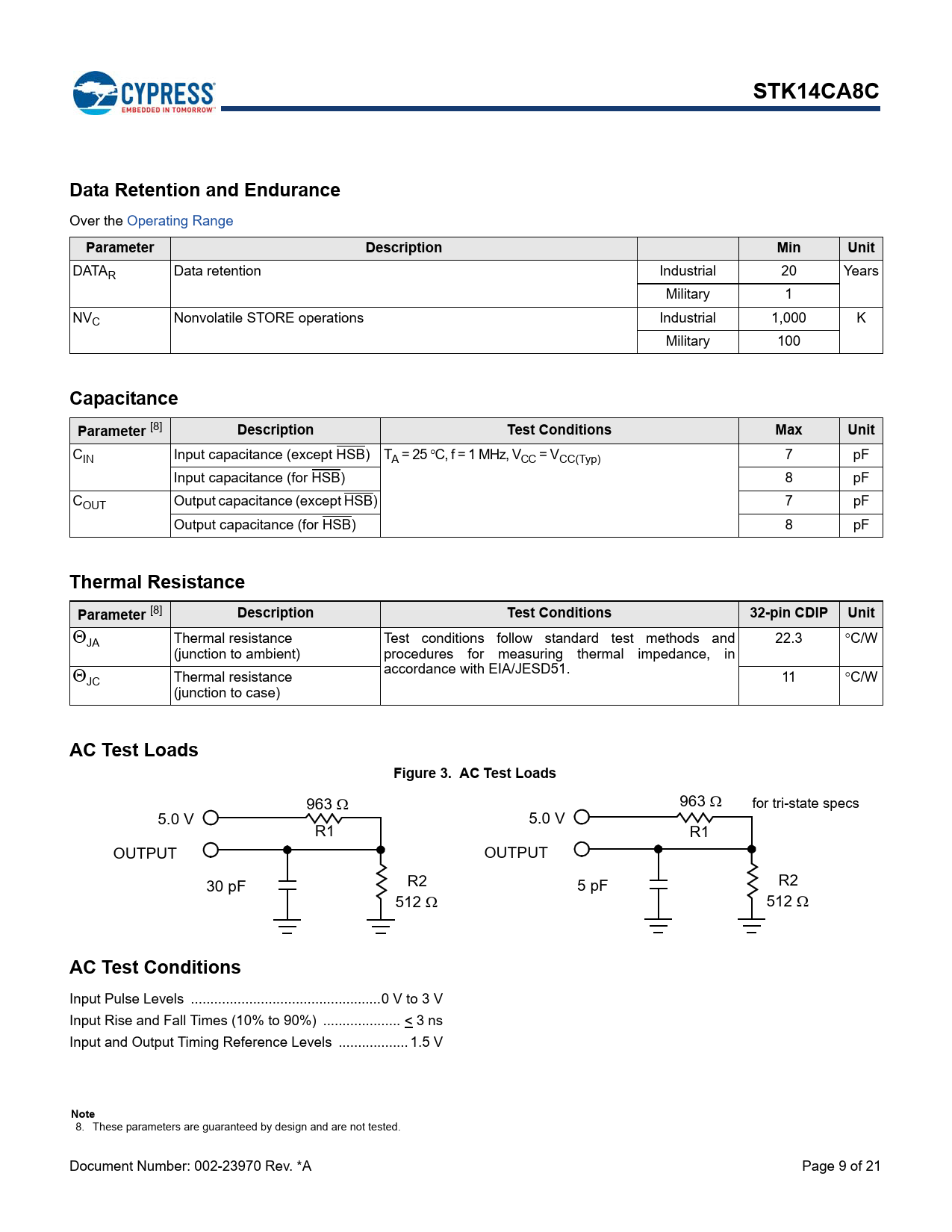

STK14CA8C Data Retention and Endurance
Over the Operating Range
Parameter Description Min Unit
DATAR Data retention Industrial 20 Years Military 1 NVC Nonvolatile STORE operations Industrial 1,000 K Military 100
Capacitance Parameter
[8]
Description Test Conditions Max Unit
CIN Input capacitance (except HSB) TA = 25 C, f = 1 MHz, VCC = VCC(Typ) 7 pF Input capacitance (for HSB) 8 pF COUT Output capacitance (except HSB) 7 pF Output capacitance (for HSB) 8 pF
Thermal Resistance Parameter
[8]
Description Test Conditions 32-pin CDIP Unit
JA Thermal resistance Test conditions follow standard test methods and 22.3 C/W (junction to ambient) procedures for measuring thermal impedance, in accordance with EIA/JESD51. JC Thermal resistance 11 C/W (junction to case)
AC Test Loads Figure 3. AC Test Loads
963 963 for tri-state specs 5.0 V 5.0 V R1 R1 OUTPUT OUTPUT 30 pF R2 5 pF R2 512 512
AC Test Conditions
Input Pulse Levels ...0 V to 3 V Input Rise and Fall Times (10% to 90%) .. < 3 ns Input and Output Timing Reference Levels .. 1.5 V
