Datasheet NSL-19M51 (Luna Innovations)
| Hersteller | Luna Innovations |
| Beschreibung | TO-18 Ceramic Package Photocells |
| Seiten / Seite | 2 / 1 — To-18 Ceramic Package Photocells. NSL-19M51. WWW.LUNAINC.COM. Precision – … |
| Dateiformat / Größe | PDF / 142 Kb |
| Dokumentensprache | Englisch |
To-18 Ceramic Package Photocells. NSL-19M51. WWW.LUNAINC.COM. Precision – Control – Results. DESCRIPTION. FEATURES. RELIABILITY
Modelllinie für dieses Datenblatt
Textversion des Dokuments

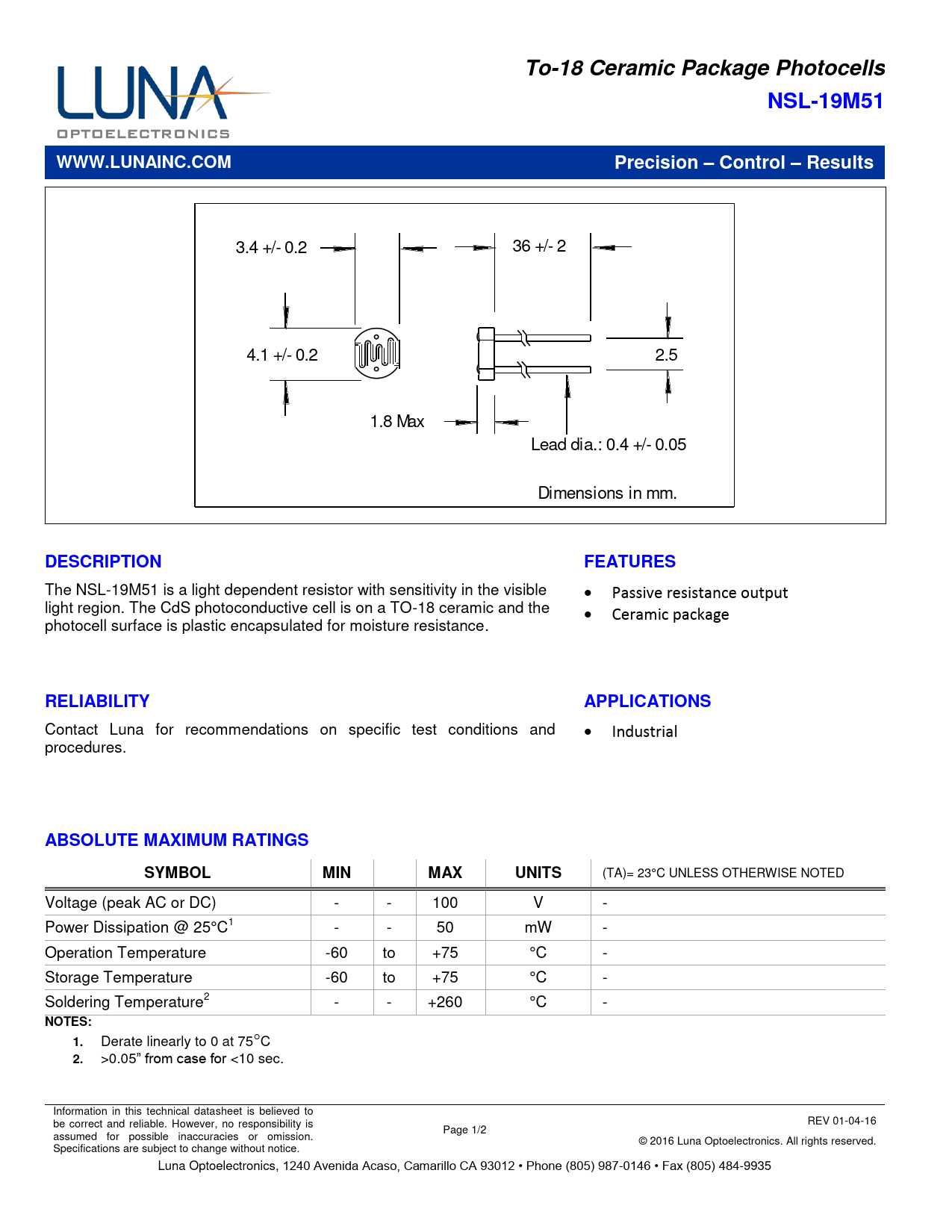

To-18 Ceramic Package Photocells NSL-19M51 WWW.LUNAINC.COM Precision – Control – Results
3.4 +/- 0.2 36 +/- 2 4.1 +/- 0.2 2.5 1.8 Max Lead dia.: 0.4 +/- 0.05 Dimensions in mm.
DESCRIPTION FEATURES
The NSL-19M51 is a light dependent resistor with sensitivity in the visible Passive resistance output light region. The CdS photoconductive cell is on a TO-18 ceramic and the Ceramic package photocell surface is plastic encapsulated for moisture resistance.
RELIABILITY APPLICATIONS
Contact Luna for recommendations on specific test conditions and Industrial procedures.
ABSOLUTE MAXIMUM RATINGS SYMBOL MIN MAX UNITS
(TA)= 23°C UNLESS OTHERWISE NOTED Voltage (peak AC or DC) - - 100 V - Power Dissipation @ 25°C1 - - 50 mW - Operation Temperature
-60 to +75 °C - Storage Temperature -60 to +75 °C - Soldering Temperature2 - - +260 °C -
NOTES: 1.
Derate linearly to 0 at 75C
2.
>0.05” from case for <10 sec. Information in this technical datasheet is believed to be correct and reliable. However, no responsibility is REV 01-04-16 Page 1/2 assumed for possible inaccuracies or omission. © 2016 Luna Optoelectronics. All rights reserved. Specifications are subject to change without notice. Luna Optoelectronics, 1240 Avenida Acaso, Camarillo CA 93012 • Phone (805) 987-0146 • Fax (805) 484-9935
